Arch and Radial Bricks

Find the right arch and radial special bricks for your project. Contact us to find out more.

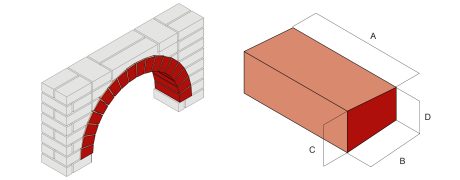

AR.1 Tapered Header

AR.1

AR.1.1

AR.1.2

AR.1.3

AR.1.4

A

215

215

215

215

B

102

102

102

102

C

75

75

75

75

D

59

64

66

69

Ideal span dimensions

910

1360

1810

2710

Ideal span no. of whole bricks

4

6

8

12

No. of bricks in semi circle

20 or 21

28 or 29

36 or 37

53 or 54

Download related documents

Preparing download ... Download all (4)

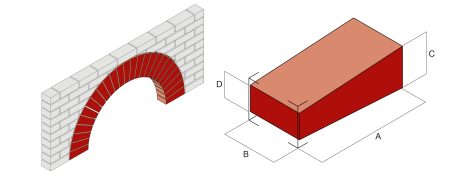

AR.2 Tapered Stretcher

AR.2

AR.2.1

AR.2.2

AR.2.3

AR.2.4

A

215

215

215

215

B

102

102

102

102

C

75

75

75

75

D

48

55

58

63

Ideal span dimensions

910

1360

1810

2710

Ideal span no. of whole bricks

4

6

8

12

No. of bricks in semi circle

25

33

41

58

Download related documents

Preparing download ... Download all (4)

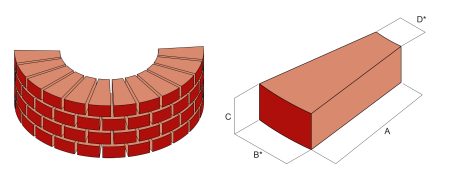

RD.1 Radial Header

RD.1

RD.1.1

RD.1.2

RD.1.3

RD.1.4

RD.1.5

RD.1.6

A

215

215

215

215

215

215

B*

108

108

108

108

108

108

C

65

65

65

65

65

65

D

52

70

80

89

97

103

Inner Radius - Outer

450

675

900

1350

2250

5400

Inner Radius - Inner

235

460

685

1135

2035

5185

No. of bricks in quadrant

6

9

12

18

30

72

* Denotes segmental length

Download related documents

Preparing download ... Download all (6)

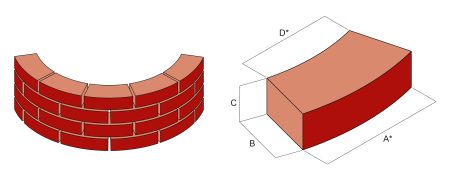

RD.2 Radial Stretcher

RD.2†

RD.2.1

RD.2.2

RD.2.3

RD.2.4

RD.2.5

RD.2.6

A

226

226

226

226

226

226

B

102

102

102

102

102

102

C

65

65

65

65

65

65

D

172

190

199

208

215

221

Ideal Outer Radius

450

675

900

1350

2250

5400

No. of bricks in quadrant

3

6

9

15

36

† Back face may be flat or concave

Download related documents

Preparing download ... Download all (6)
