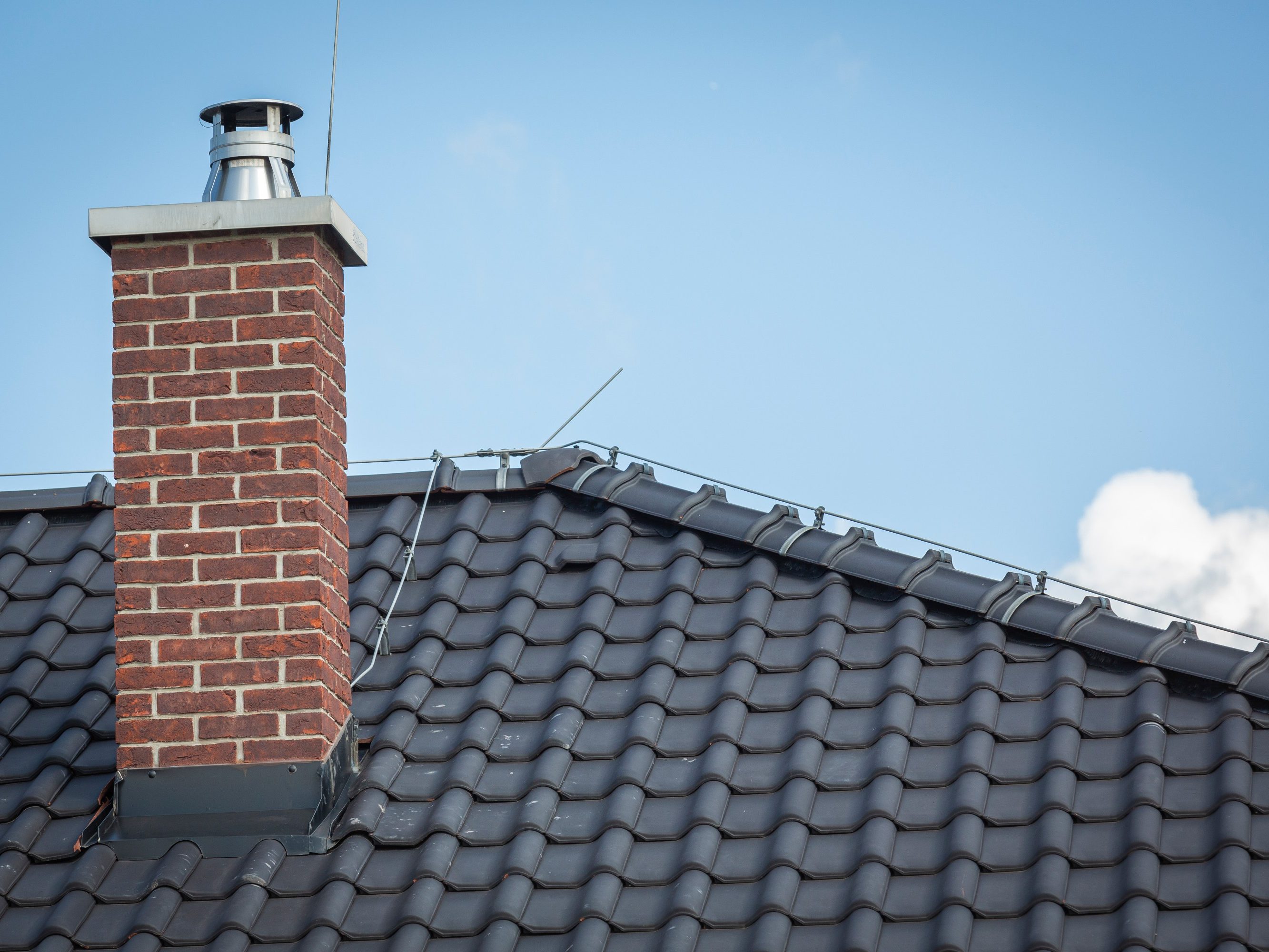

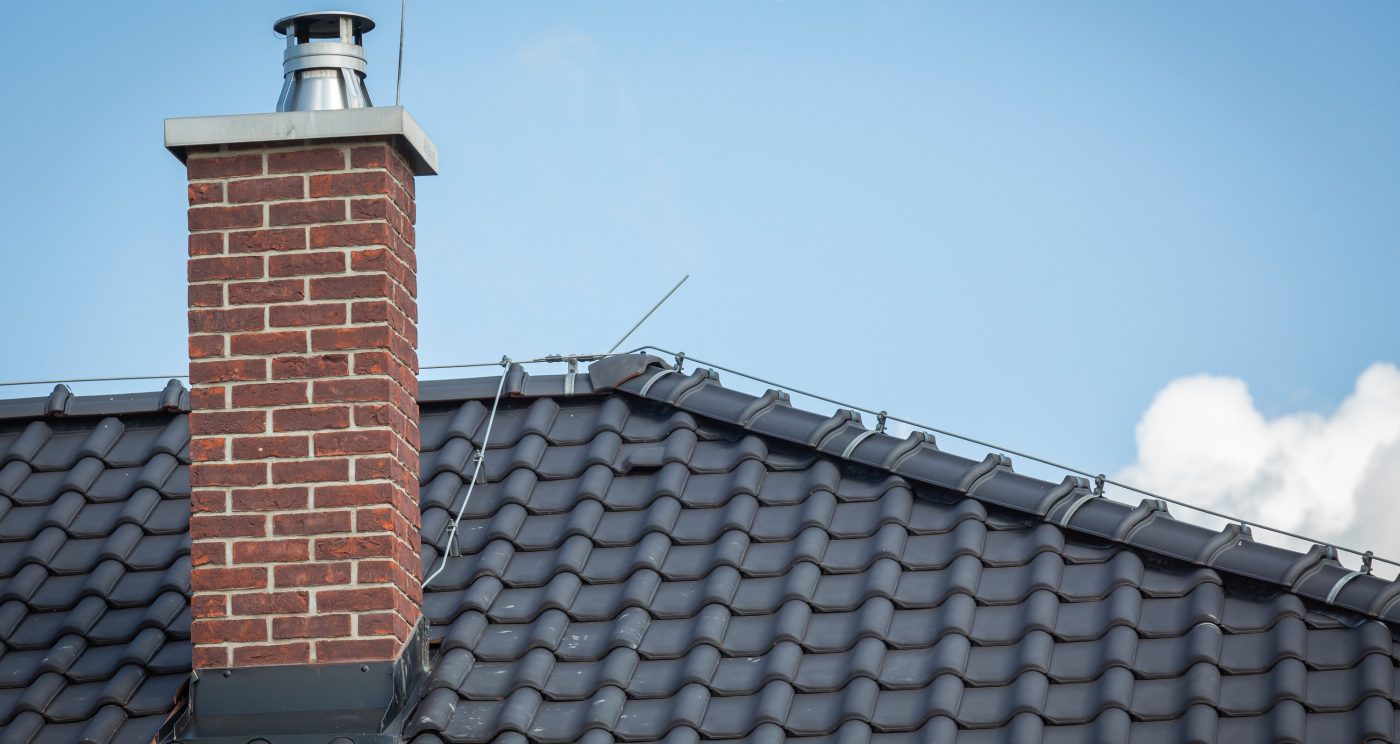

Brick clad chimney on grey tiled roof

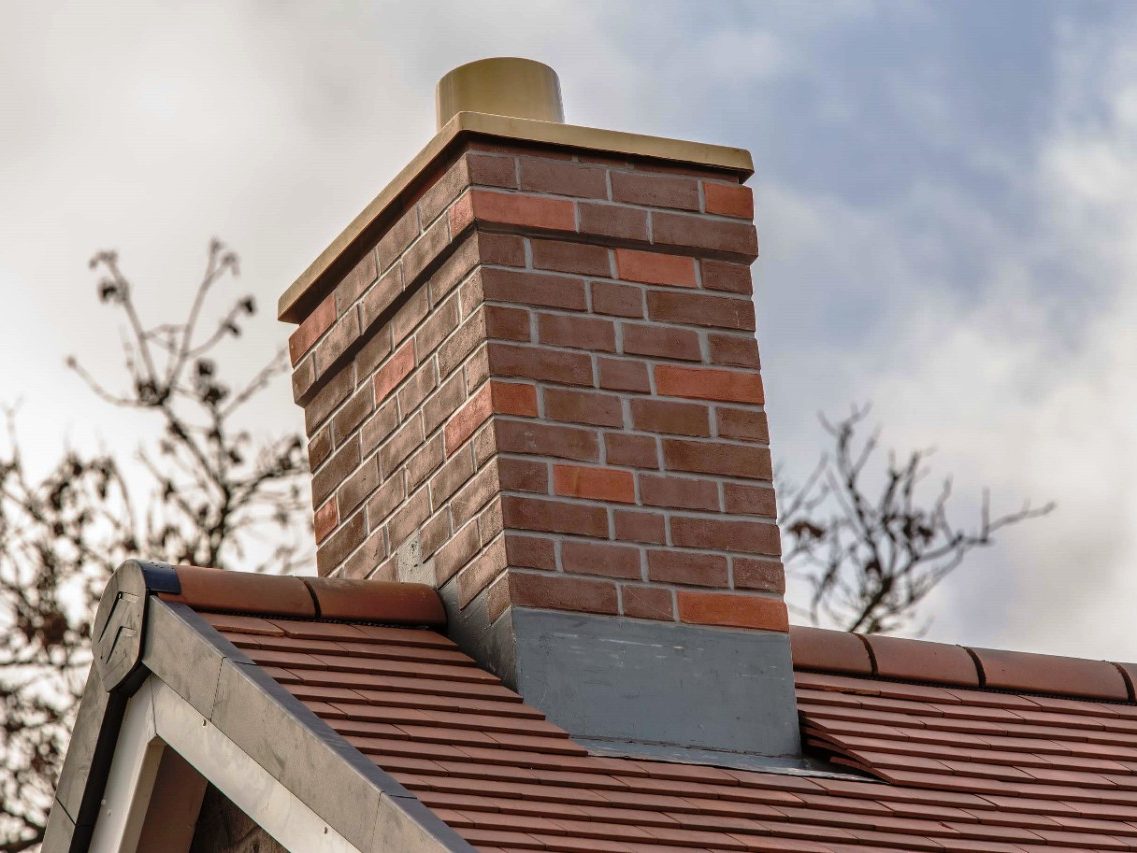

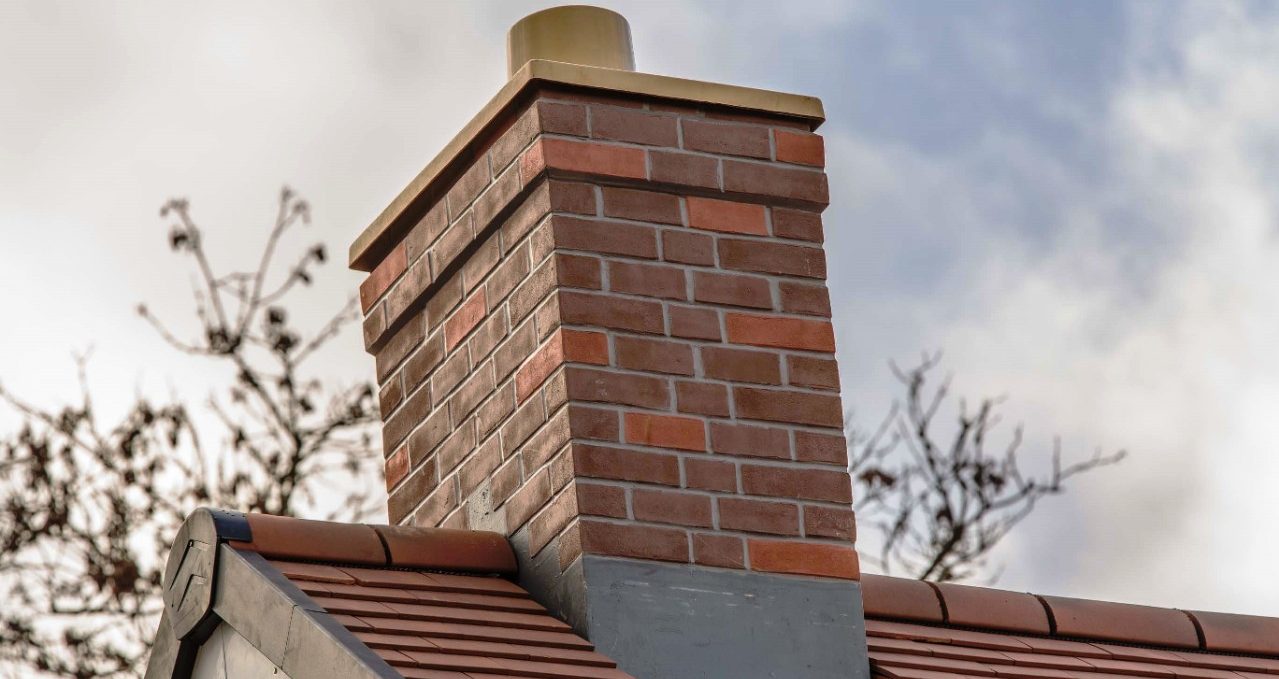

GRP prefabricated chimney on red tiled roof

Prefabricated Chimneys

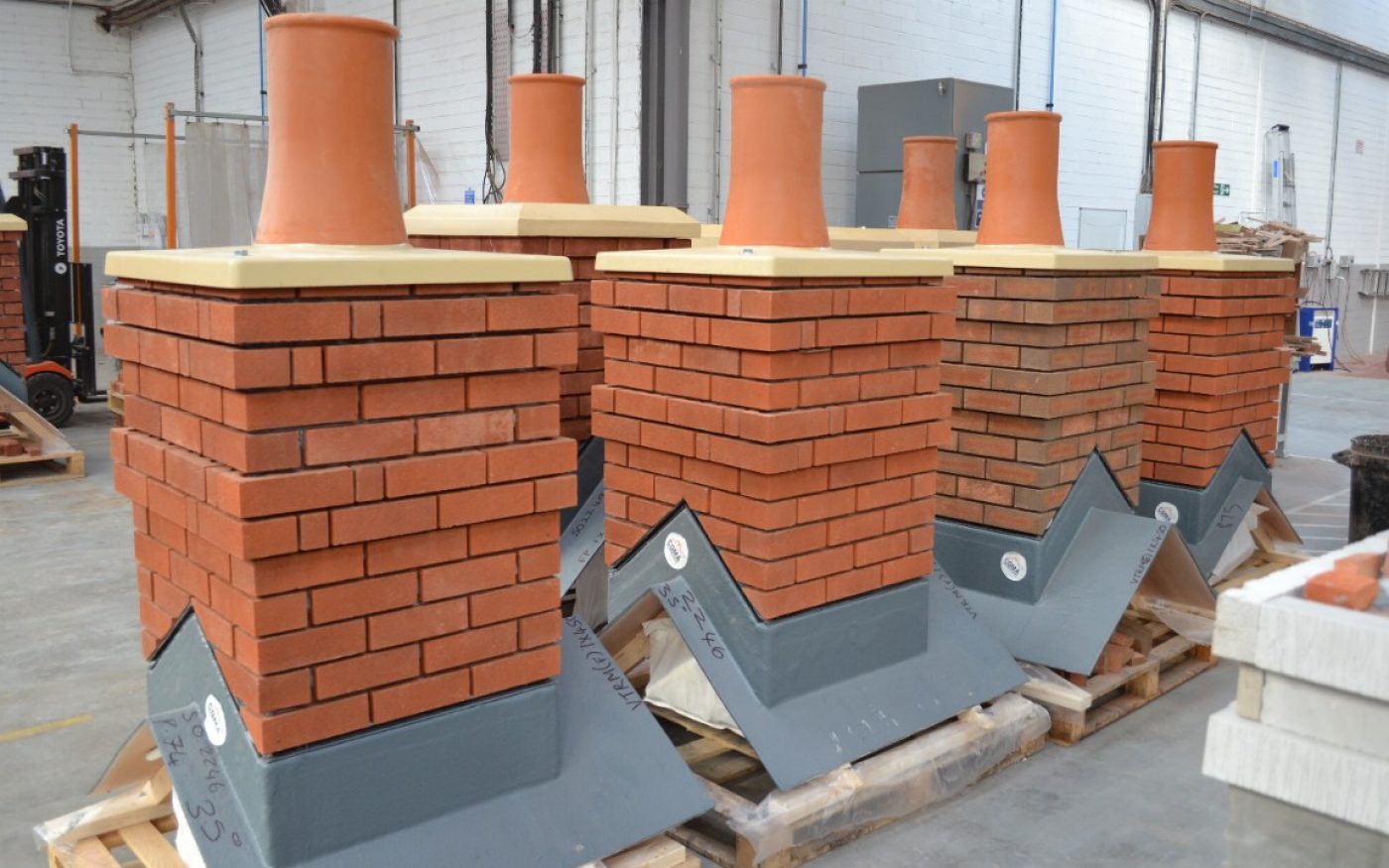

Quick to acquire, simple to install and cost-effective, our brick clad and GRP chimney solutions are designed to meet the visual and structural requirements of your housebuilding project, no matter the scale. Prefabricated in brick, we deliver our chimneys ready for pointing with lifting eyes pre-installed.

Our chimneys are available in any Wienerberger brick, guaranteeing a perfect match with the rest of the build. Our manufacturing is carried out in factory conditions to the highest standards of quality control. Contact us today to find out more.

10 year warranty

Our chimney products are supplied with a 10-year product warranty (please request full terms and conditions). They have undergone extensive testing by BBA and Lucideon to standards approved by NHBC, and our manufacturing partner, Brickfab, is a full member of the Construction Glassfibre Manufacturers Association; our chimneys have both BBA and CGMA accreditation as a result.

Quick to lift, easy install

Supplied with removable/reusable lifting eyes for a simple crane lift to the roof. Lead fitting channels allow for a traditionally-styled lead dressing around the chimney.

Bespoke when required

Our chimneys can be produced to any size and shape; using the latest CAD technology our designers can work to your specifications to design your chimney.

Perfect pots

Closed-top terracotta clay or GRP pots are available in different heights, in single or multi-pot configurations, in a range of colours. Our chimneys can be supplied with a closed terracotta clay pot in either 300mm or 450mm height. Alternative pot styles and heights can be specified on request.

In position

The chimney sits on the roof trusses, a few layers of felt and is then screwed and sealed in place. Reinforced trusses may be required.

Live class chimney options

Our chimneys can be specified for Live Class 1 (for wood burning closed appliances) or Live Class 2 (for gas appliances). Please contact us for further details and information.

Finishing touch

Can be manufactured in any brick or stone finish, or prepared for render, in any size, shape and style. Our prefabricated chimneys are available as standard for 30°, 35°, 40° and 45° roof pitches and for mid-ridge, mono-pitch, gable ladder and gable end roof positions. Any roof position and pitch can be produced to order.

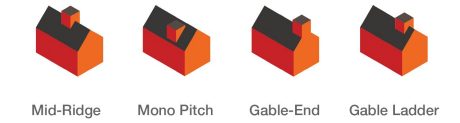

Diagram of chimney positions; mid-ridge, mono pitch, gable-end and gable ladder

Brickclad chimneys

Brick clad chimneys can be specified for Live Class 1 (for wood burning closed appliances) or Live Class 2 (for gas appliances). Our brick clad chimneys can be supplied with a closed terracotta clay pot in either 300mm or 450mm height. Available in single or multi-pot configurations, with other colours available. Alternative pot styles and heights can be specified on request. We can provide design advice and technical detailing, as well as bespoke designs if required. Contact us now to find out more.

GRP chimneys

These lightweight prefabricated Glass Reinforced Plastic (GRP) chimneys require little to no reinforcement in situ, with removable lifting eyes for a quick and easy lift onto the roof. The chimney sits on three layers of roof felt and is screwed and sealed in place. The Fast Lead System™ of pre-leading aids simple and economical installation, greatly reducing lead work on site. Our chimneys are 100% GRP moulded in a factory controlled environment ensuring perfect consistency for any site development. Each GRP chimney is completely sealed and 100% waterproof. Being maintenance free, our developer chimney is a true ‘fit and forget’ product.





Chimney dimensions

Wienerberger produces a large range of standard sizes, finishes and roof positions, our brick clad chimney range should be suitable for the vast majority of housebuilding schemes. However, if you require something a little different we can produce bespoke chimney to suit your requirements.

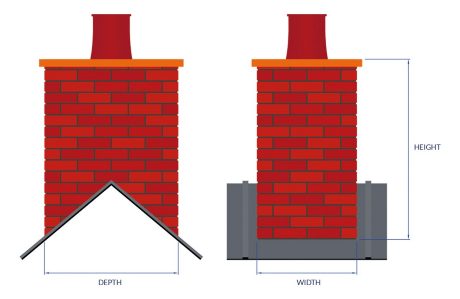

Diagram of chimney width, depth and height


Avon

Eden

Derwent

Wye

Frome

Severn

Thames

Width

440

440

552

552

665

777

665

Depth

552

777

552

777

665

777

890

Height

900

1125

1125

1125

1125

1125

1200

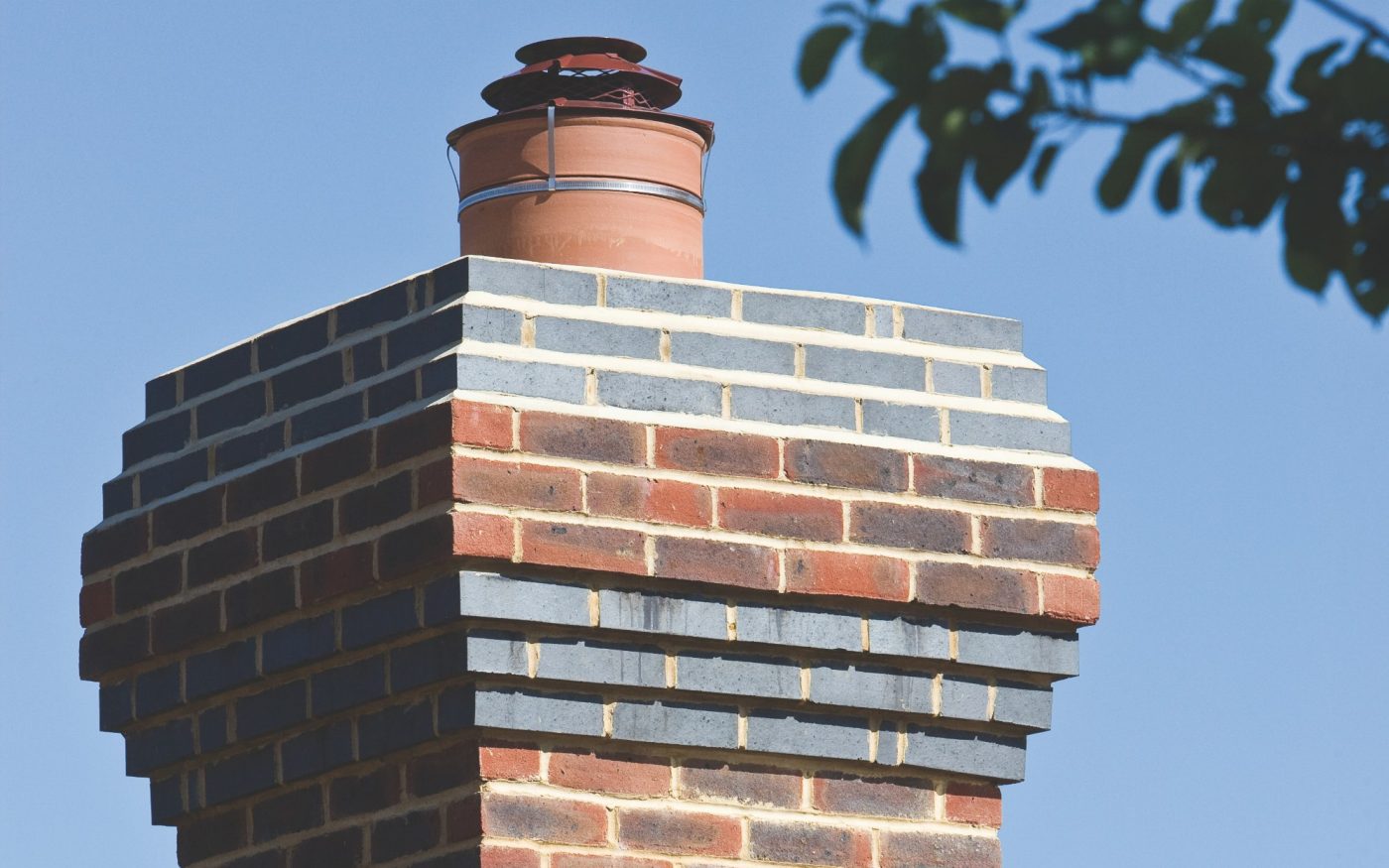

Corbel detailing and render options

Our chimneys can be manufactured using bricks from our entire range, they are supplied ready for pointing on site for a perfect match. Chimneys can be supplied prepared for rendering on site to ensure a perfect consistency on the build.

Brickwork and corbel detail can be produced to any specification and style; a selection of popular details are shown below but we can produce bespoke detailing to suit your requirements.

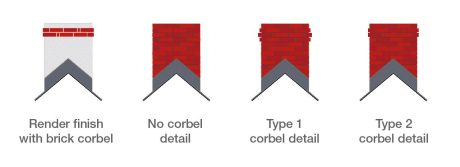

Diagram of different chimney corbel detail options

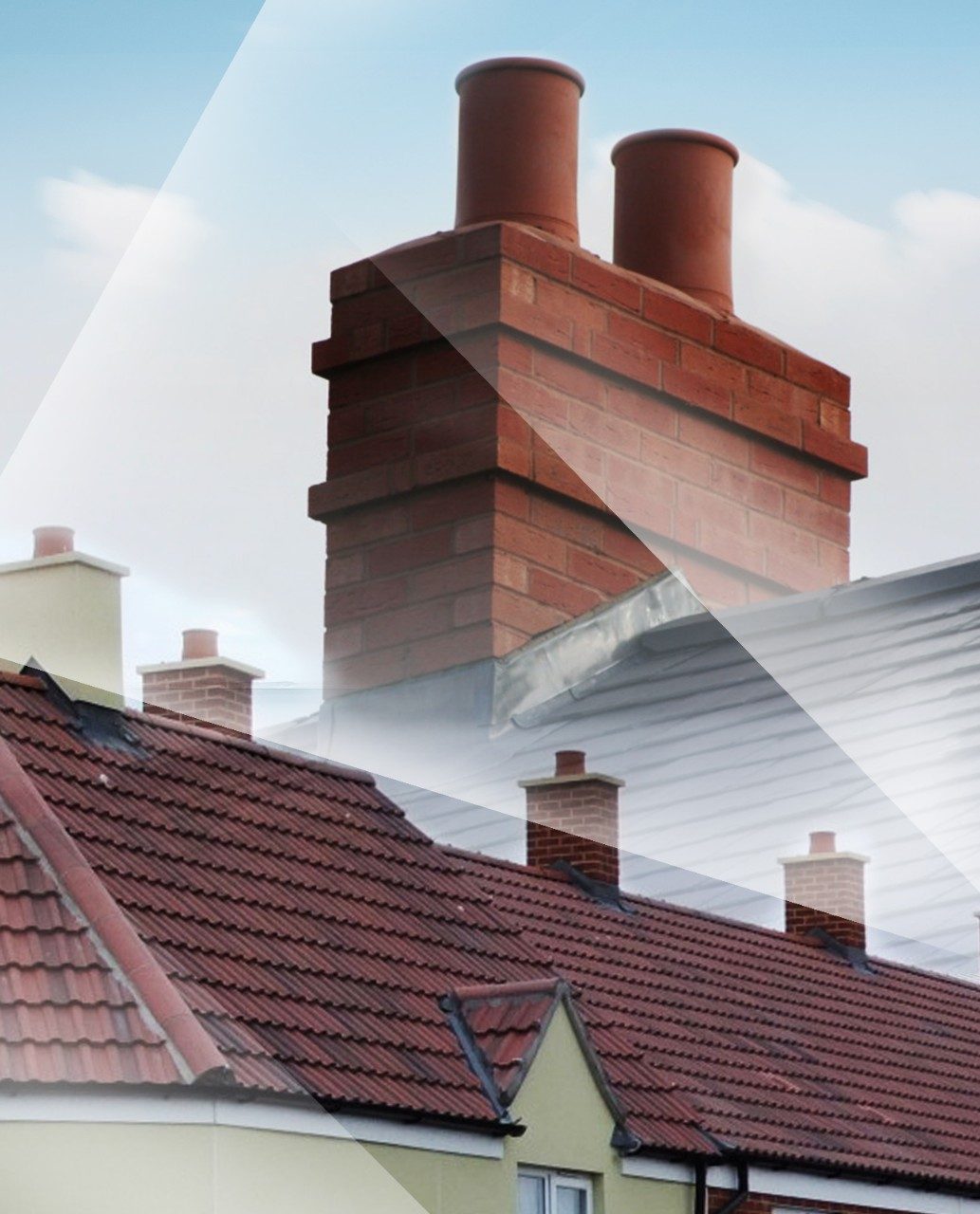

Brick chimney and chimney pots on roof
