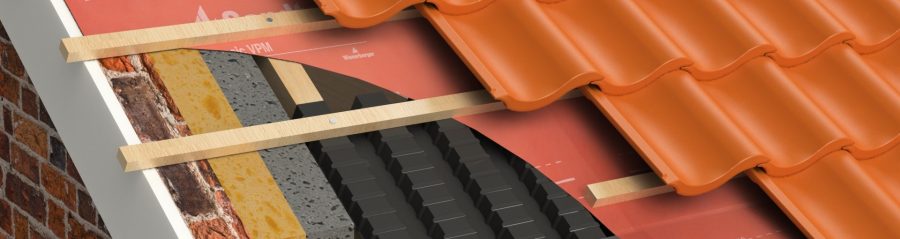

An illustration of eaves ventilation being installed.

An illustration of underlay being displayed and layed.

Roof accessories and systems

Roof accessories and systems

A roof tile is a component that operates within the roof to form a system. At Wienerberger, we offer more than just roof tiles. We can offer the complete system, with a comprehensive range of roof accessories available to satisfy needs such as dry roofing and ventilation.

As a leading industry innovator, our Sandtoft brand has pioneered many of the advances in roof system design in recent years. Our forward-thinking approach has been to create outstanding products that offer the highest possible aesthetics and performance at an affordable price. Our experts develop and rigorously test products and materials using our in-house wind and rain tunnel, which can simulate the most severe weather conditions ever likely to be experienced in the UK.

As with all Sandtoft products, our roofing systems are carefully designed and tested using an in-depth and practical knowledge of roofing, to ensure they provide reliable, long lasting, secure and durable roofs and more consistent standards of workmanship.

Below is a diagram of where you would use the roof systems and accessories on your roof.

A illustrative drawing of the different roof accessory components that are used on roofs.

Roof system selector

Roof system selector

Our Roof System Selector brochure includes our entire roof tile portfolio along with compatible tile shapes and fittings, ridges, dry roofing systems and ventilation options, all in one handy guide.

Click here to download the Roof System Selector brochure.

Dry roofing

Dry roofing

Mortar failure is one of the most common roofing defects and can often lead to rain penetration and damage to the roof structure, or even building fabric. For mortar to remain effective, regular maintenance is required during the lifespan of a building, which comes at a cost.

Sandtoft dry roofing systems are quick and easy to install. Maintenance is reduced to little more than periodic inspection, with all the traditional problems of mortar bedded fittings being avoided

When using our dry roofing products, the result is longer lasting, secure, durable roofs, and a guarantee of consistent standards of workmanship.

All our systems have been designed to combine performance, aesthetics and ease of use to create dry fix systems that herald a real step forward from traditional mortar bedding. They can be used in all weathers and avoid the need for lifting of wet mortar to the roof. All materials come in kit form for ease of ordering.

Dry verge systems

Dry verge systems

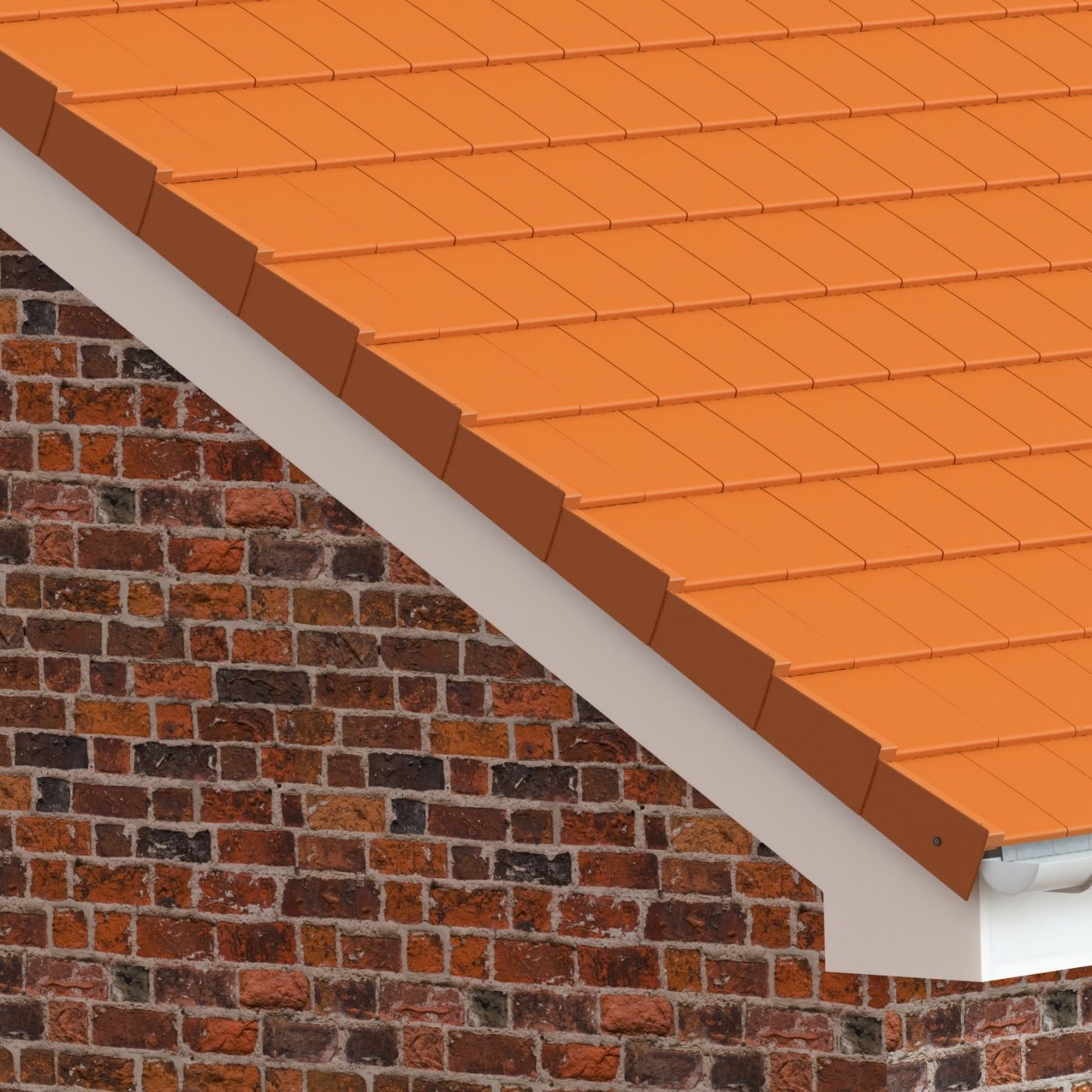

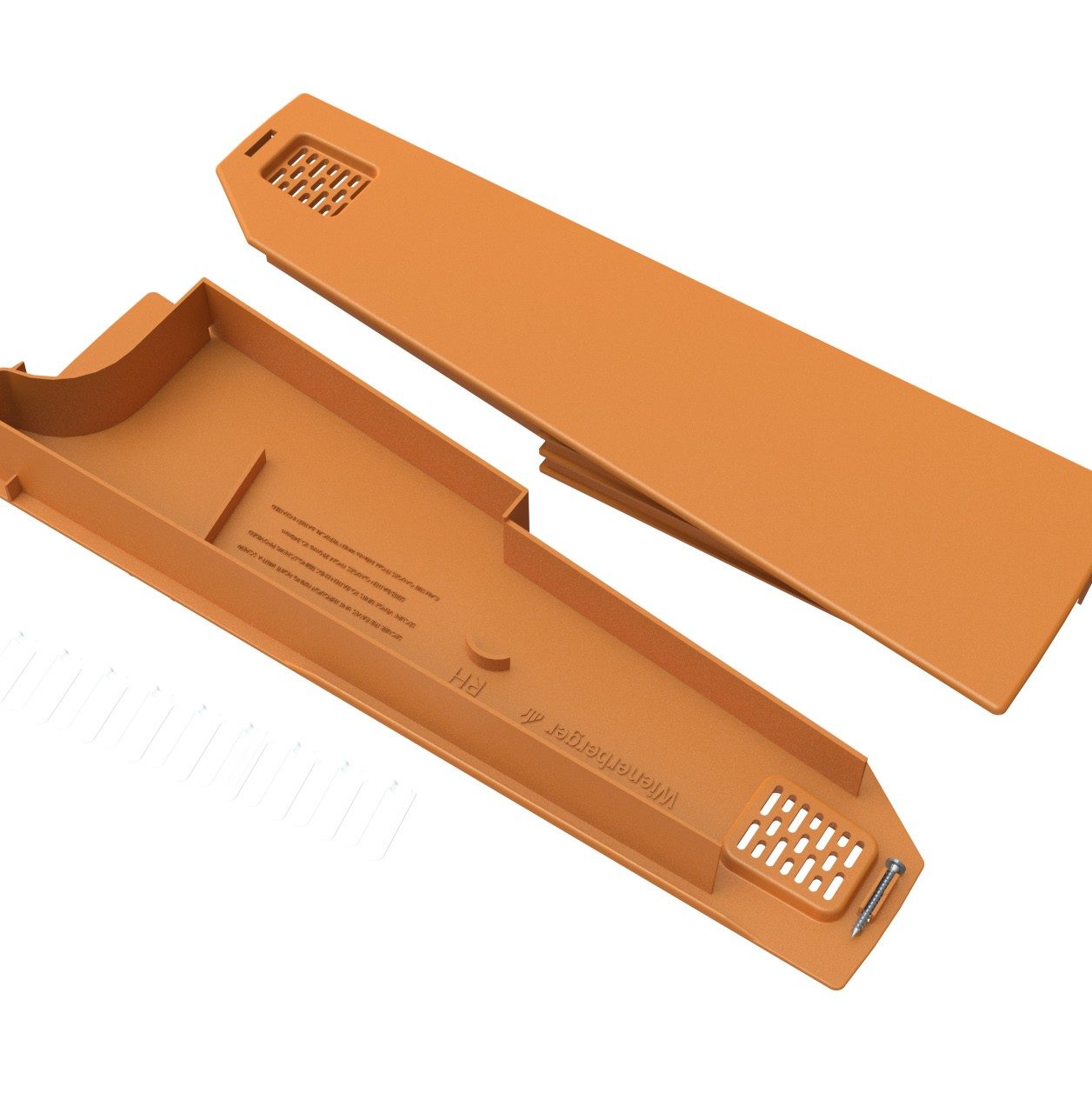

Sandtoft Dry Verge Systems are easy-to-use and provide a neat, secure and mortar-less finish at roof verges. Each system comprises verge units to suit left and right-hand verges, available in colours to complement the roof tiles.

Eaves closures secure the tail of the first verge unit and are designed to close the gap to prevent birds and rodents getting into the roof space.

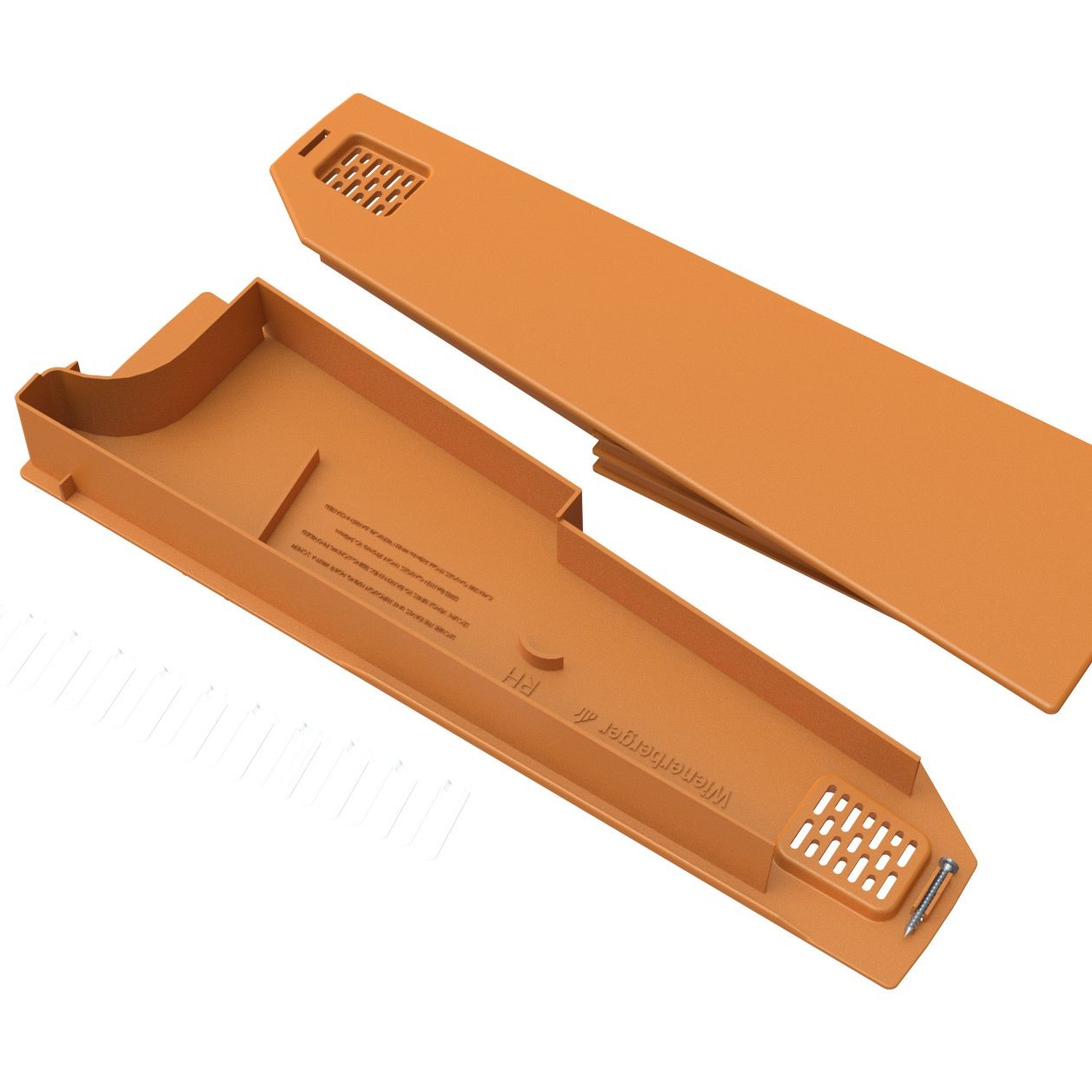

We offer dry verge systems to suit different tile types – Multiverge, TLE Dry Verge, Medium Format Dry Verge and Slate Verge systems.

To find out more see pages 133 and 134 of the Roof System Selector brochure.

Suits: Most large format clay and concrete tiles.
Colours: Light/Dark Grey, Terracotta Red/Rustic, Brown, Natural Red, Tuscan, Flanders, Antique Slate.

Suits: New Cassius, New Rivius, TLE, Dual TLE.
Colours: Natural Red, Tuscan, Flanders, Antique Slate, Rustic, Brown, Dark Grey, Heather.

Suits: 20/20, Balmoral.
Colours: Natural Red, Tuscan, Flanders, Antique Slate.

Suits: Britlock Slates and BritSlate.
Colours: Dark Grey, Antique Slate.

Suits: Vauban, Actua, Modula.
Colours: Red, Black.

Dry ridge systems

Dry ridge systems

Mortar failure is one of the most common roof defects and can often lead to rain penetration and damage to the roof structure, or even building fabric. For mortar to remain effective, regular maintenance is required, which comes at a cost during the lifespan of a building. Wienerberger's range of roofing systems has been designed to eliminate these defects and significantly reduce ongoing maintenance costs.

See below for our range of Dry ridge systems to complete your roofing needs.

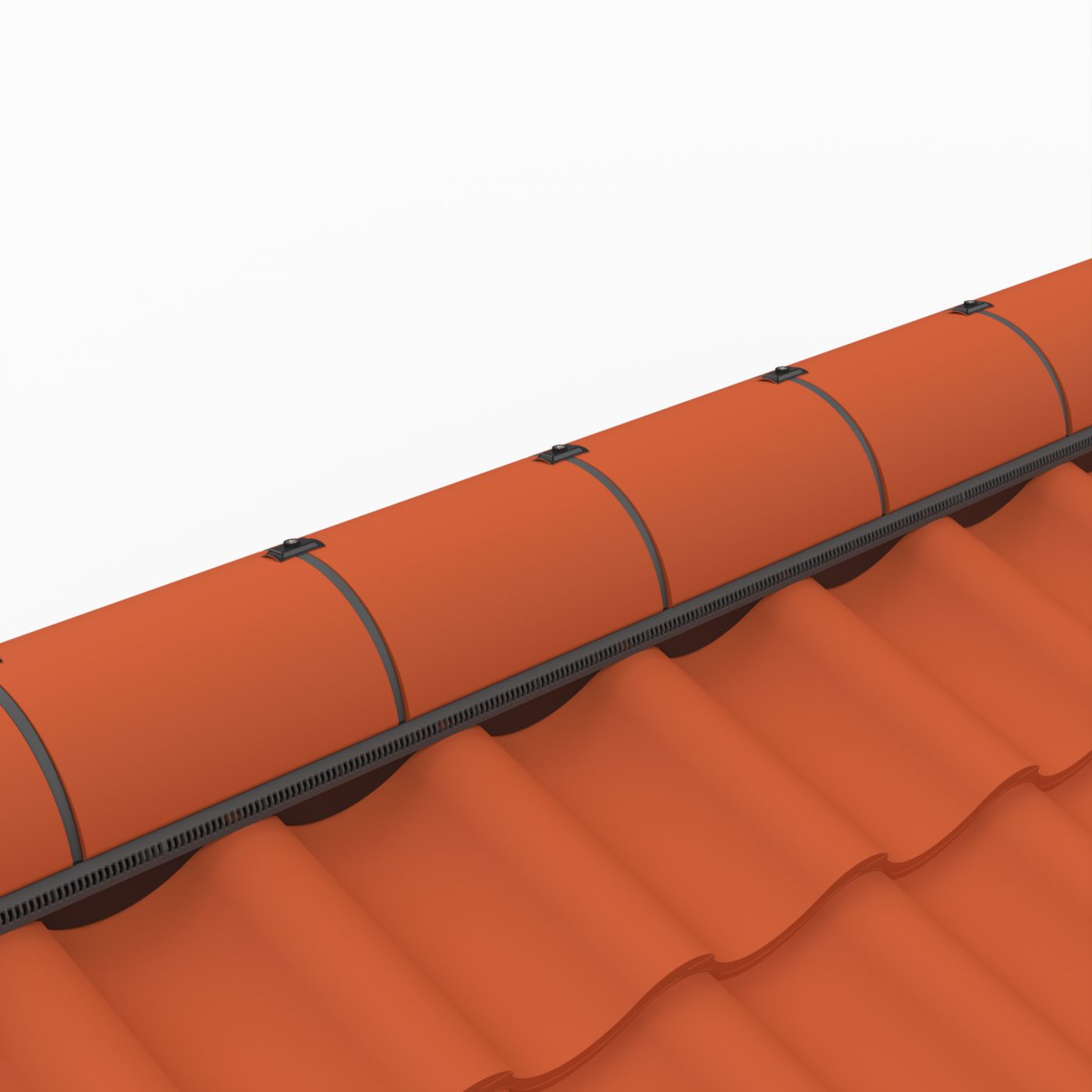

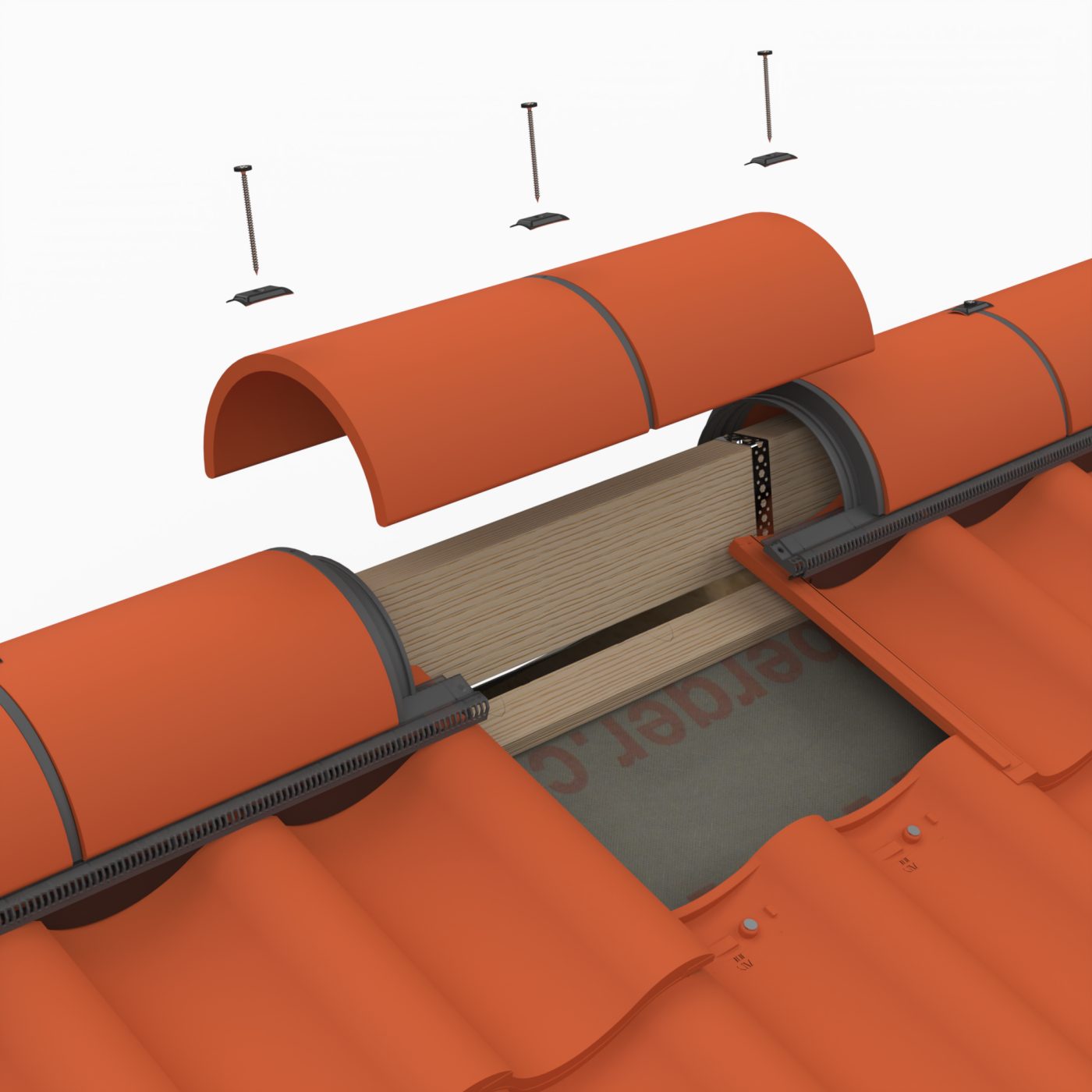

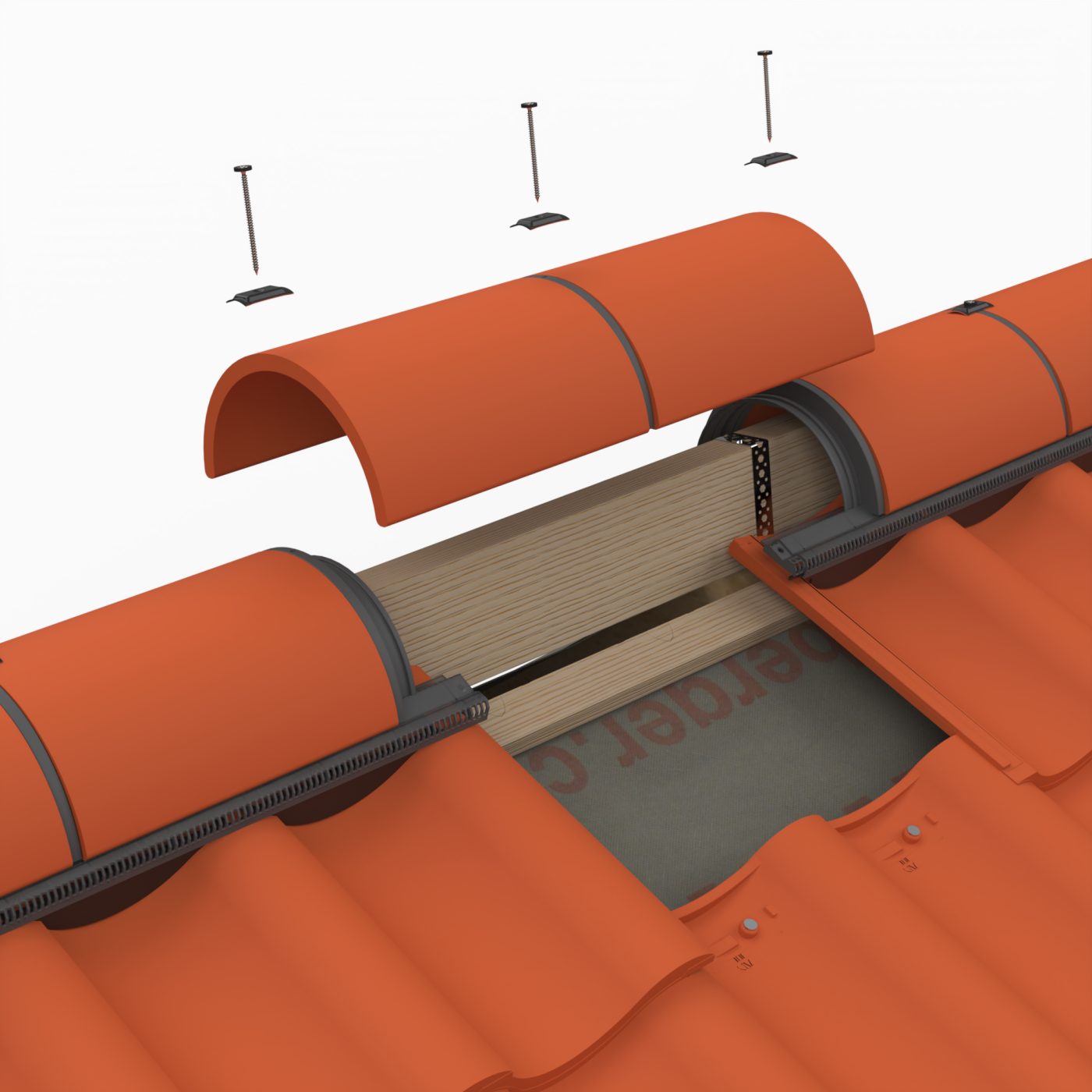

Our Profile Ridge system has been designed to provide mechanically fixed, continuous ventilated ridge detail that is aesthetically traditional in appearance. It incorporates ventilation strips to support the ridges and provide high level ventilation. To complete the system and to enhance aesthetics, profile fillers are supplied for profiled tile types. The fillers click into the ventilation strips and both are marked to ensure correct orientation.

The Sandtoft Roll Ridge system is an extremely quick roll out system that uses the minimum of components. The system comprises a ventilated 5m ridge roll, batten straps to secure the ridge timber and ridge union with fixings. It is suitable for use with most clay, concrete tiles and slates (except sandfaced tiles).

The Profile Mono Ridge system provides an efficient seal between each ridge, giving the appearance of a 10mm mortar joint. To complete the system and to enhance aesthetics, profile fillers are supplied for profiled tile types. The Mono Ridges are secured to the wall or fascia using nails or screws.

The Multiversal Ridge and Hip system is a low cost, easy and quick to install system providing a secure and mortar-free fix solution at ridge and hip. The unique feature of Multiversal is the ridge union – unlike other universal systems Multiversal uses a rigid union, rather than the more traditional type that the roofer has to bend to fit the shape of the ridge tile.

To find out more about our dry ridge systems, see pages 126 to 128 and 141 of the Roof System Selector brochure.

Dry hip systems

Dry hip systems

Our dry hip systems have been designed as an easy to install dry fix solution to complement the dry ridge systems.

Find out more about dry hip systems on pages 129 and 132 of the Roof System Selector brochure.

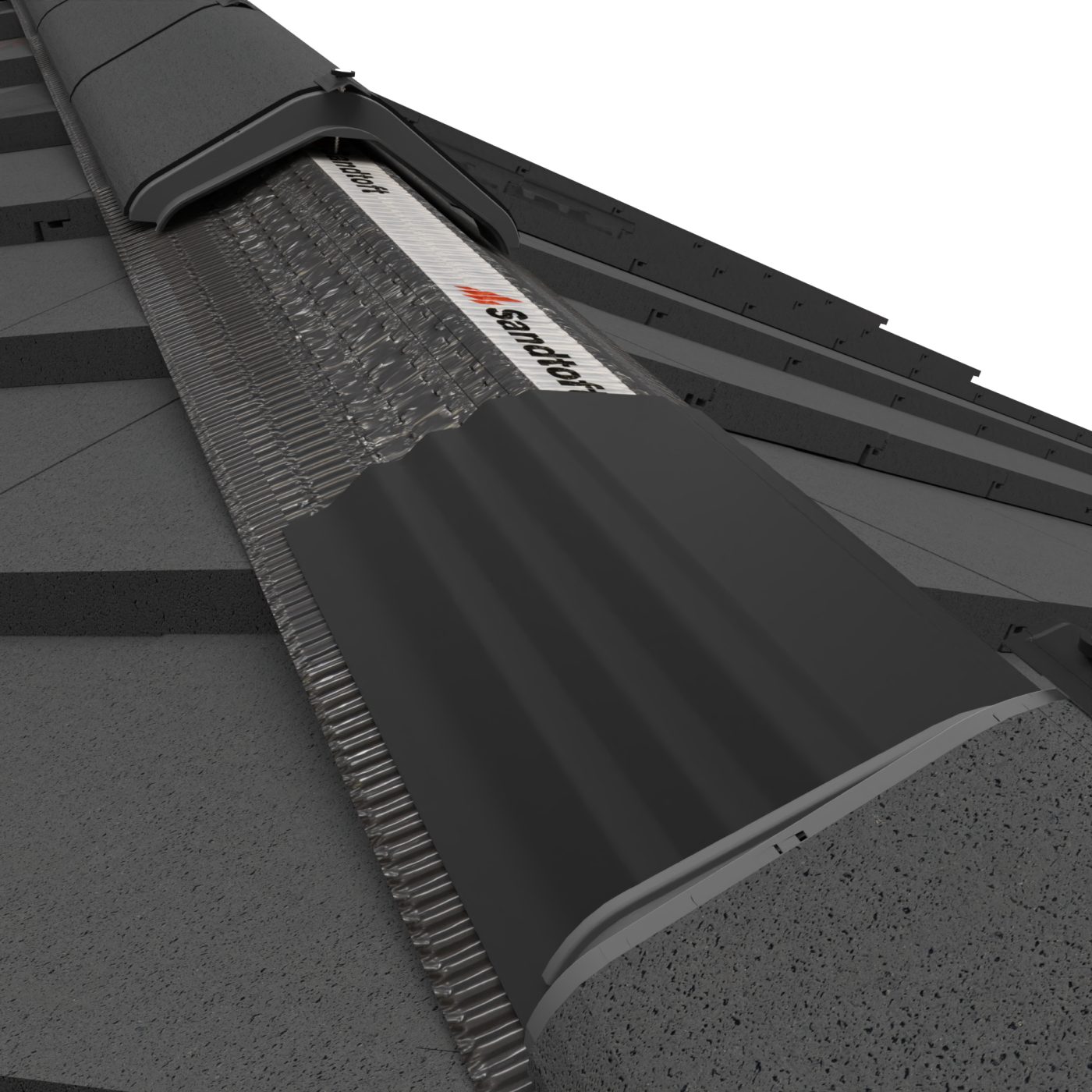

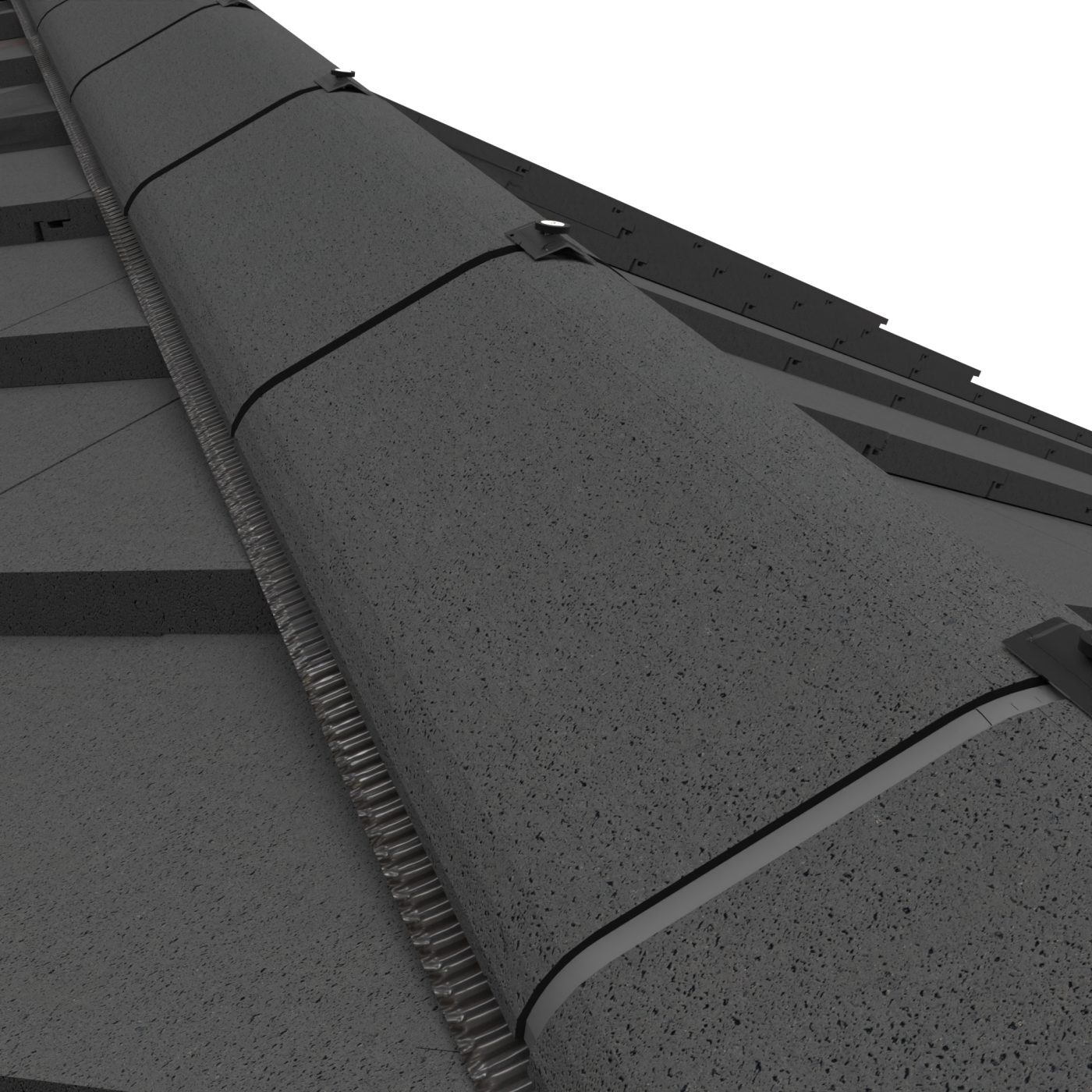

The Sandtoft Roll Hip system is an extremely quick rollout system, comprising a ventilated hip roll to seal the junction between roof elevations and trays to support the hip ridges.

See page 129 in the Roof System Selector brochure.

The BritLock mitred hip provides a neat and secure hip detail without the need for hip tiles. Slates, slate-and-a-half slates or double slates are cut to form a neat junction.

See page 132 in the Roof System Selector brochure.

Roof tile ventilation

Roof ventilation

The most efficient and effective method of controlling condensation is to provide natural roof space ventilation and to mechanically extract high levels of water vapour at the source.

The Wienerberger Sandtoft range of ventilation products provides cost effective and discreet roof space ventilation.

Eaves ventilation

Eaves ventilation

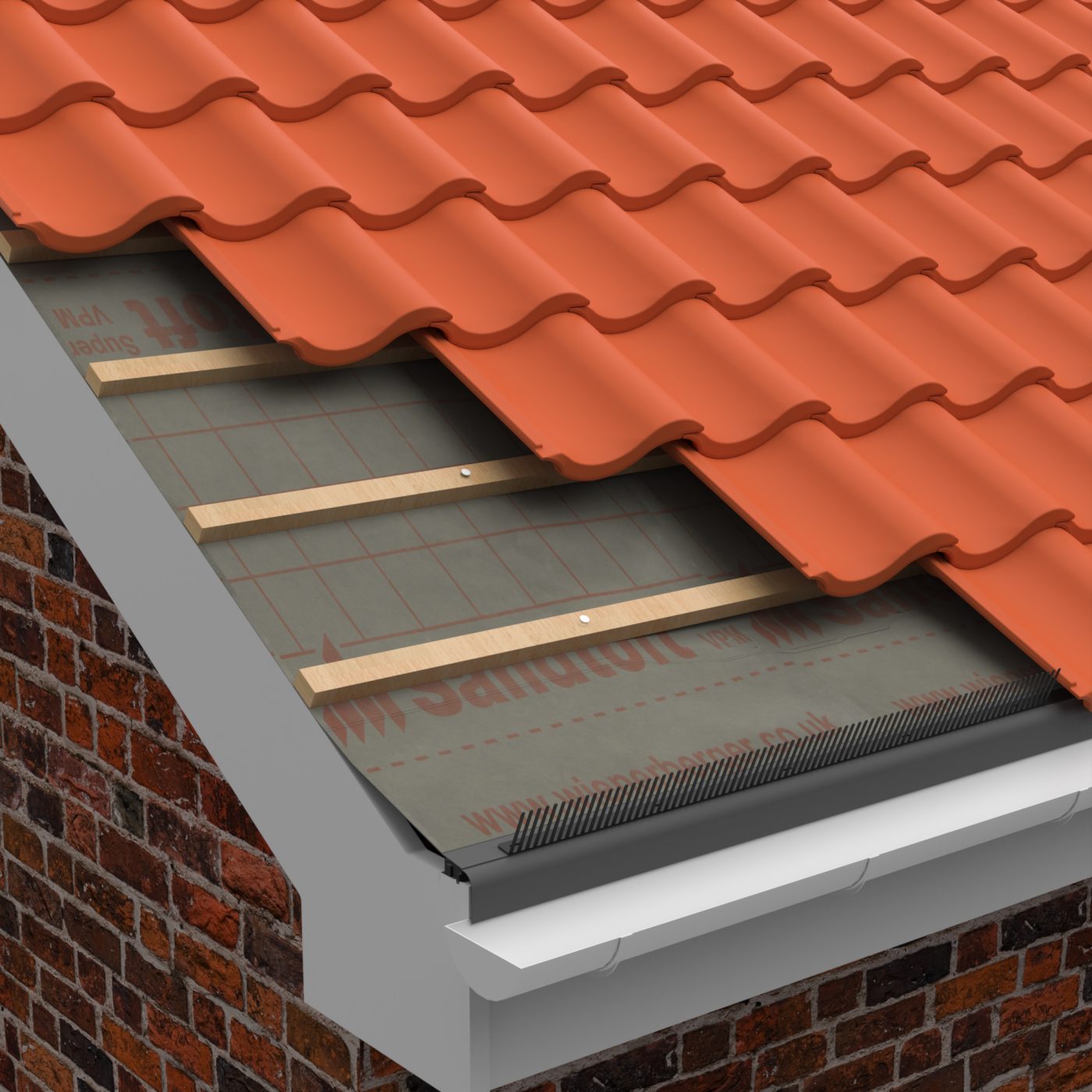

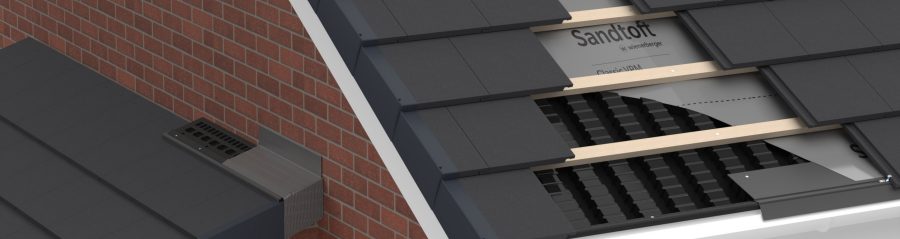

Sandtoft over fascia ventilation provides continuous free vent areas of 10,000 mm² and 25,000 mm² and insulation retention irrespective of rafter centres and soffit width. The over fascia ventilation strip provides effective resistance to large insects and driving rain.

The spacer tray provides a clear air path over the insulation irrespective of soffit width and roof pitch. The underlay support tray prevents sagging of the underlay behind the fascia and eliminates the problem of long-term deterioration of the underlay at the eaves.

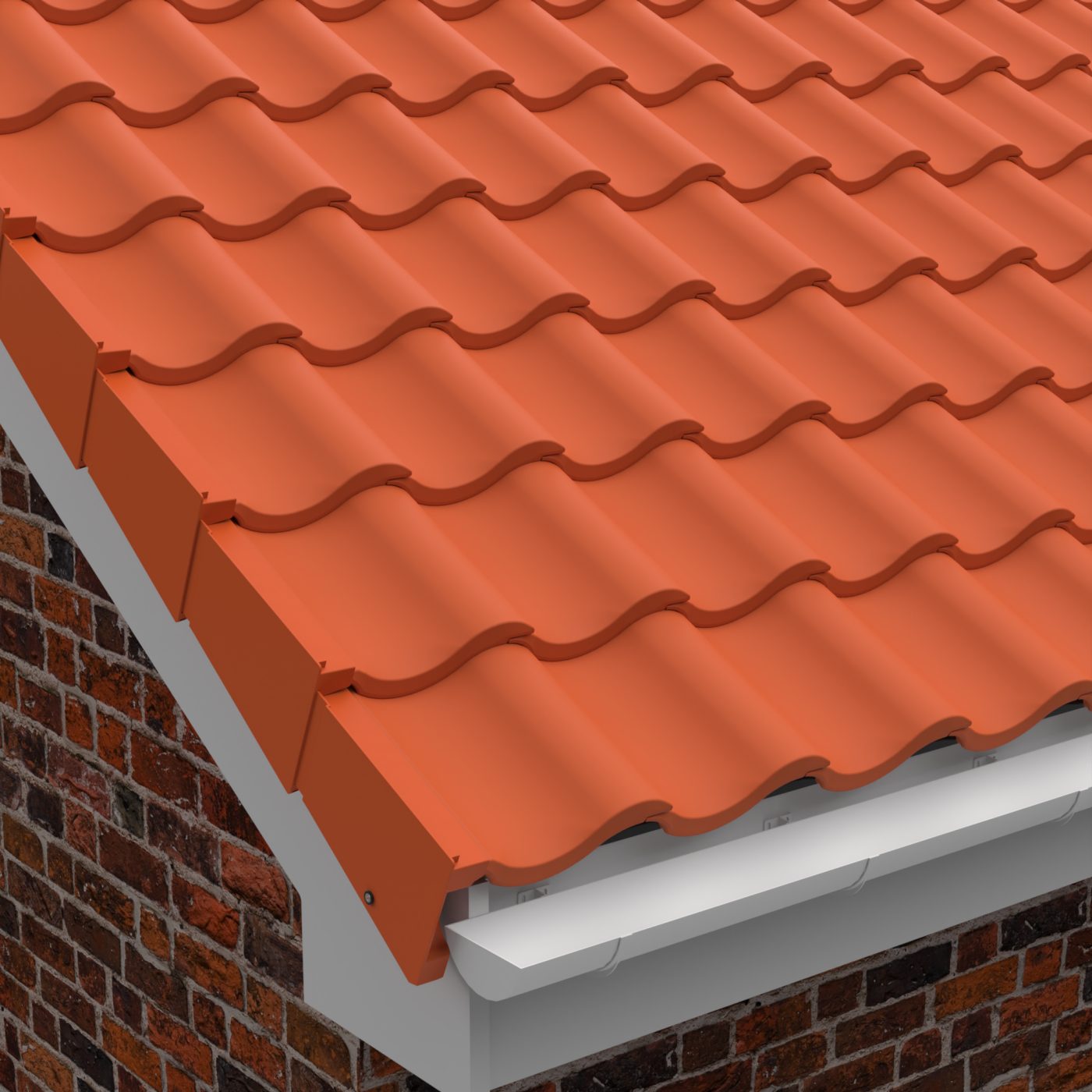

An illustration of eaves ventilation completion

Tile ventilators

Tile ventilators

Sandtoft offers a range of tile and slate ventilators to suit different applications and aesthetic requirements.

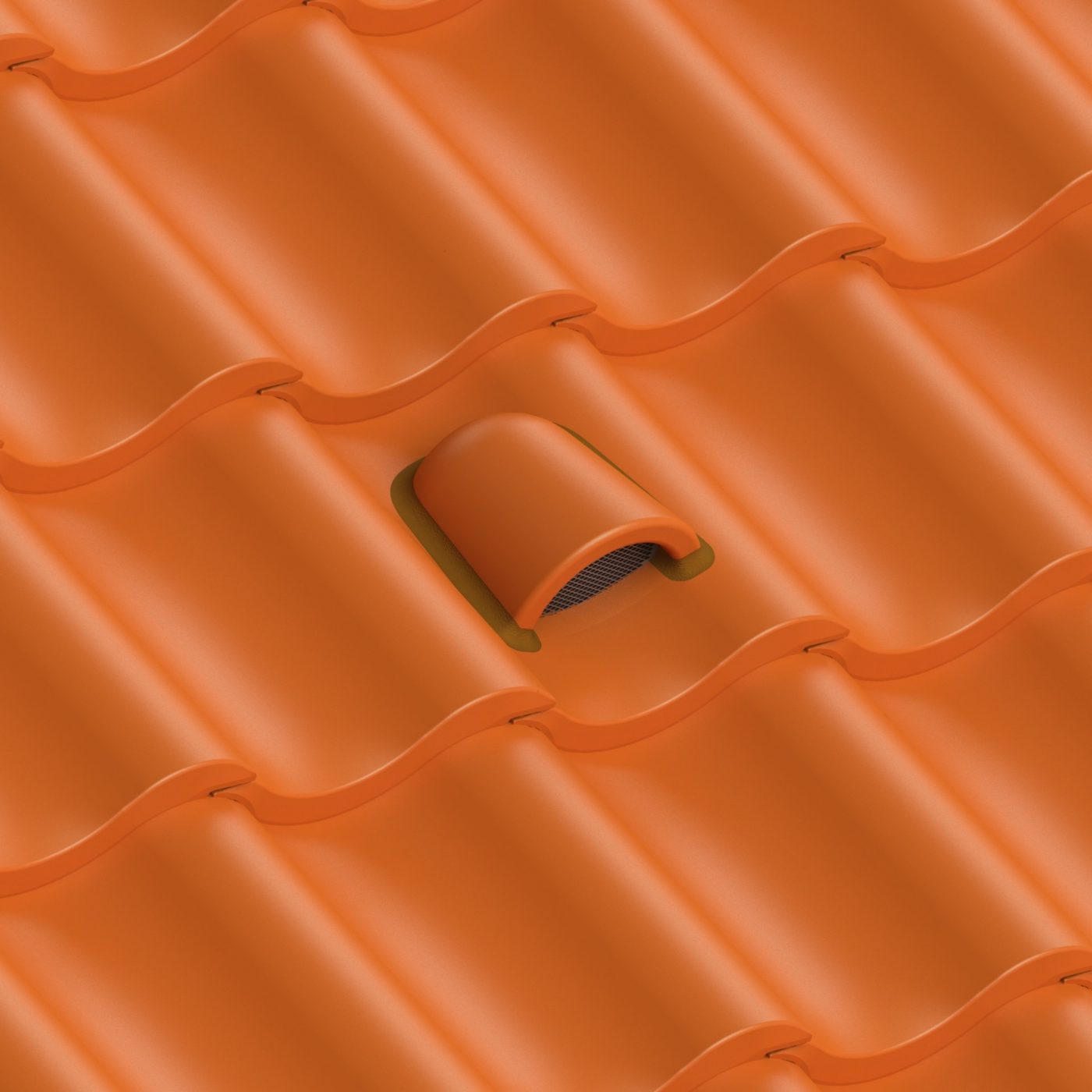

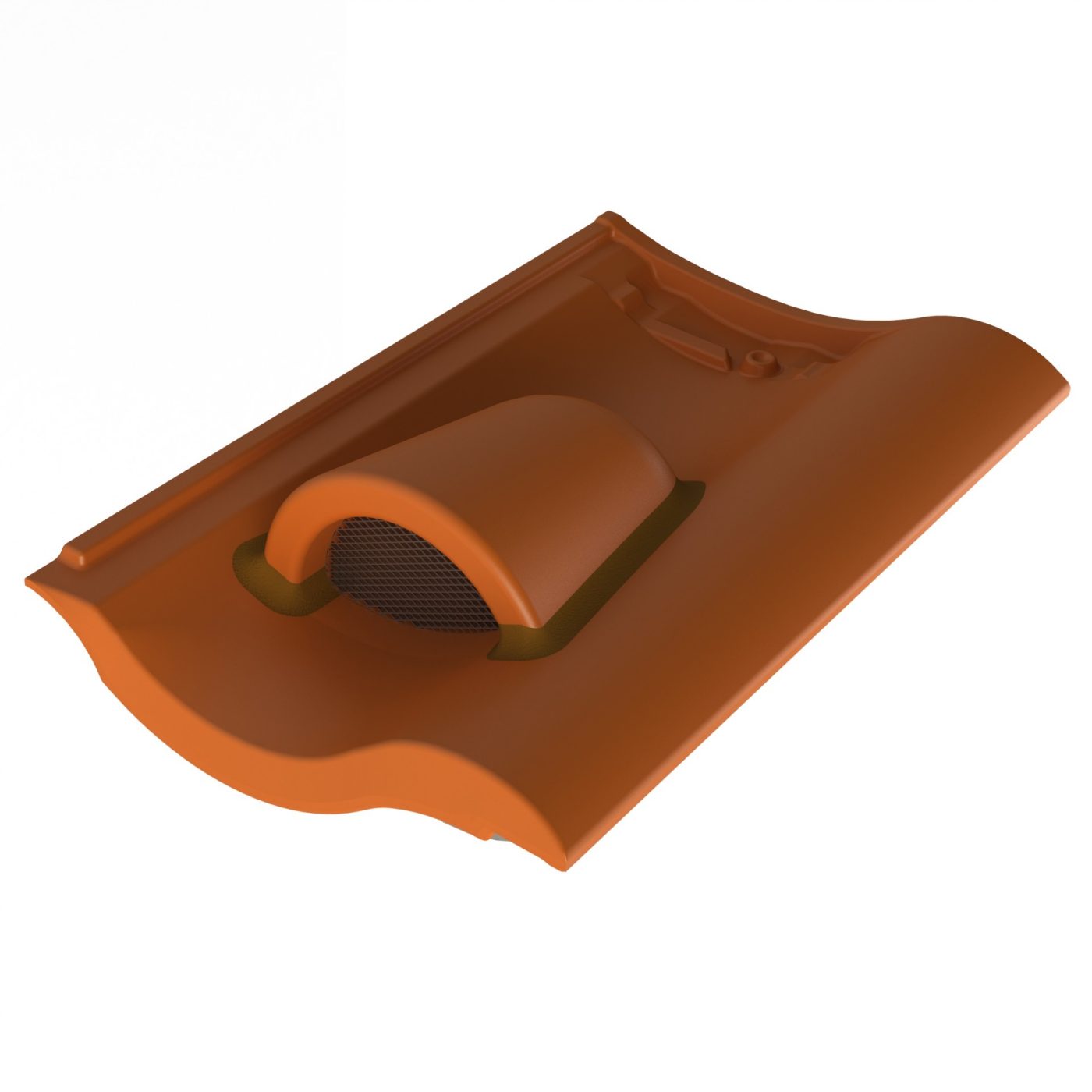

Cowl ventilators provide a practical solution for high level roof space ventilation and for connection to soil or mechanical extraction pipes.

Concealed ventilators and Invisivents are designed to maximise the aesthetic features of the roof by being virtually unseen once installed and can be used for both low-level and high-level ventilation, as well as for connection to soil or mechanical extraction pipes. Flexible pipes and pipe adaptors are available for connecting concealed ventilators to soil or mechanical extraction pipes.

Ridge ventilators

Ridge ventilators

Sandtoft offers a range of ridge ventilators and terminals to provide practical solutions for roof space ventilation, soil pipe and mechanical extraction. Within the range, concealed ventilators are available to maximise the aesthetic features of the roof by being virtually unseen once installed.

Flexible pipes and pipe adaptors are available for connection for soil pipe and mechanical extraction.

All air vent ridges are 457mm long.

Half round concealed air vent ridge

Legged angle concealed air vent ridge

Half round concealed air vent ridge

Top abutment ventilator

Top abutment ventilator

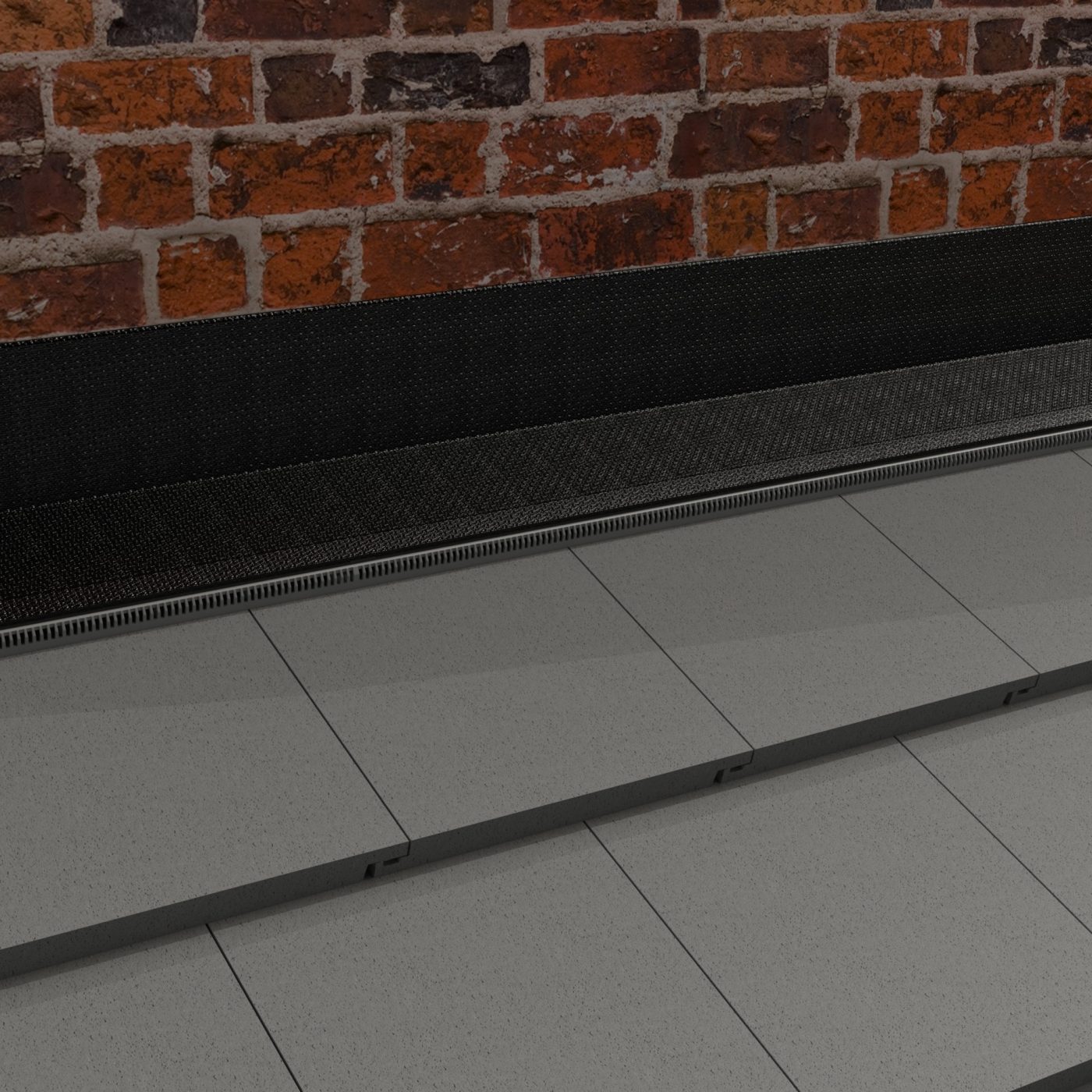

The Sandtoft top abutment ventilation system provides a neat and discreet way of ventilating the roof space at a top abutment. The system comprises of 0.9m vent units that click together, fillers can then be attached to the vent units for profiled tiles. Once the vent units are fixed in place a Koraflex or lead flashing can be dressed into place.

The system is suitable for use with all Sandtoft & Koramic flat tiles and most profiled tiles. The Sandtoft top abutment ventilation system provides 5000mm² / linear metre free vent area.

For further information about our ventilation systems, please see pages 135 to 138 of the Roof System Selector brochure.

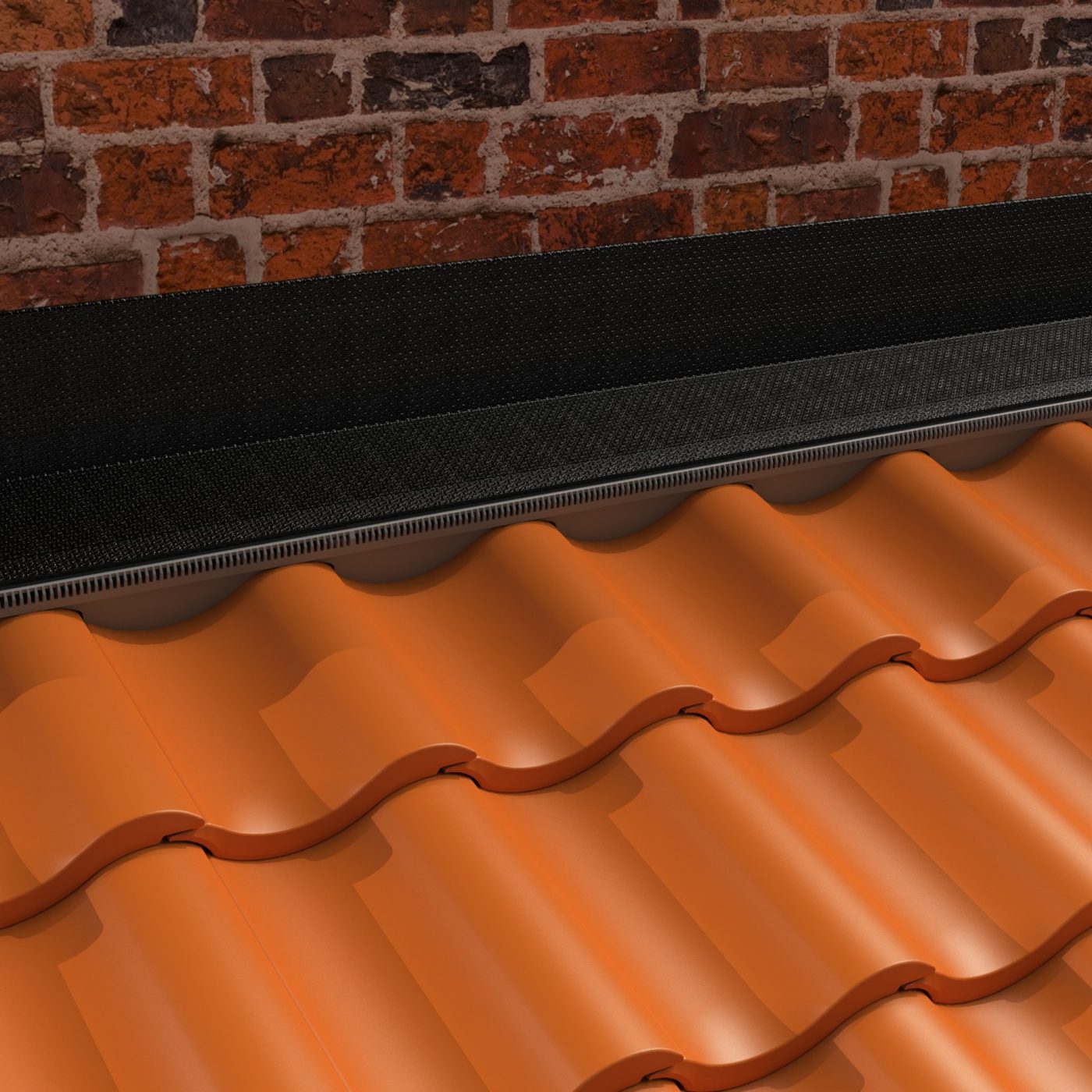

An illustration of a completed top abutment vent on a roof.

Flashing material

Flashing material

Lead has been the standard flashing material on roofs for hundreds of years. However, cost and environmental concerns mean that lead is becoming less appealing.

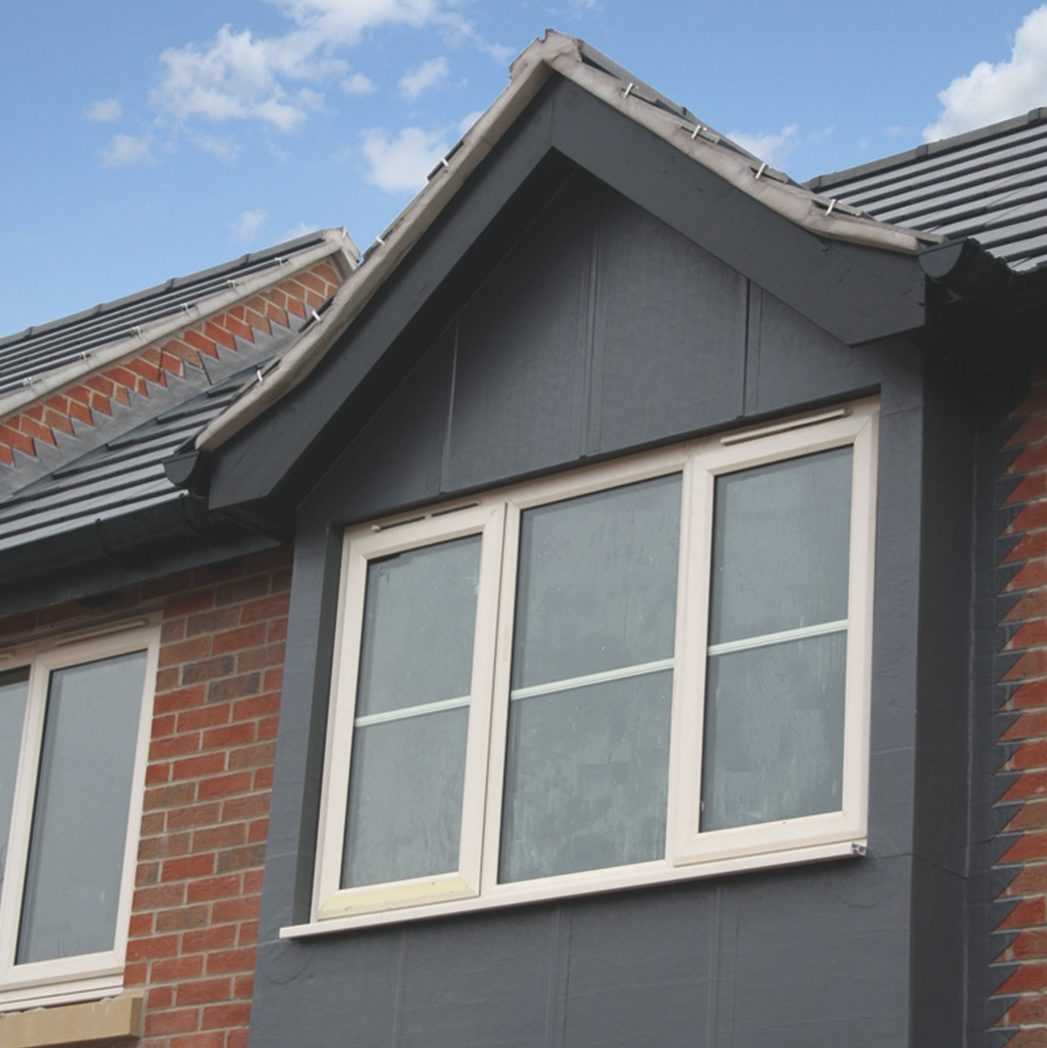

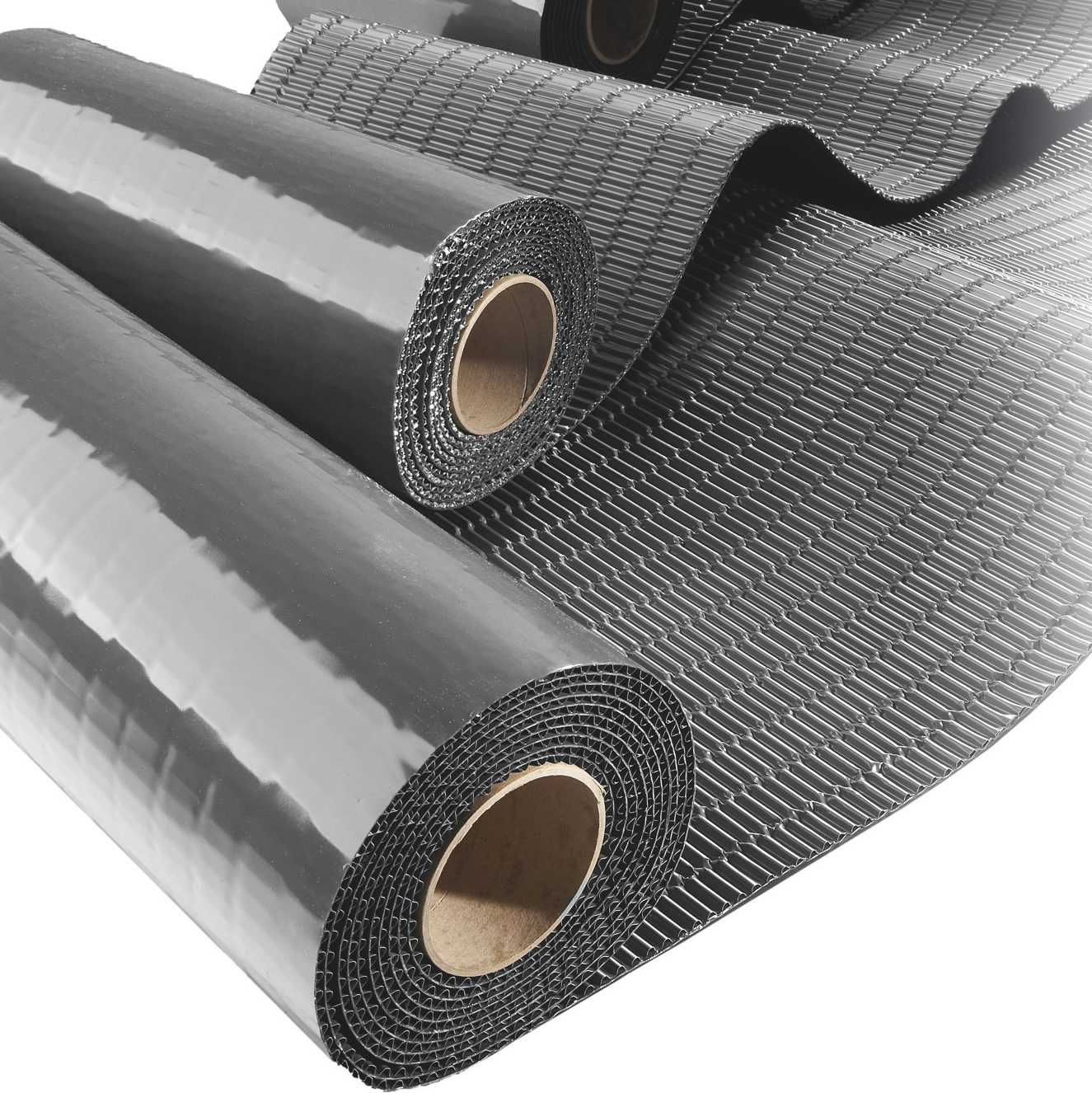

The perfect alternative to lead flashings KoraFlex is an ideal replacement for lead for weatherproofing junctions such as side and top abutments around chimneys and dormers etc. Available in three colours, it can be used to either replicate lead or complement the tile colours. As KoraFlex is made from aluminium there is no risk to the environment from any chemical leaching onto the roof.

On an aluminium roll, fully coated with a butyl adhesive backing for superior adhesion, KoraFlex is much lighter and more flexible than lead, making it easier to handle and install. The backing film can be removed in sections as required, making positioning on the roof easy. The adhesive backing remains workable for an hour but then provides a strong adhesion to the roof to resist wind uplift. Available in 320mm and 450 mm widths, Koraflex can be simply cut to length/width using a sharp knife.

Underlay

Underlay

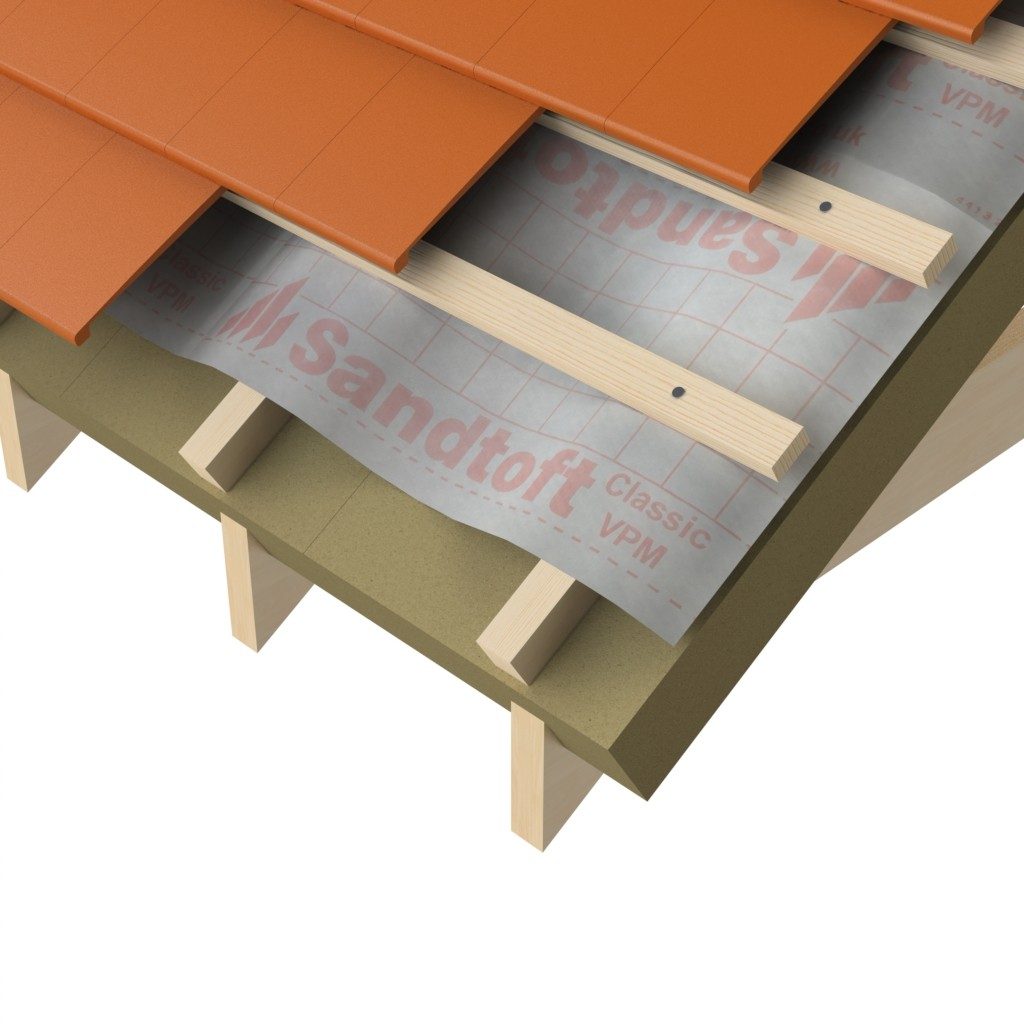

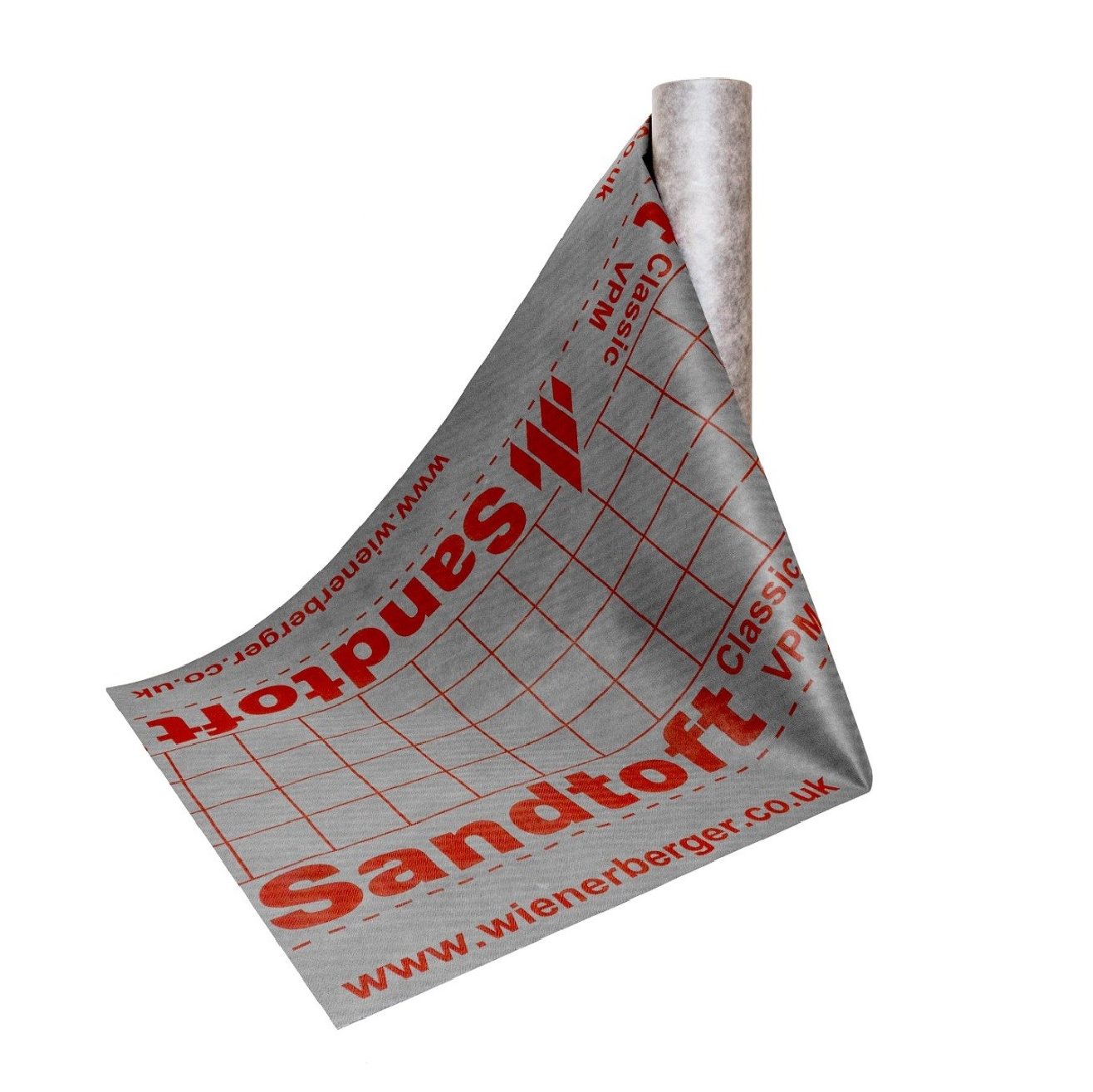

Sandtoft VPM Classic and Sandtoft VPM Super vapour permeable membranes can be used with all concrete and clay roof tiles and are suitable for both warm and cold roof designs on any roof shape and building.

They perform all the functions of good quality roof underlays and provide many benefits over the traditional bituminous underlays, helping to avoid condensation in the roof space.

Our membranes act as a secondary line of defence, protecting the internal roof substructure against wind driven rain and snow, safely draining it away to the gutter or other rainwater system. These underlays also reduce the wind loading on roof tiles and act as a temporary roof covering for up to a month prior to the installation of tiles or slates during building construction.

To take a look at UK zonal classification for using Classic and Super underlays see page 139 of our Roof System Selector brochure.

Urban roofers applying roof underlay sheet wearing hard hat and safety jacket in team work

Urban roofers applying roof underlay sheet wearing hard hat and safety jacket brick chimney

Bespoke solutions

Bespoke solutions

Beyond the functional requirements for weatherproofing, there is much that a roof can add to the visual appeal of a building. As well as offering a wide range of roof tile types, Wienerberger can also deliver an endless variety of ridge profiles with different end pieces and decorative crests or finials.

For more information about bespoke solutions made to order, speak to our Heritage Services team.

Roofspec

Roofspec

To give you complete confidence in our products and systems, the Roofspec online tool offers not only a full roof specification but also our guarantee that the specification fully complies with all relevant standards and regulations.

In addition, we guarantee that the roof will remain weather-tight for a period not less than 15 years provided it has been designed and constructed in compliance with the specification issued by Sandtoft.

Visit the Roofspec website to find out more.
