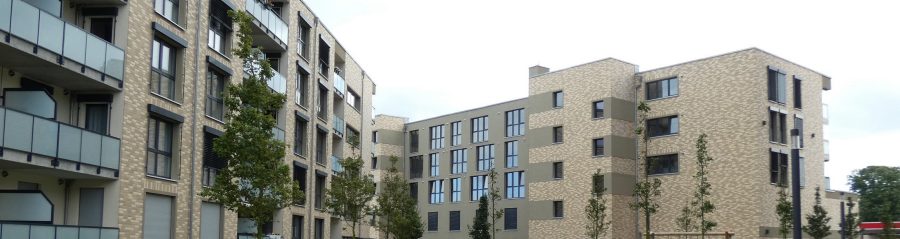

Modern building with brick slip facade

Ammonit

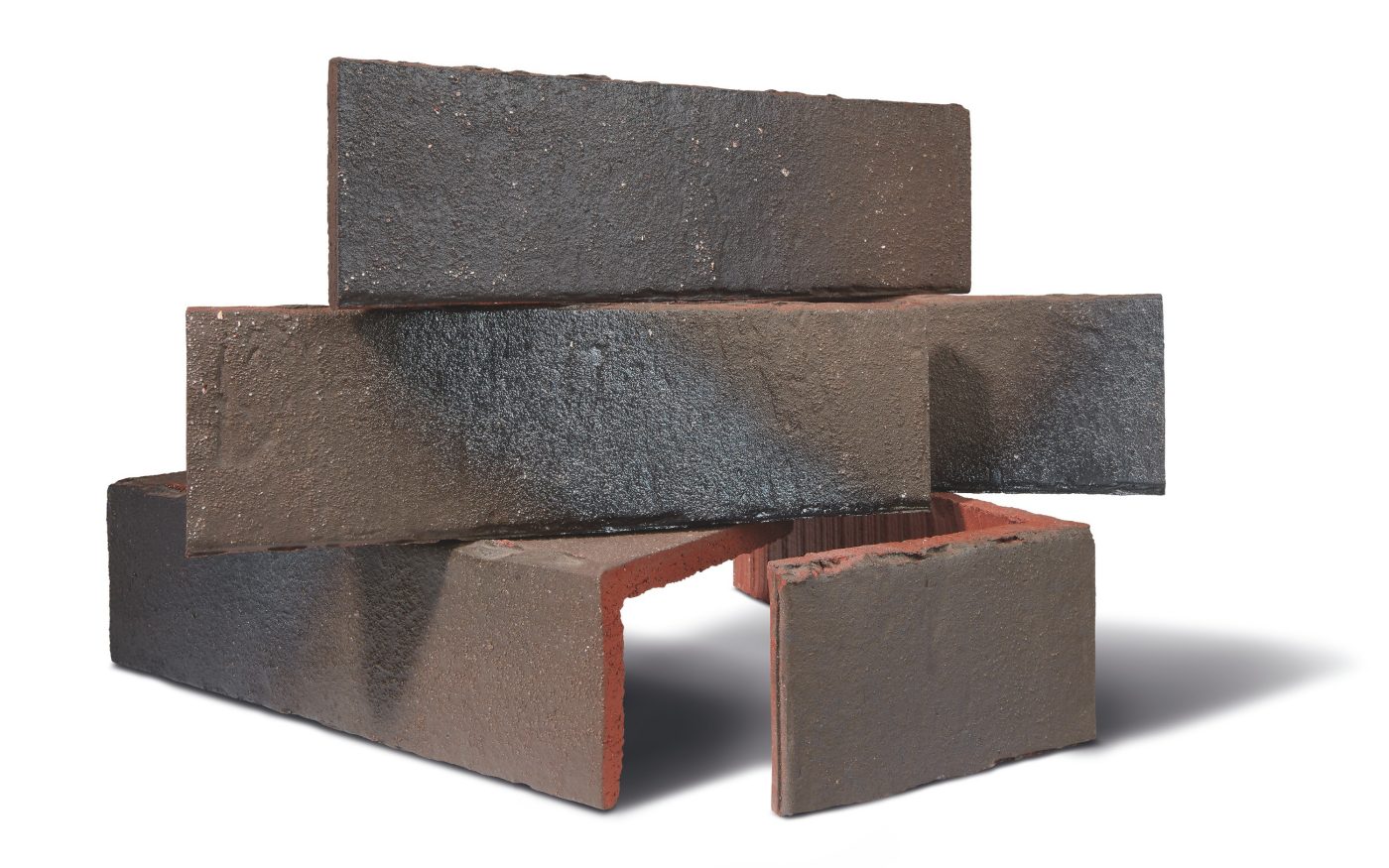

Extruded brick slips

The Ammonit manufactured brick slip range is a high-quality brick slip with both tight tolerance and low water absorption offering high levels of consistency throughout the build process. Ammonit brick slips conform to EN14411 achieving a very tight size tolerance which is ideal for both off-site and on-site installations where productivity and labour costs are important. The slips offer a reduction in embodied carbon over traditional bricks, and with less water usage during construction provide an overall cleaner build.

Ammonit brick slips are a perfect choice for ETICS and EWI suppliers, pre-cast producers and modular system manufacturers. The slips are purpose-made meaning a significant wastage saving is achieved in comparison to cut brick slips, as well as offering an impressive A1 fire rating. The brick slip range offers excellent environmental and technical credentials alongside effective cost reduction and performance gains. Take a more in-depth look at Ammonit brick slips below to discover how you can profit from the numerous impressive benefits the range has to offer.

Features and Benefits of Ammonit Brick Slips

  • Reduced embodied CO2 and reduction in CO2 from transport - Less material per m2.
  • Lighter product and easier to handle than traditional bricks.
  • Tight size tolerances (+/-2mm) - precise corners available.
  • Low water absorption (less than 3% water absorption).
  • High standard of fire safety (A1 fire rating).
  • Fully frost resistant.
  • More cost effective than traditional cut brick slips.
  • Slips can be assembled off-site, reducing on-site labour.
  • Conforms to EN14411 EWI system.

The Ammonit Slip Range

The core range comes available in two different thicknesses (9mm and 14mm) both of which match with UK size format (215x65mm). A variety of colour and texture options are available across three product categories (Armis, Pelaris and Fasanis) ranging from white through to black and finishes including smooth, sanded and rolled. However, if our colour range doesn't quite match your requirements, Ammonit brick slips are also available in an array of bespoke colours and blends, available to order upon request.

View the core range below and pick a brick slip to match your next project:

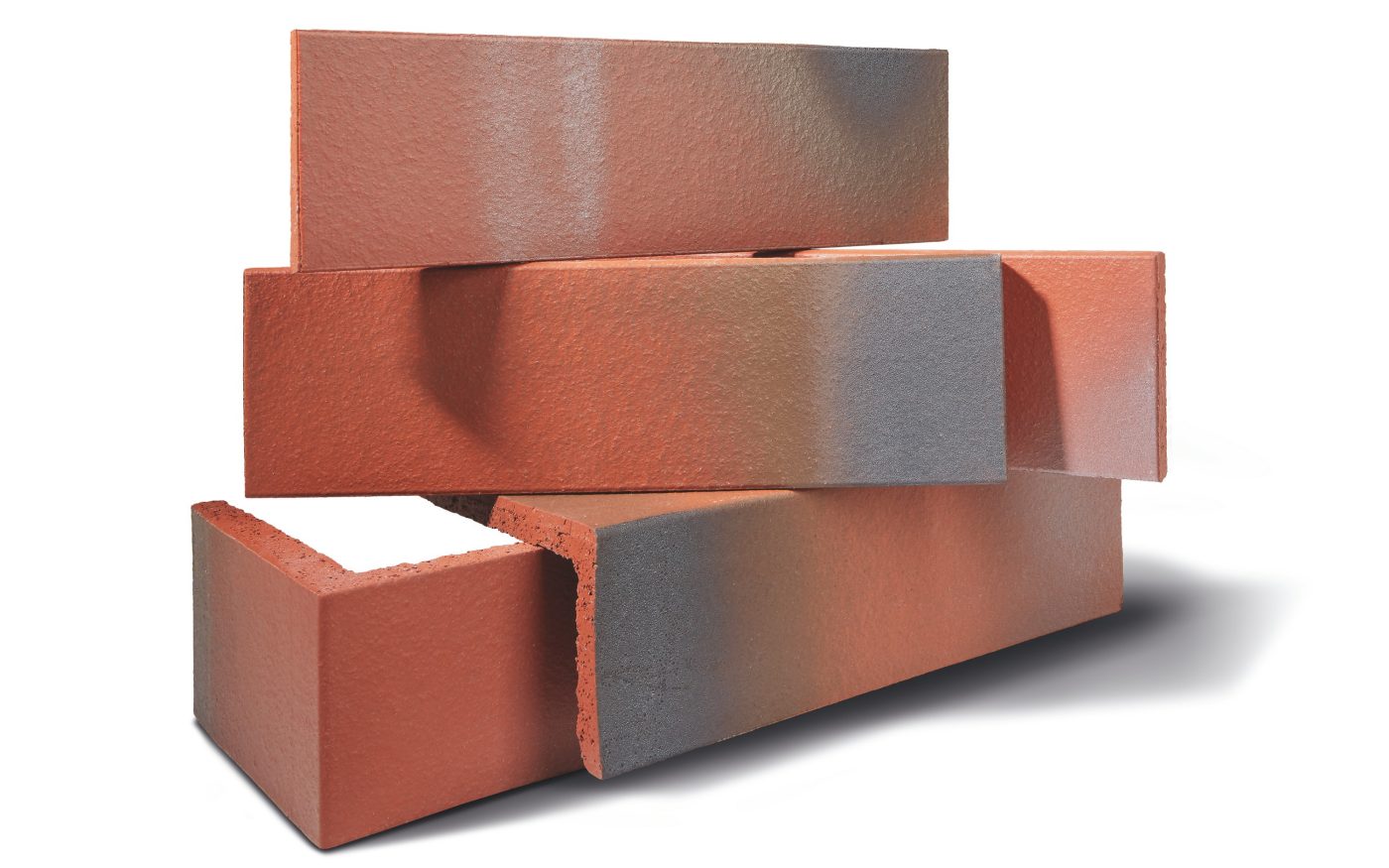

Armis – Smooth Finish

All products available in 9mm and 14mm thickness

Brown, red and yellow

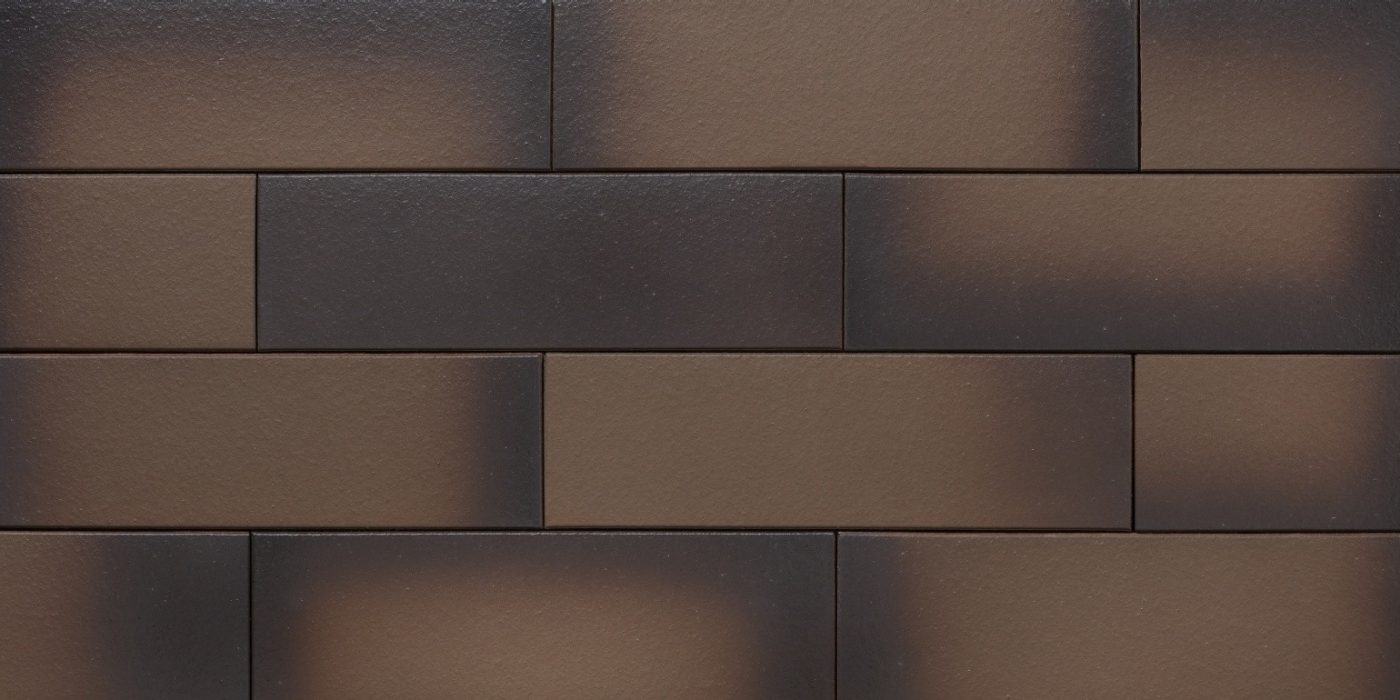

Rum Brown

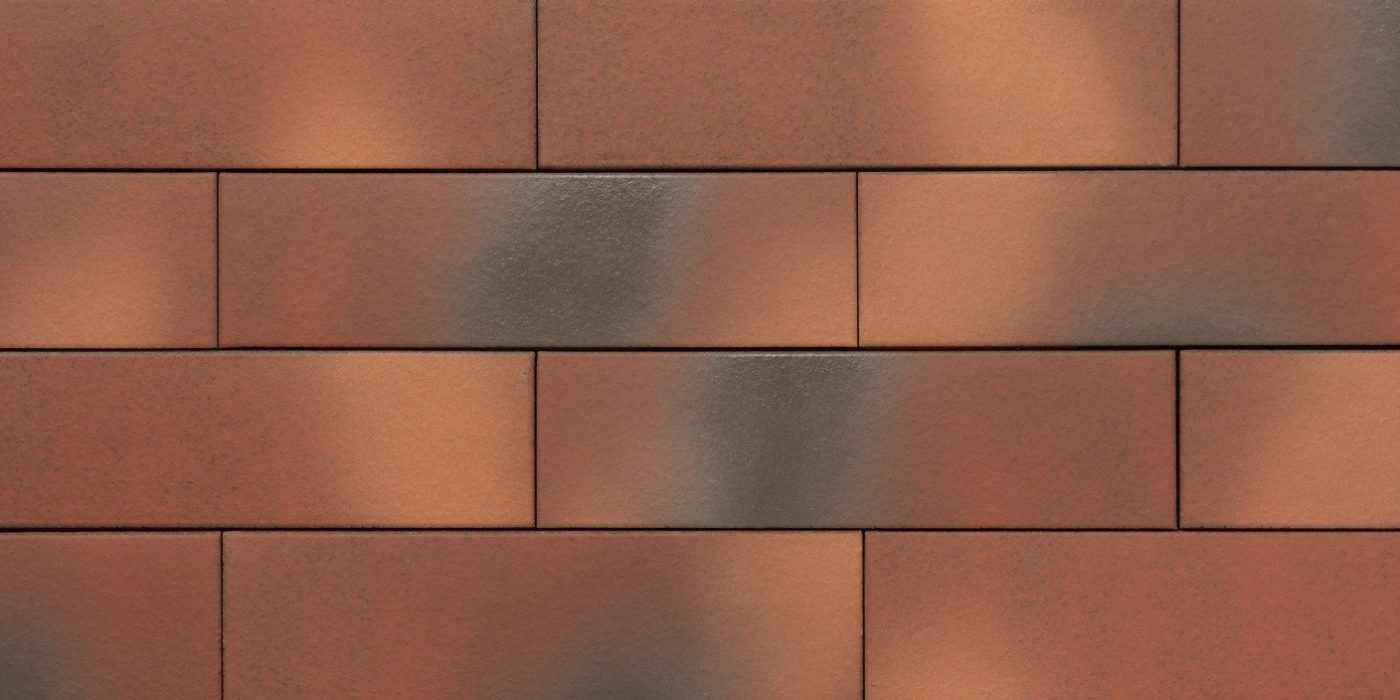

Mandarin Red

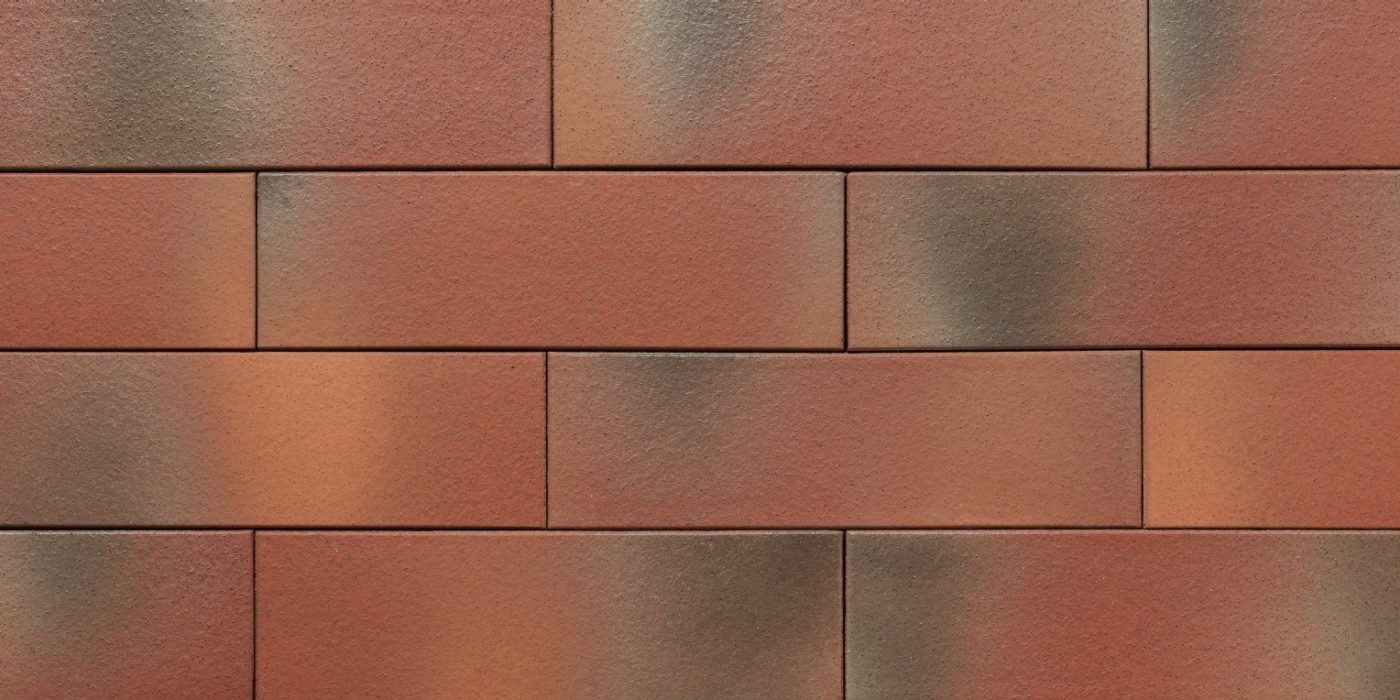

Garnet Red

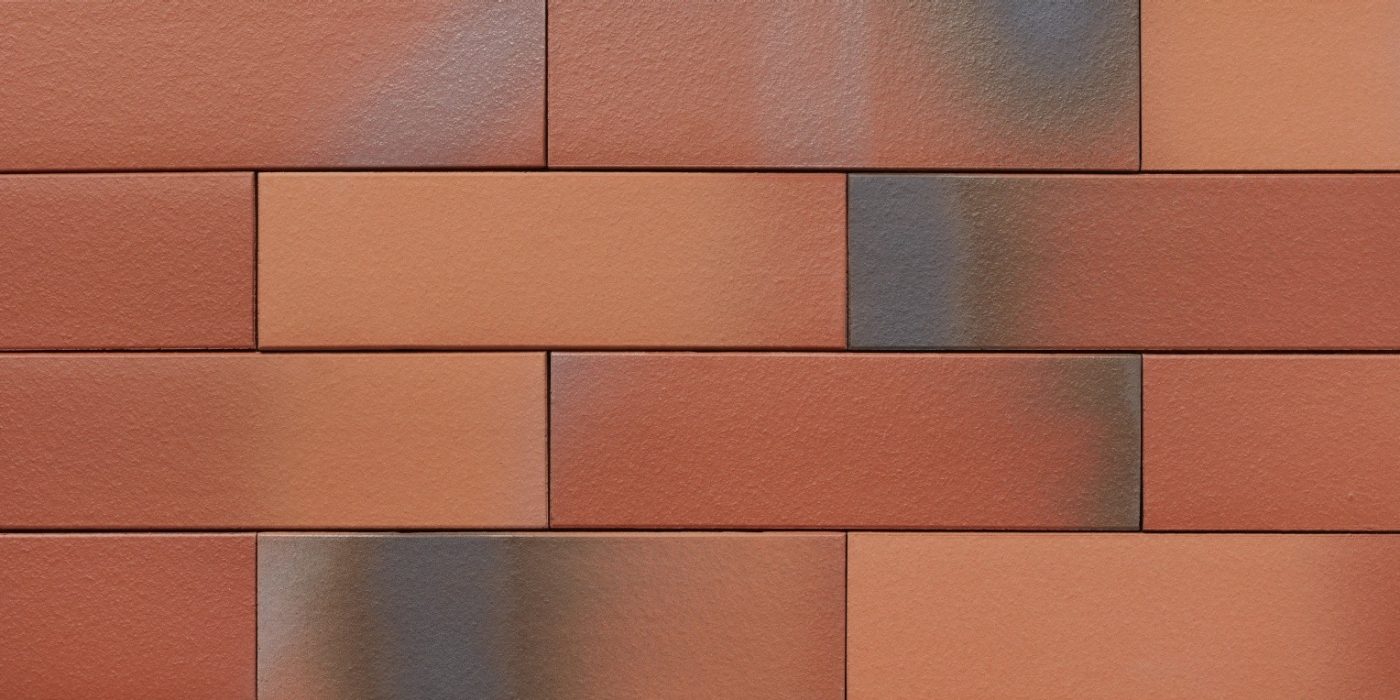

Hansa Red

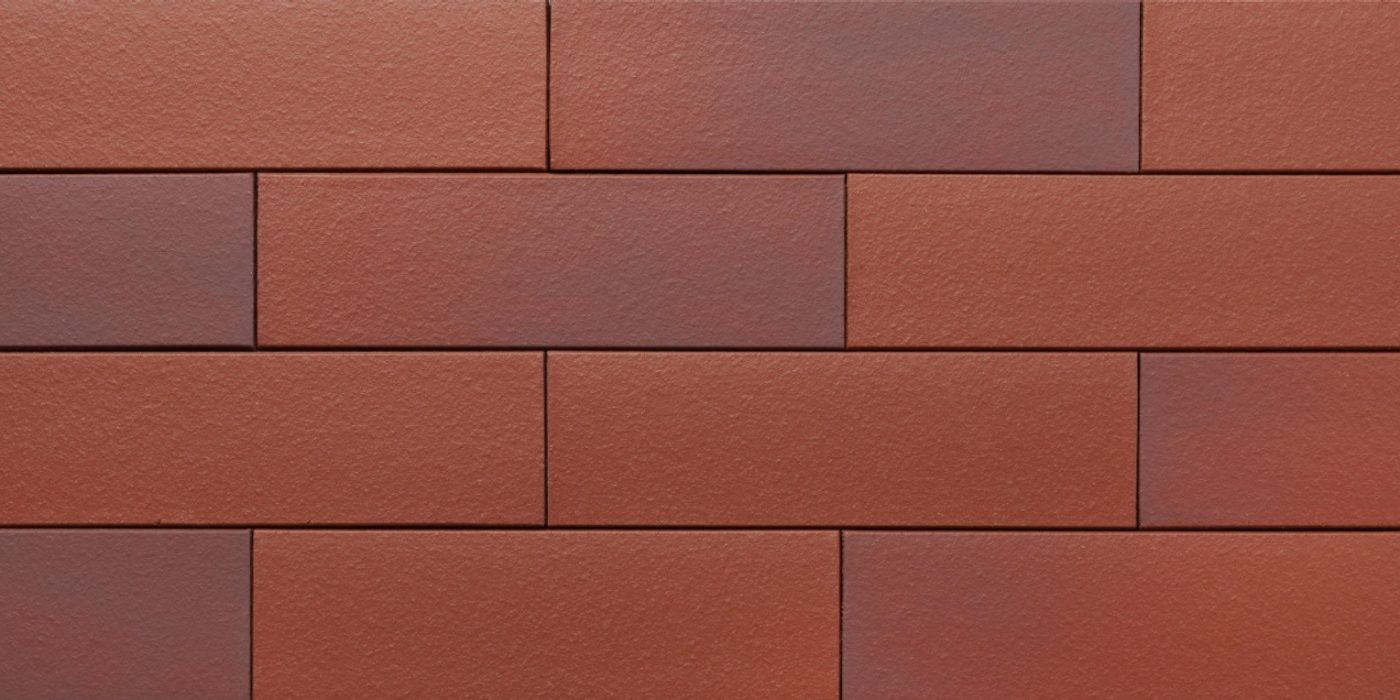

Cardinal Red

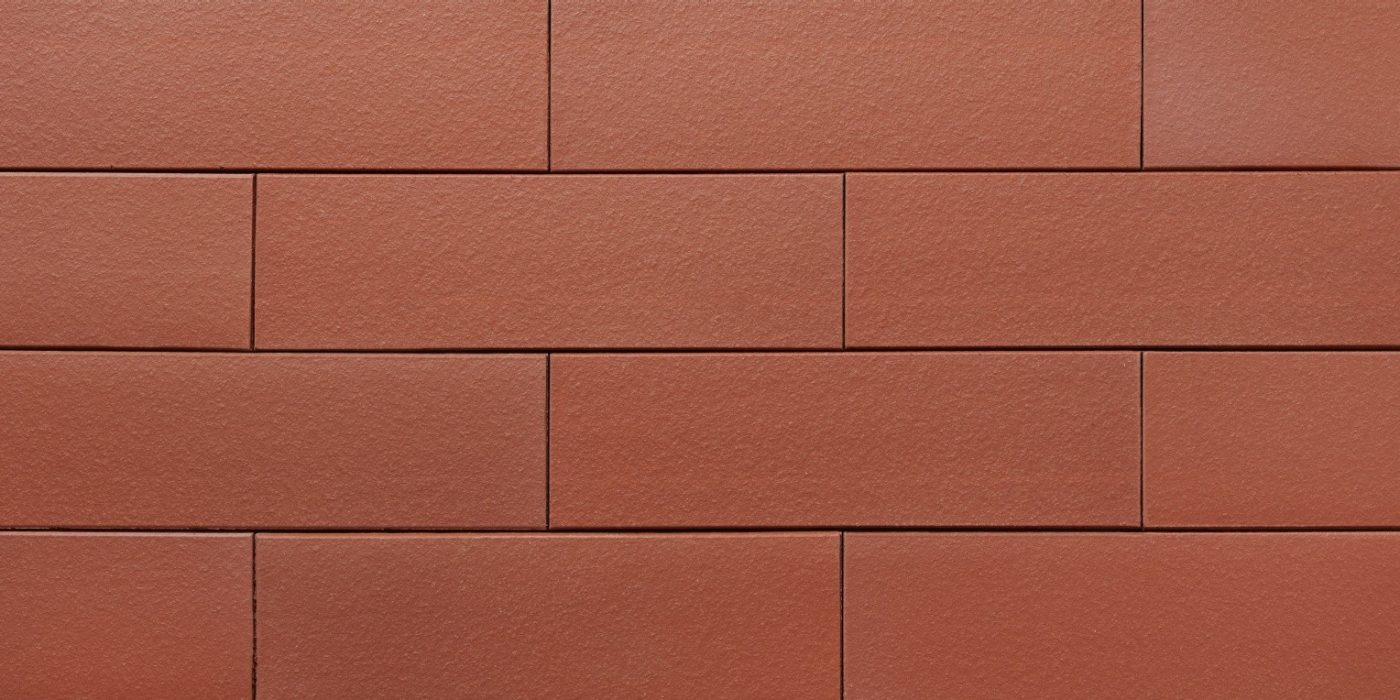

Venetian Red

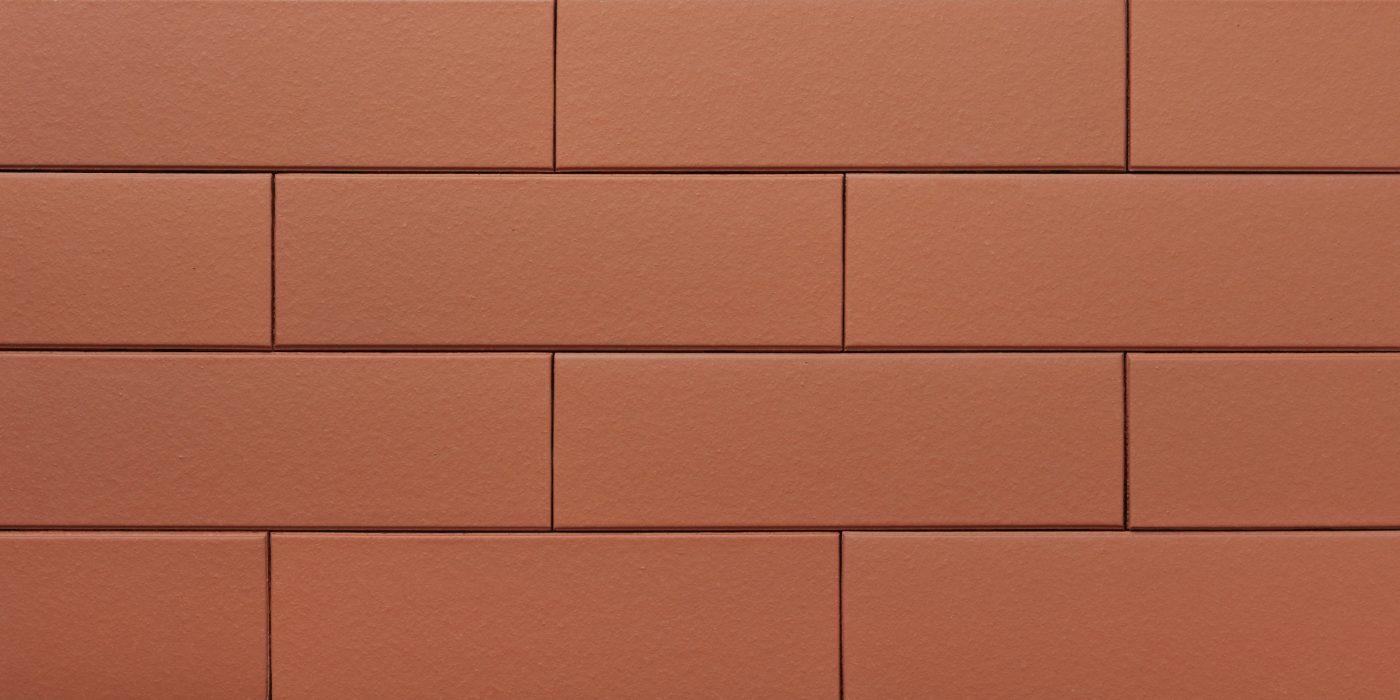

Persian Red

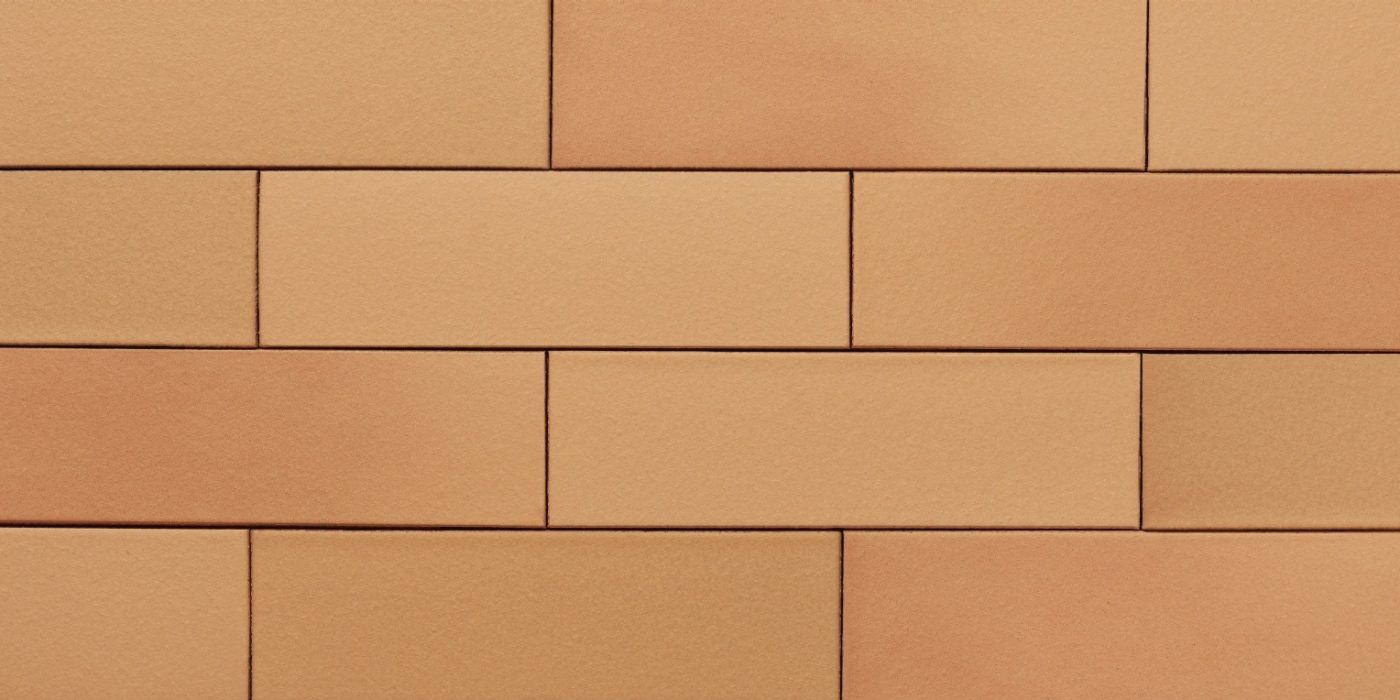

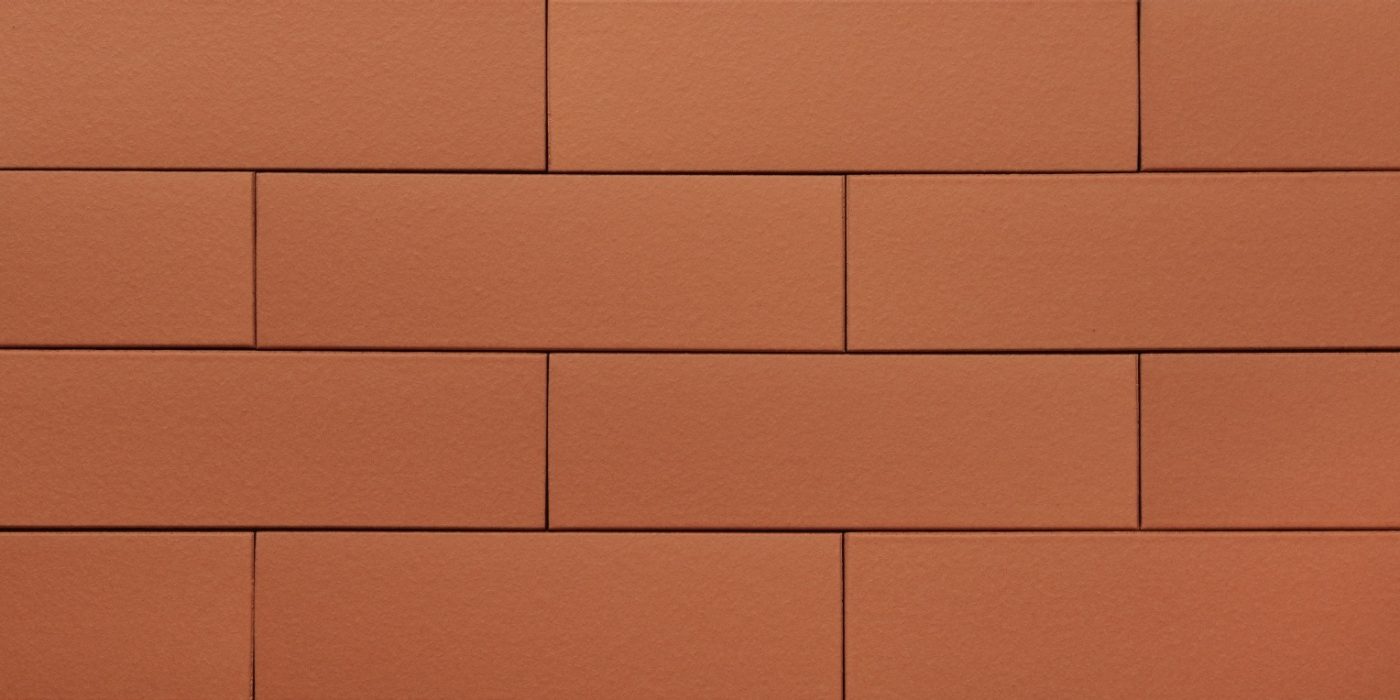

Blush Red



Sunset Red

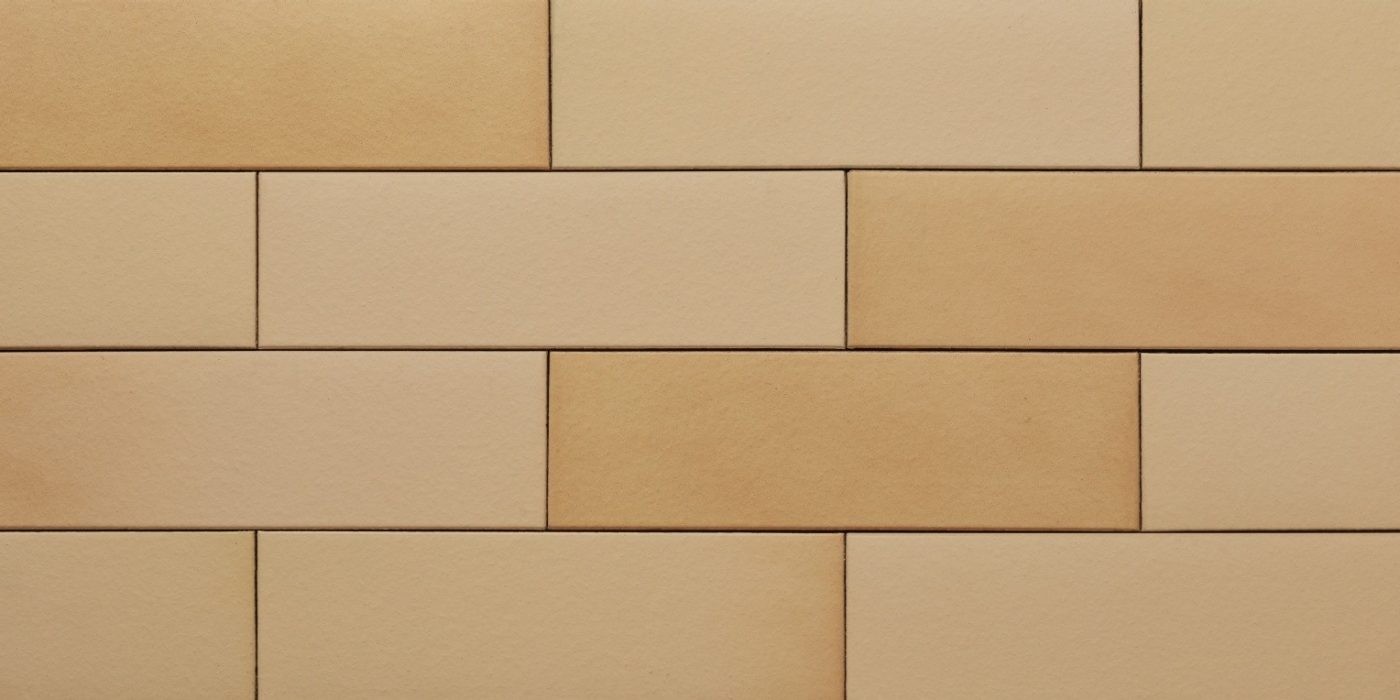

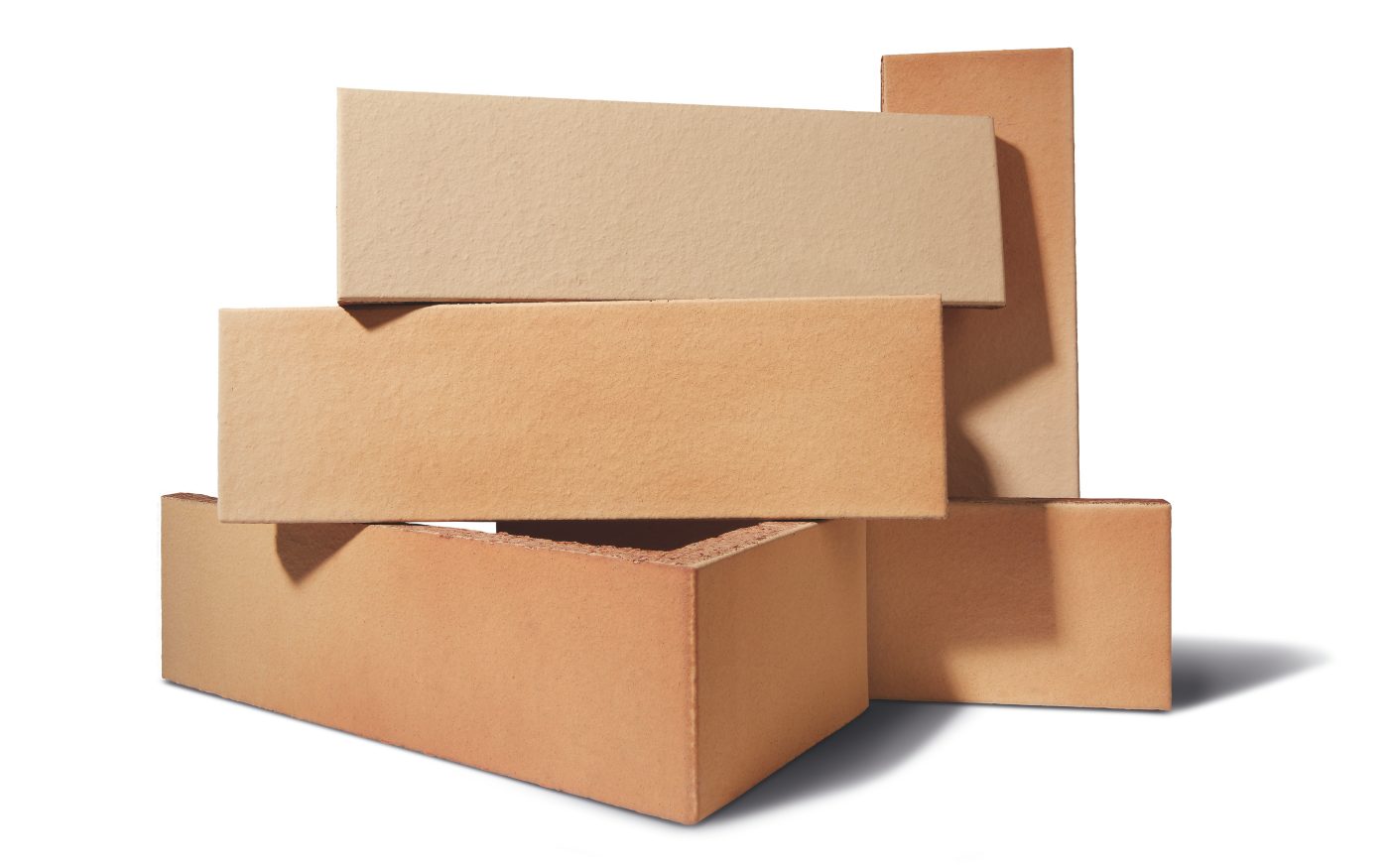

Melon Yellow

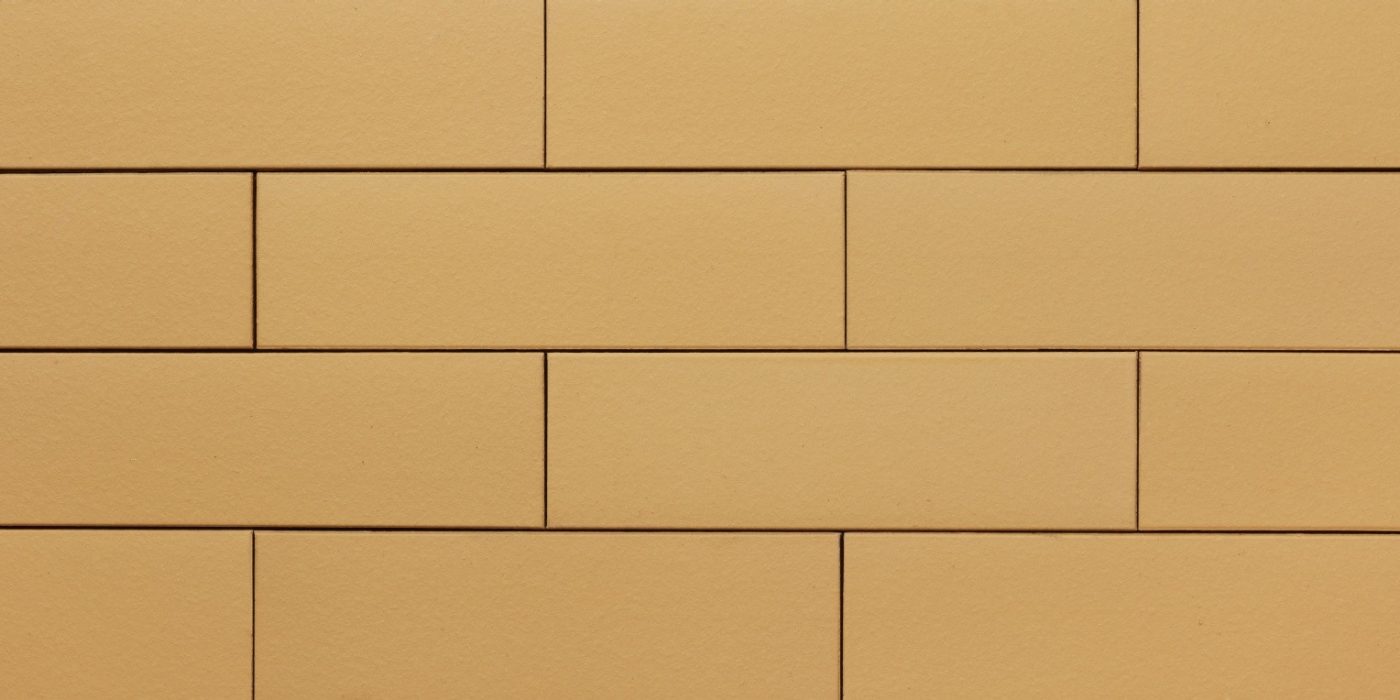

Mango Yellow

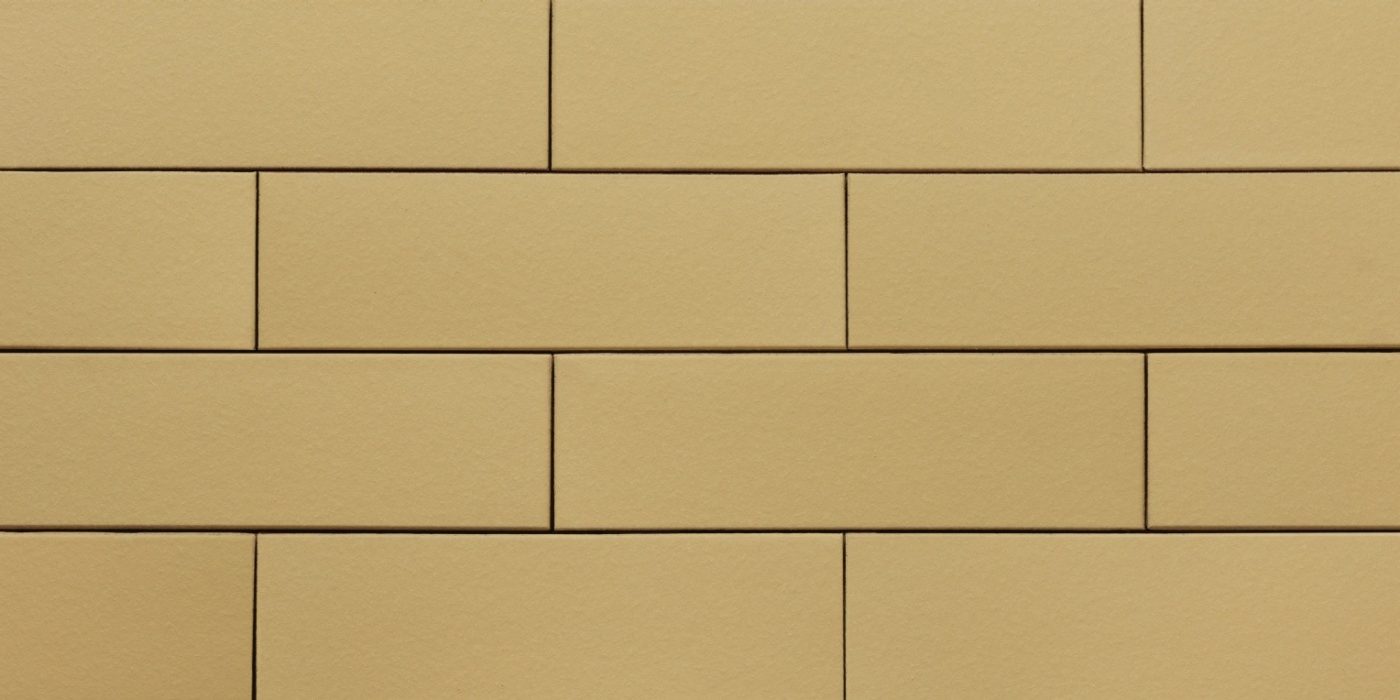

Honey Yellow



Black, grey and white

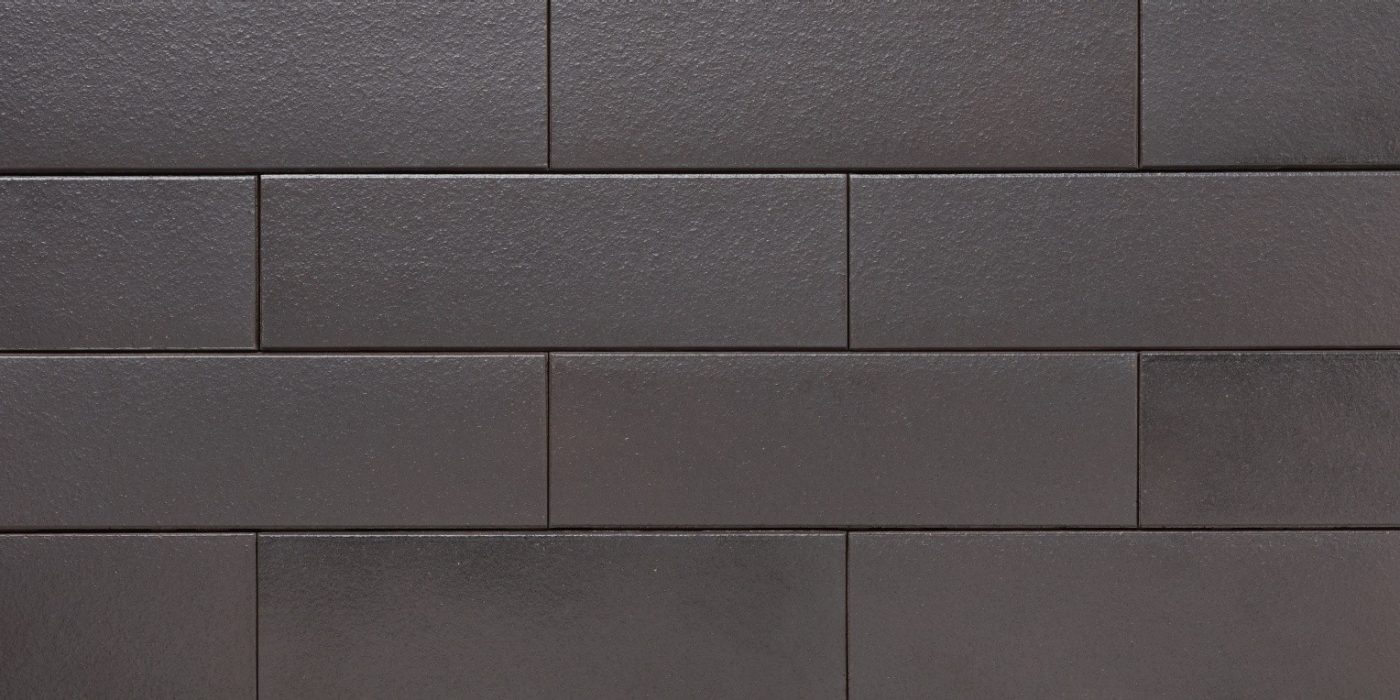

Night Black

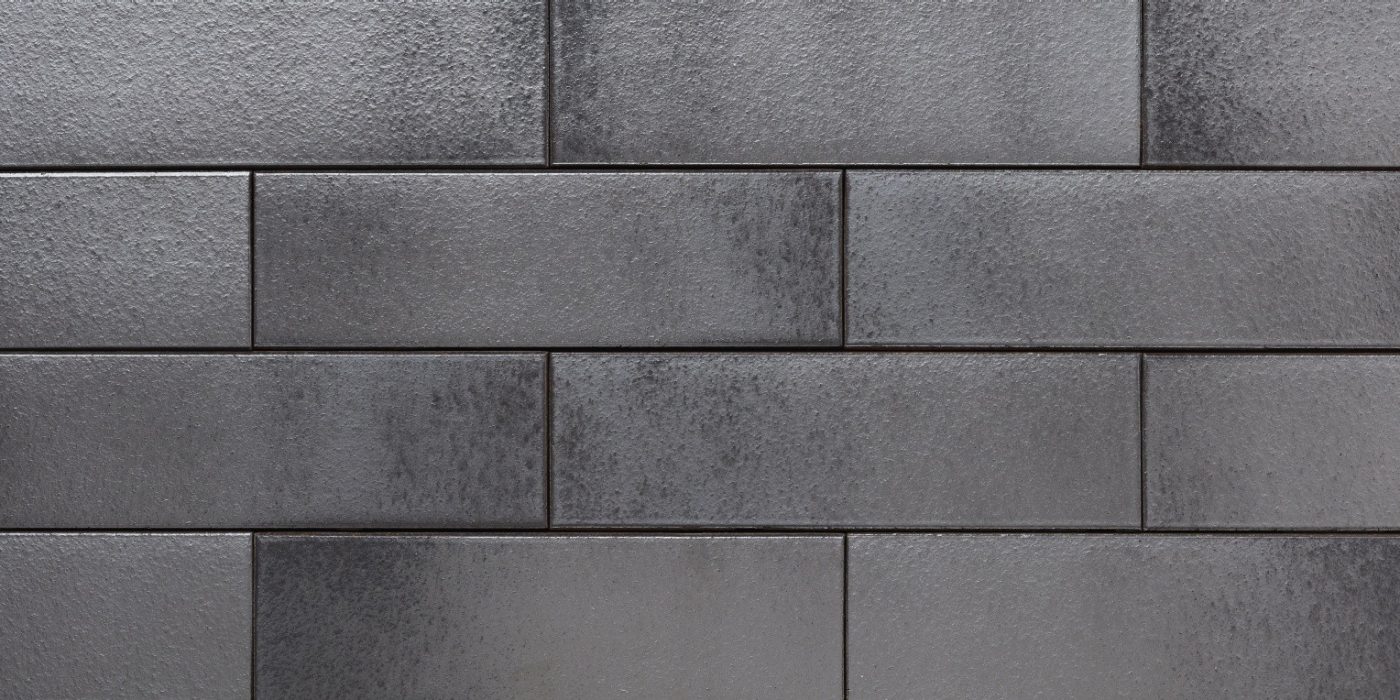

Smoky Grey

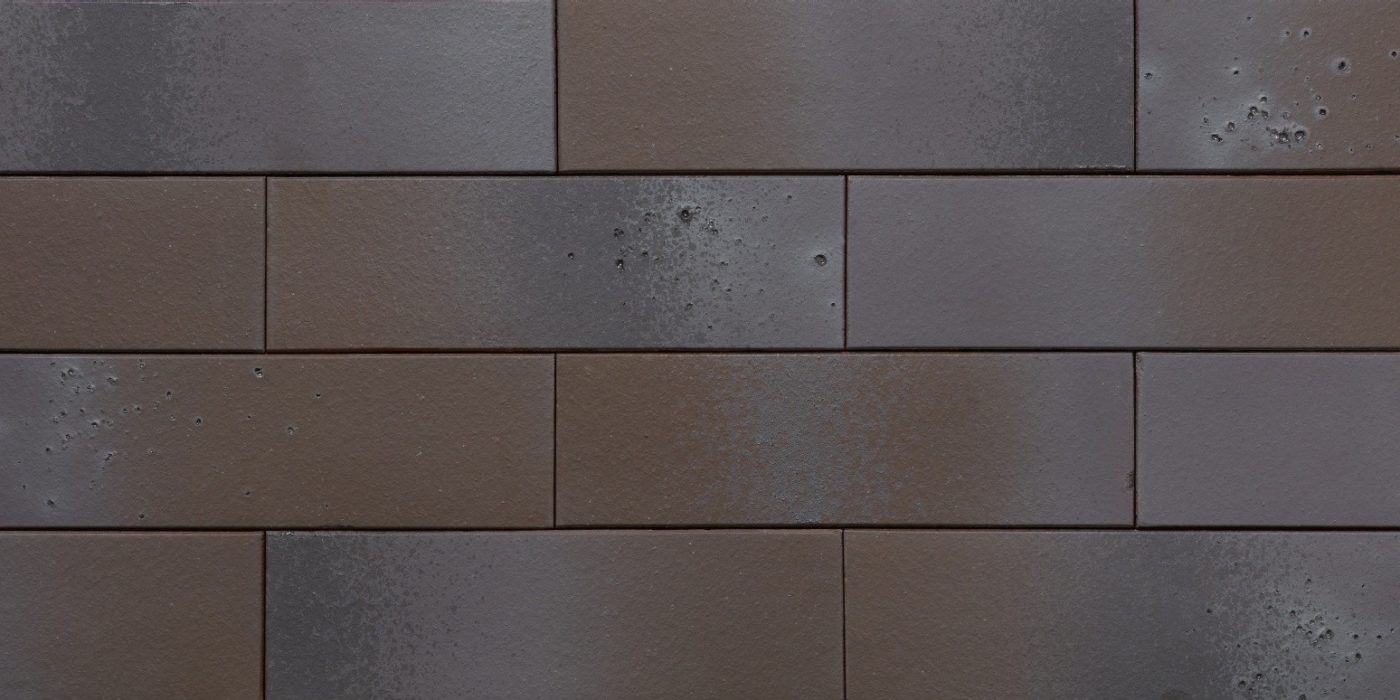

Root Grey

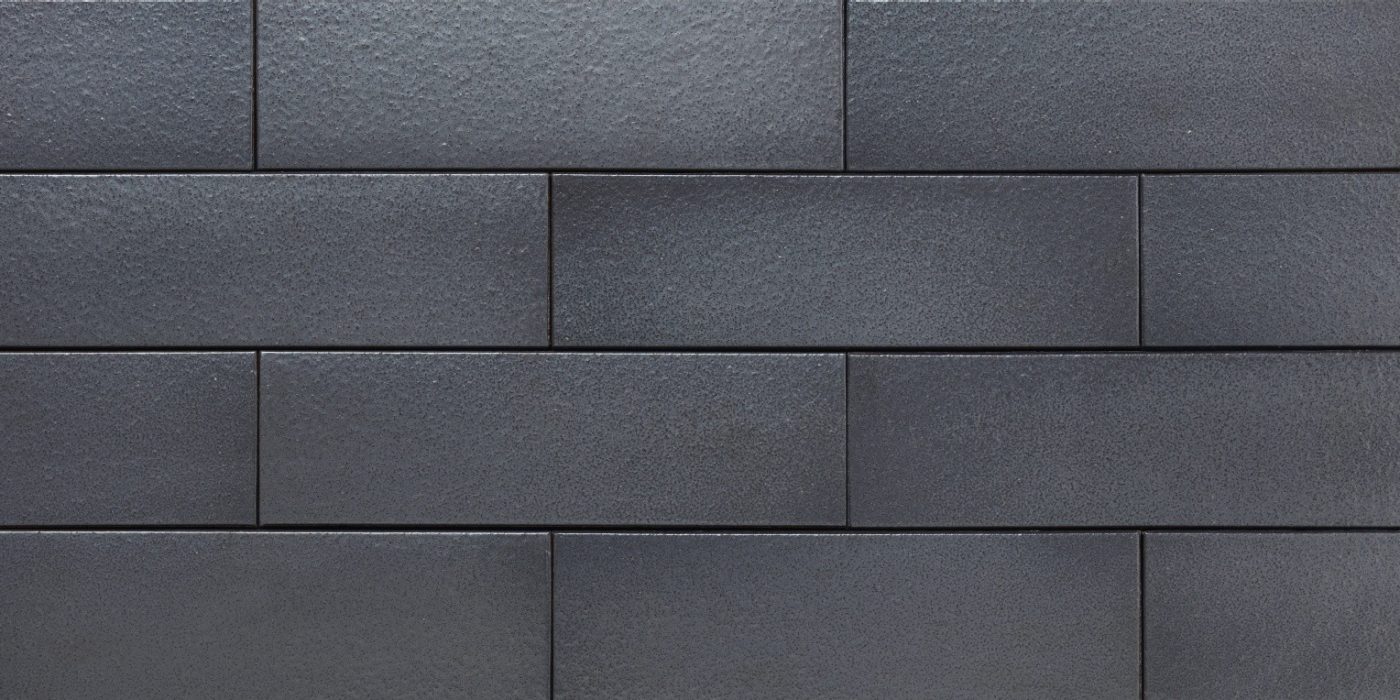

Gun Grey

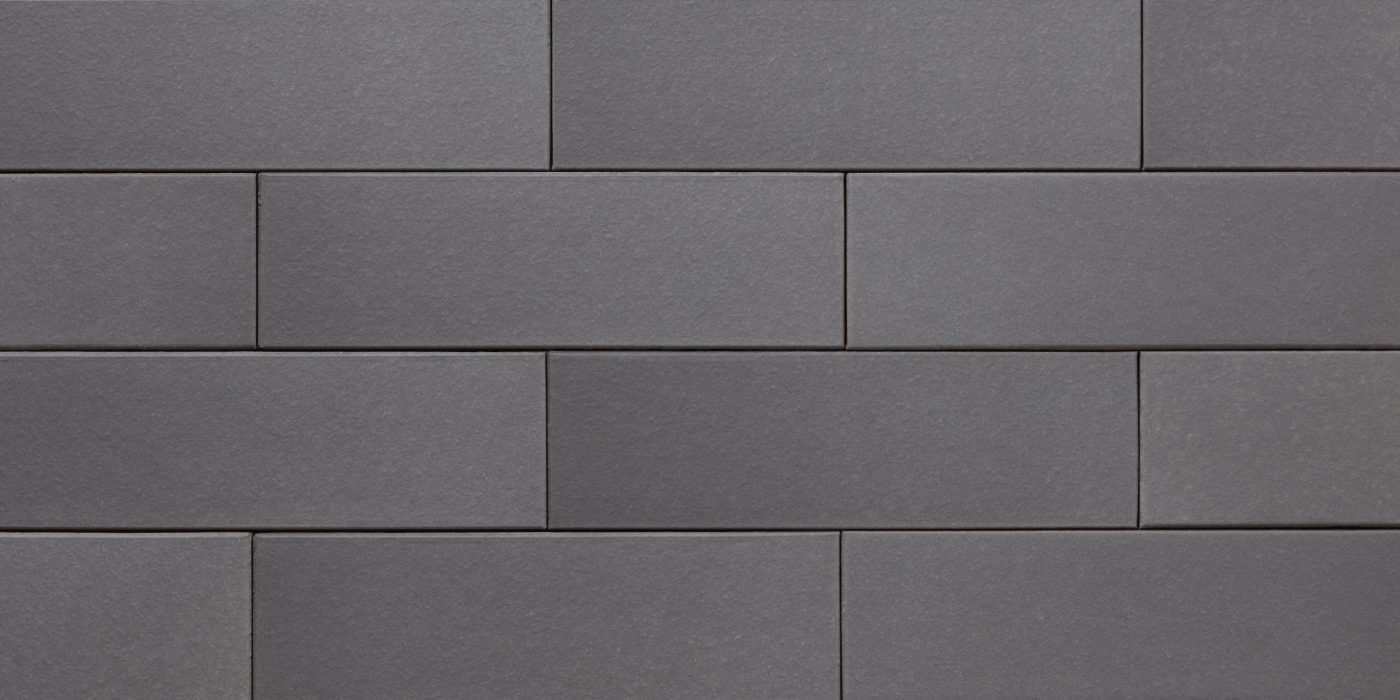

Cosmic Grey

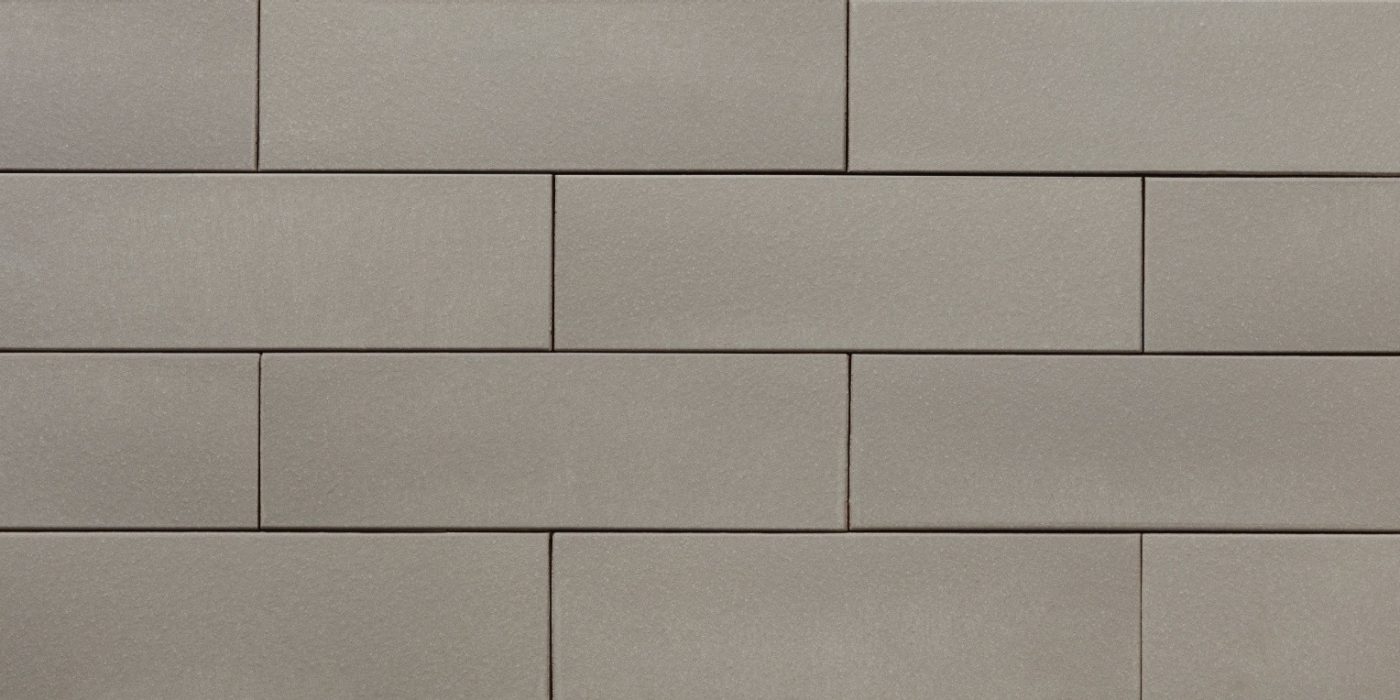

Desert Grey

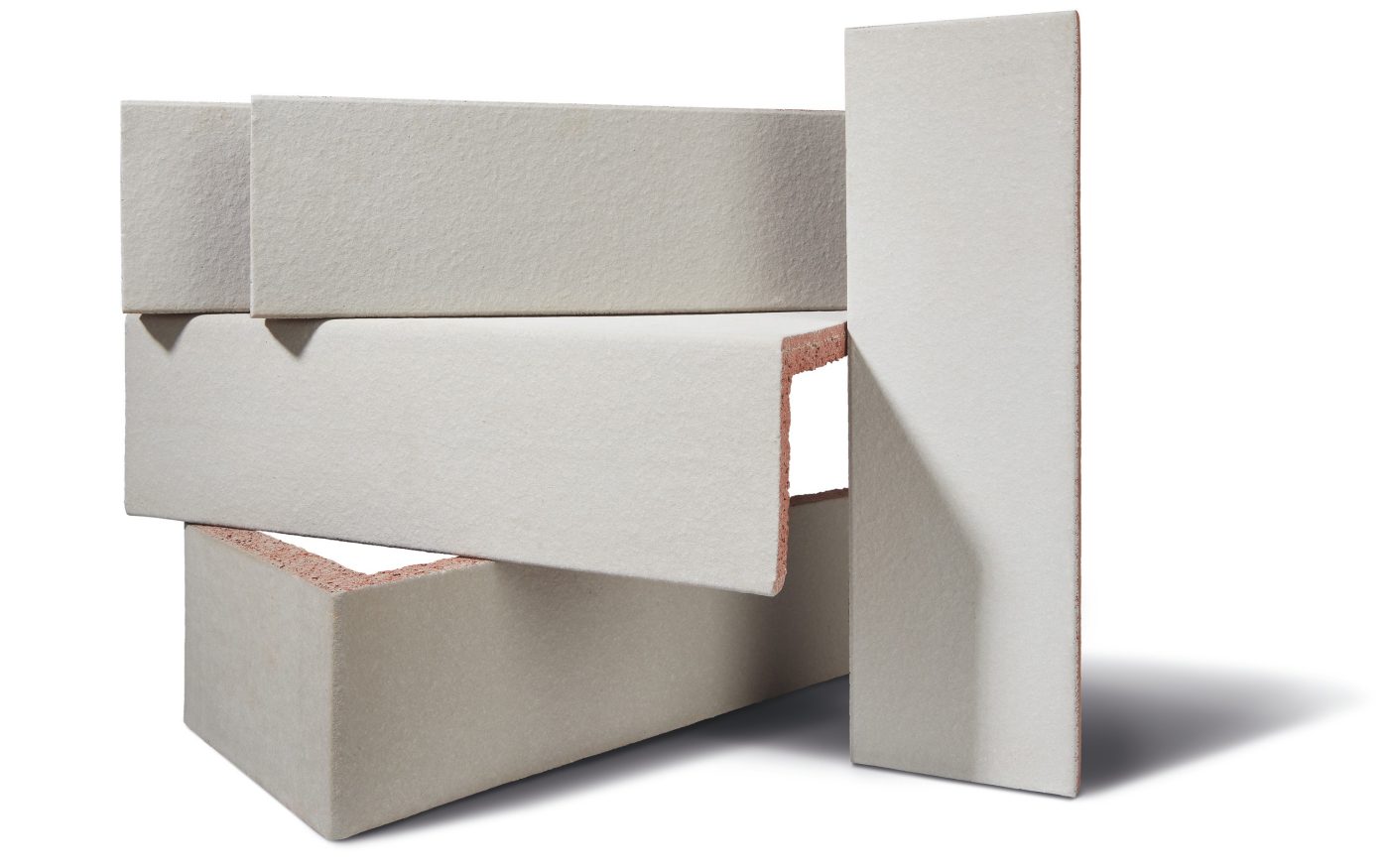

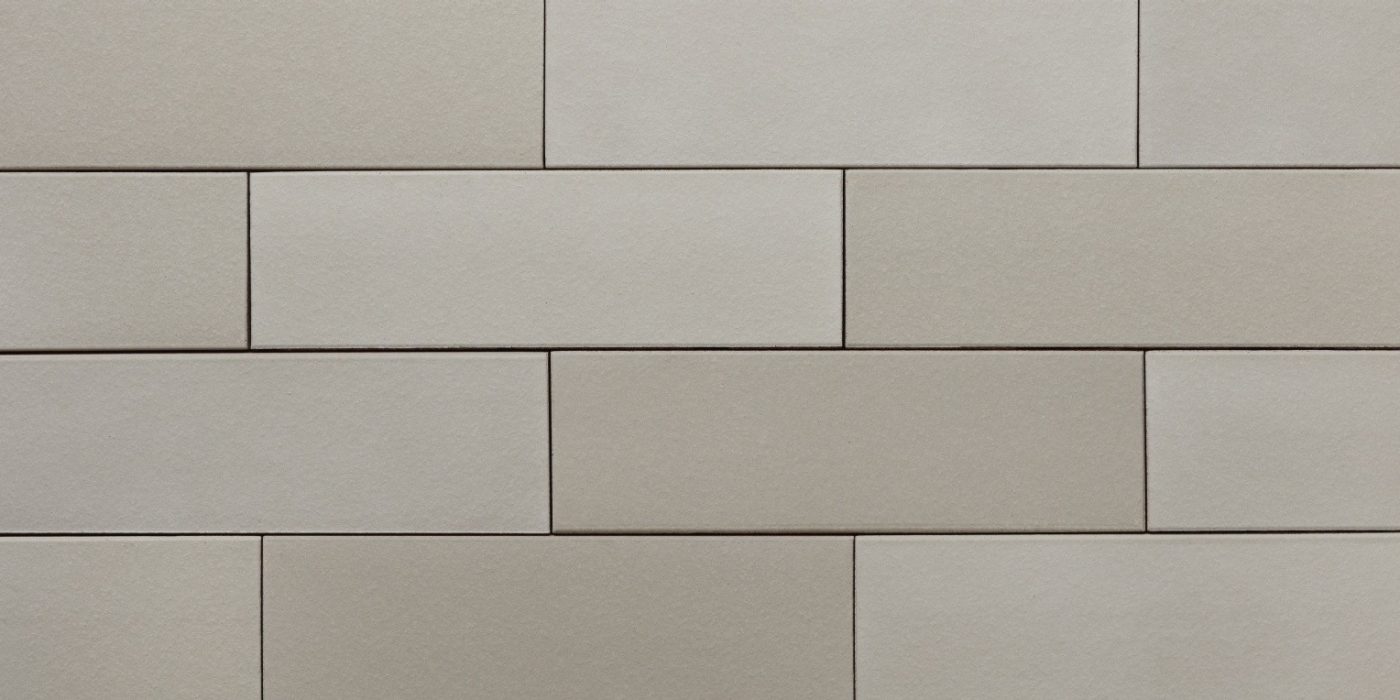

Morning Grey

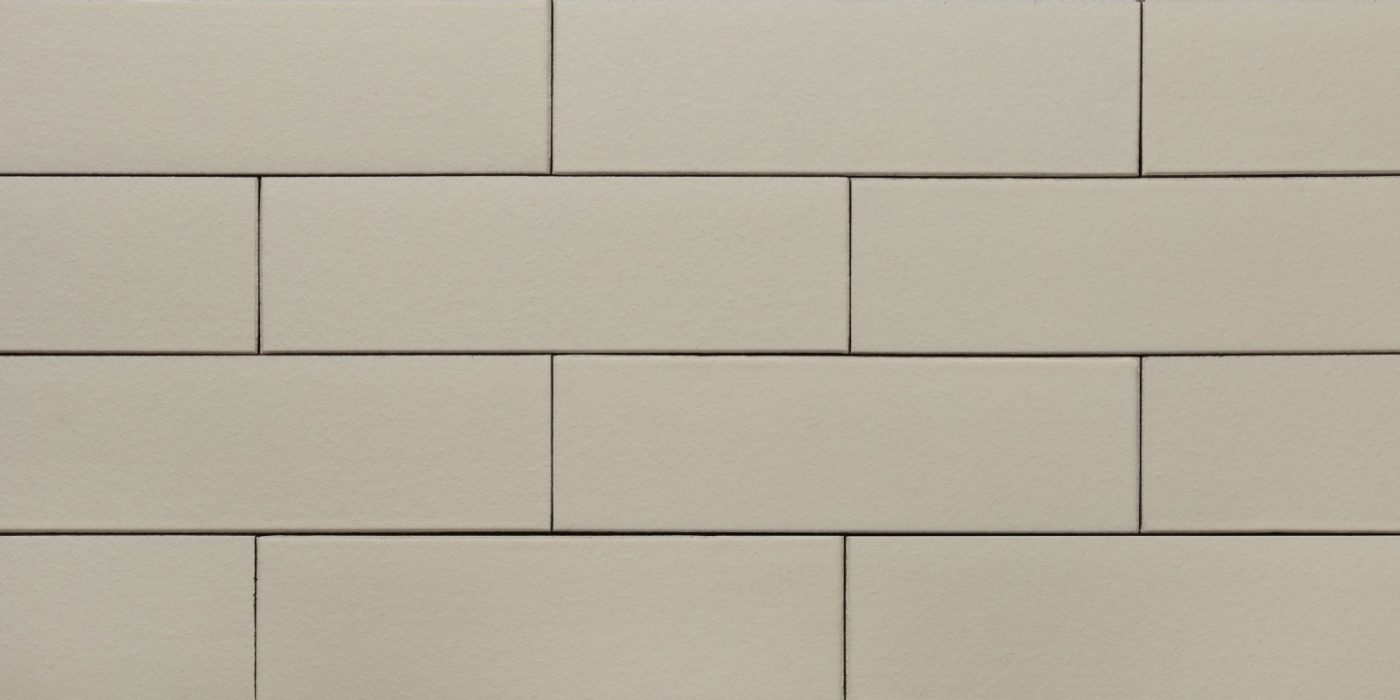

Ming White

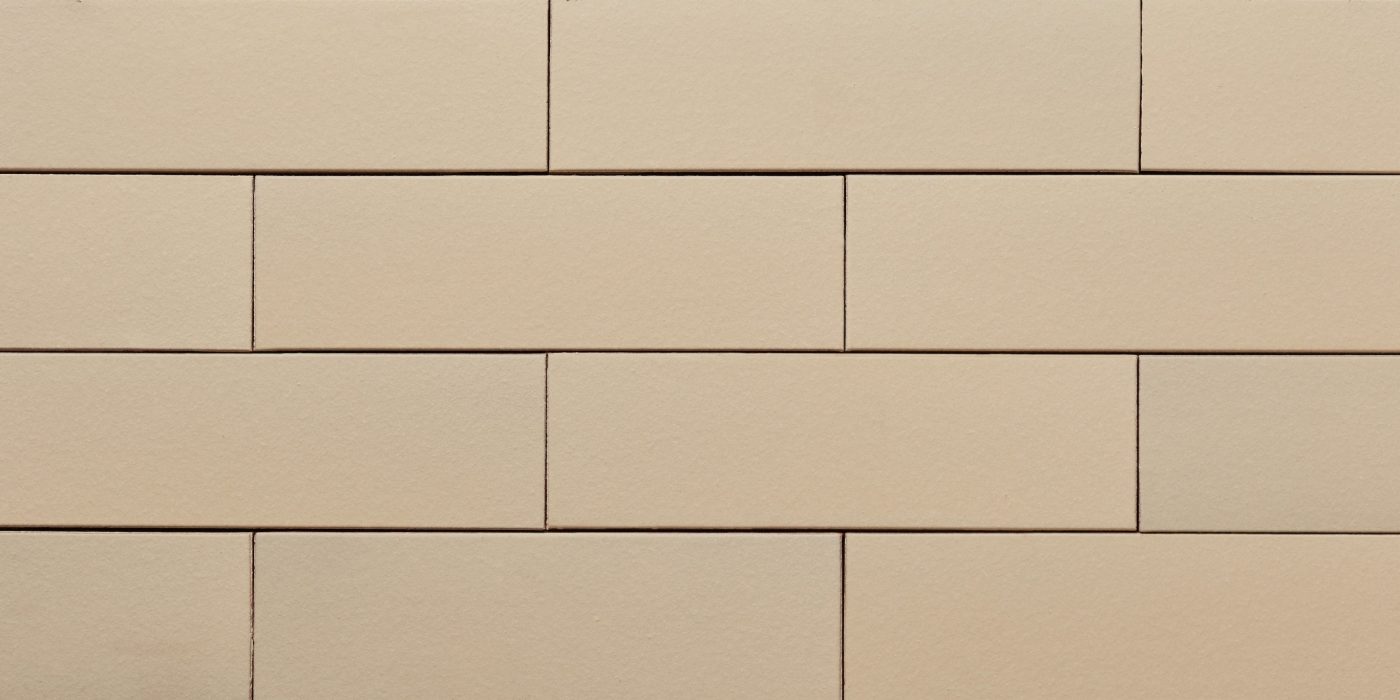

Cotton White



Pelaris – Rustic Finish

All products available in 9mm and 14mm thickness

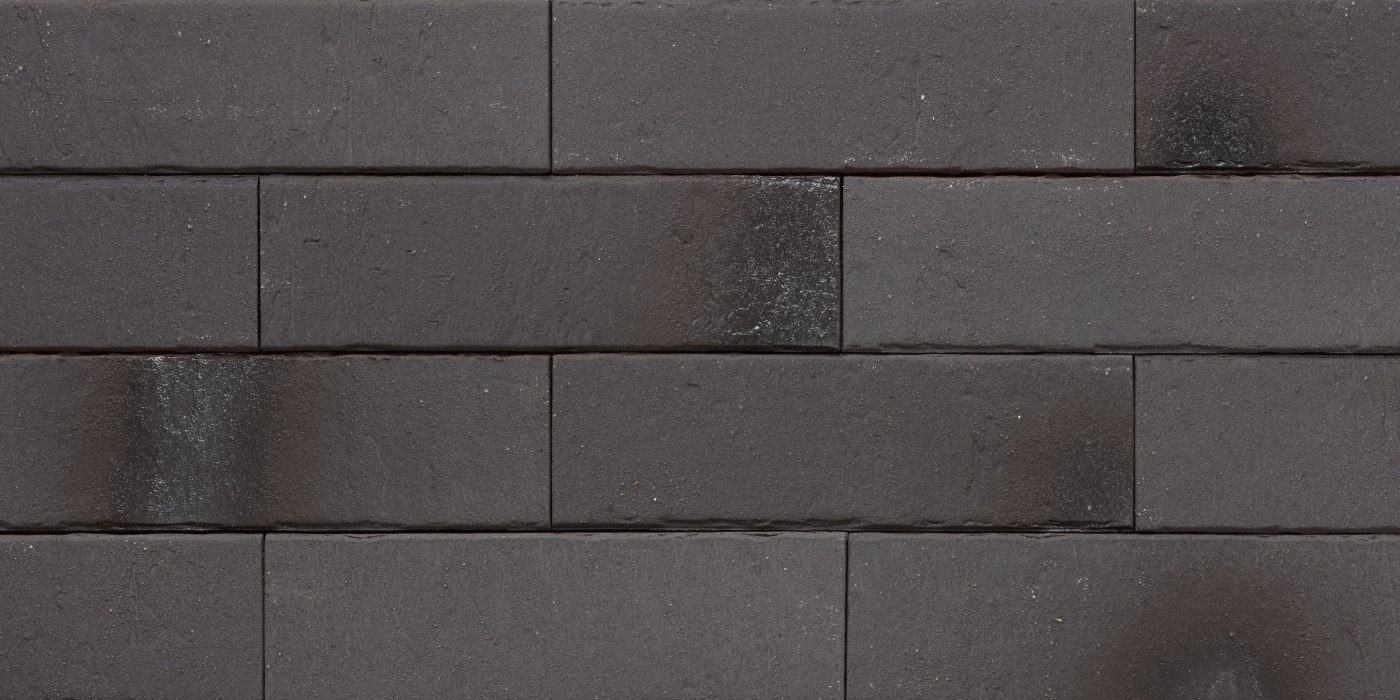

Root Black

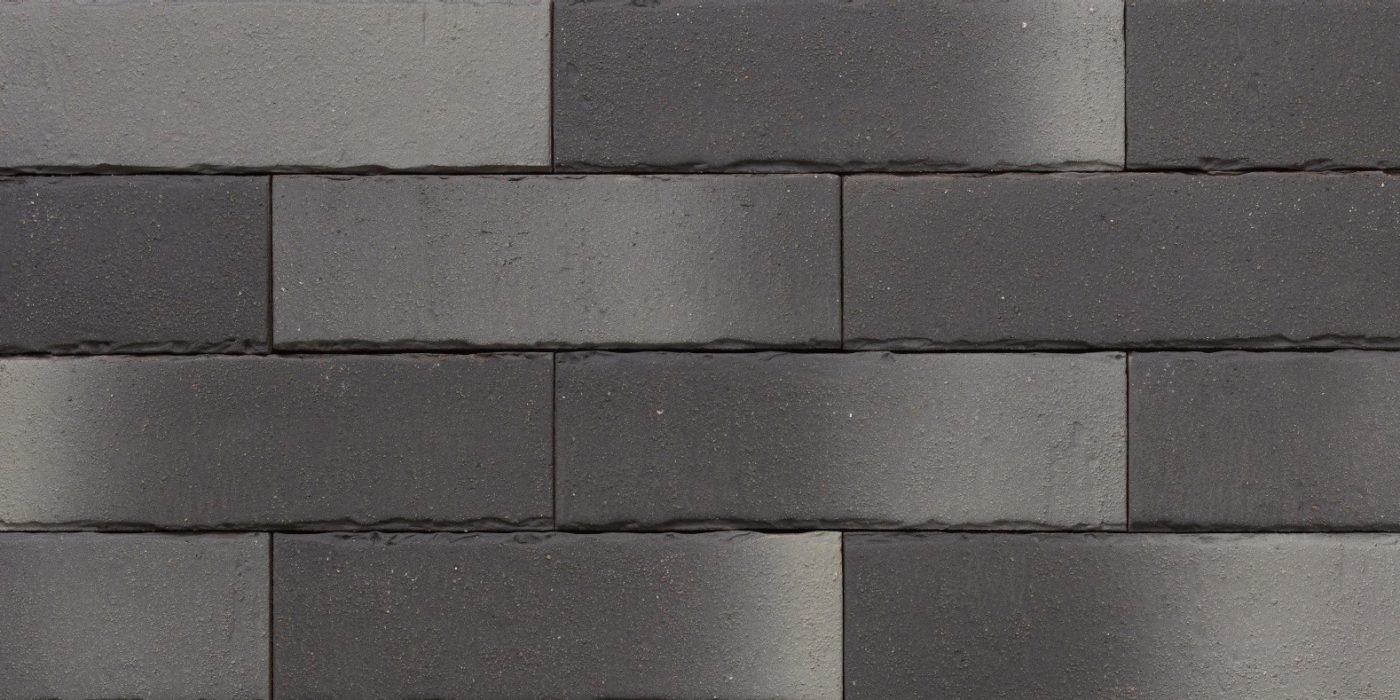

Erie Black

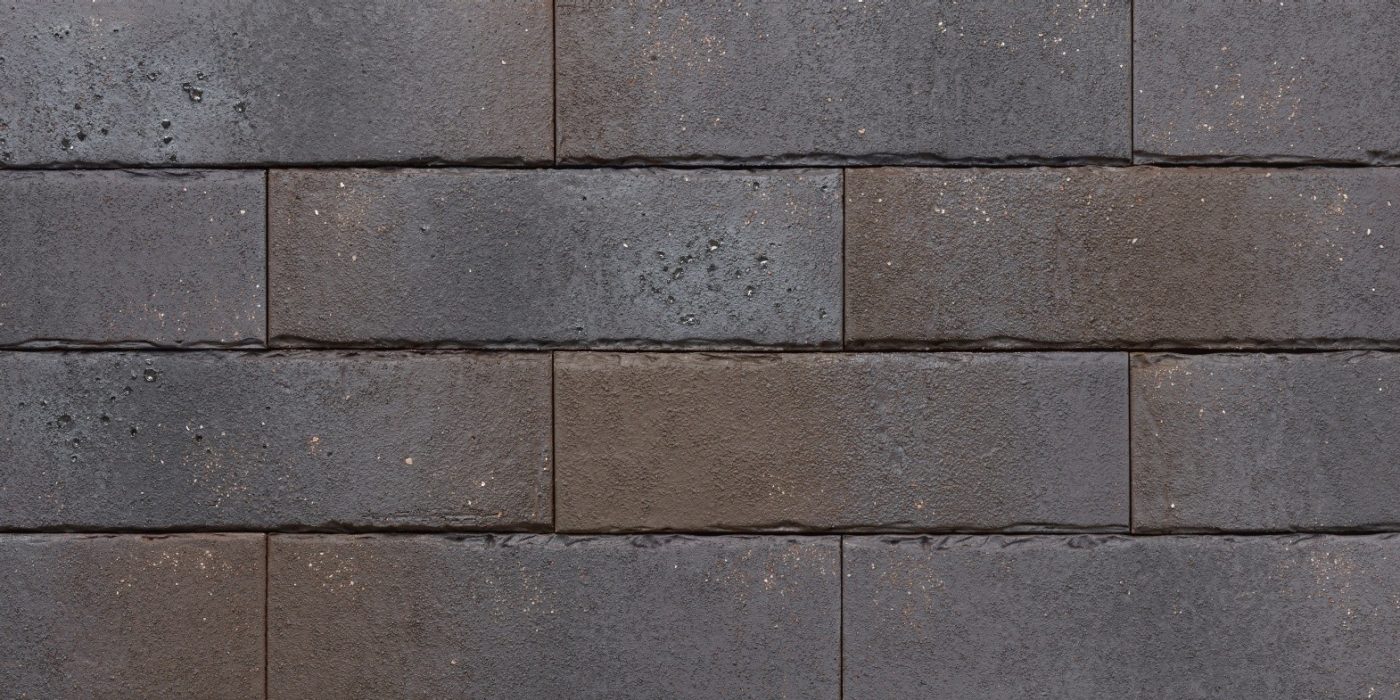

Pecan Brown

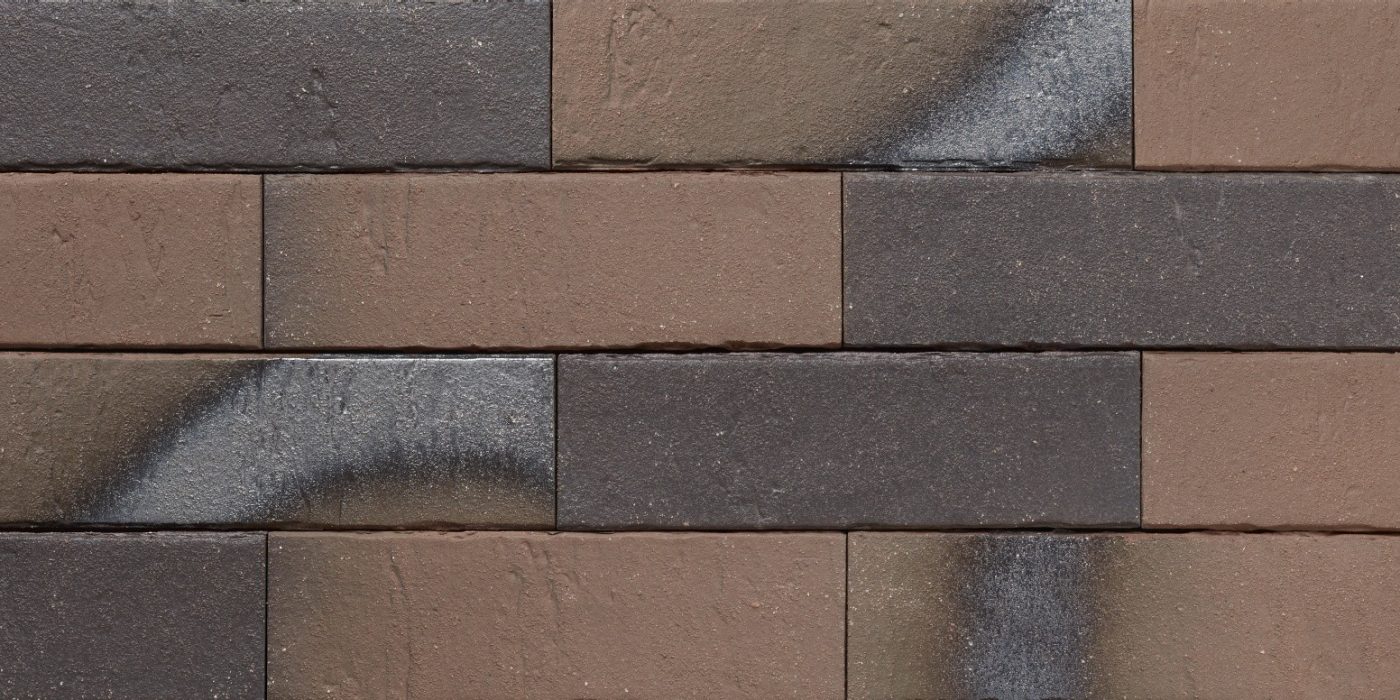

Maroon Brown

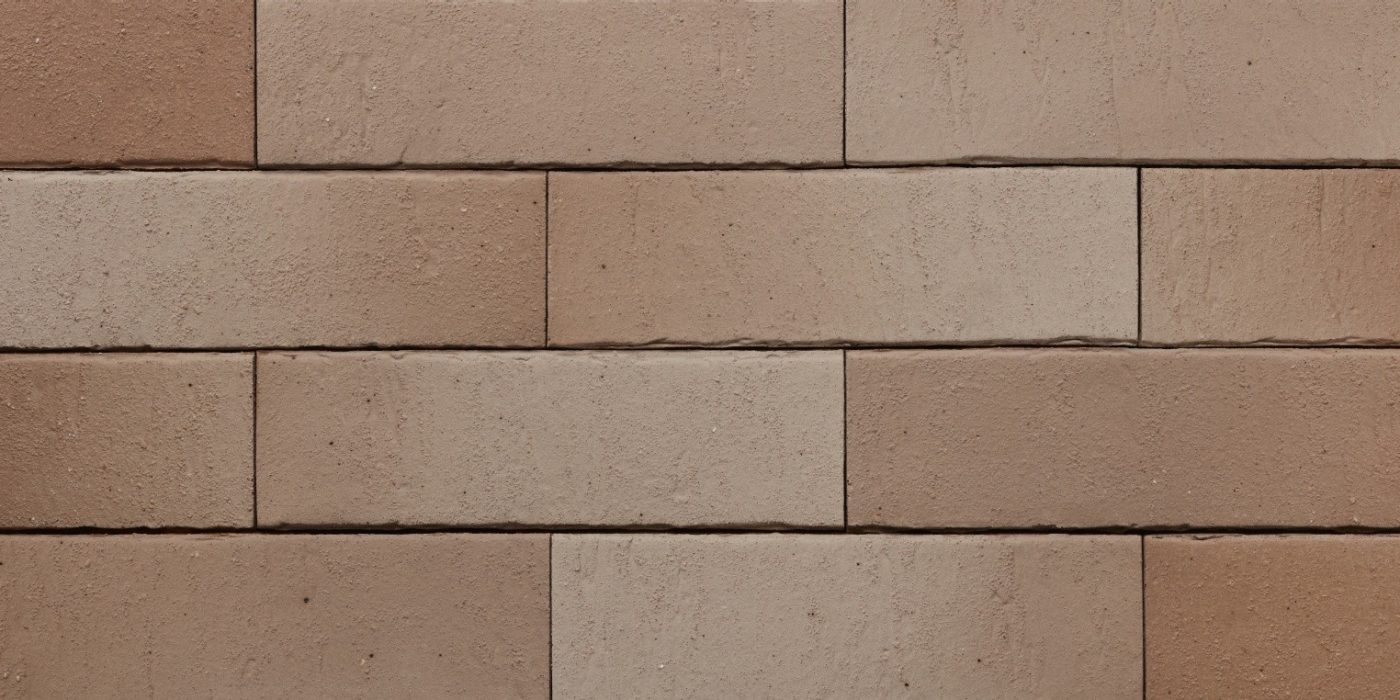

Copper Brown

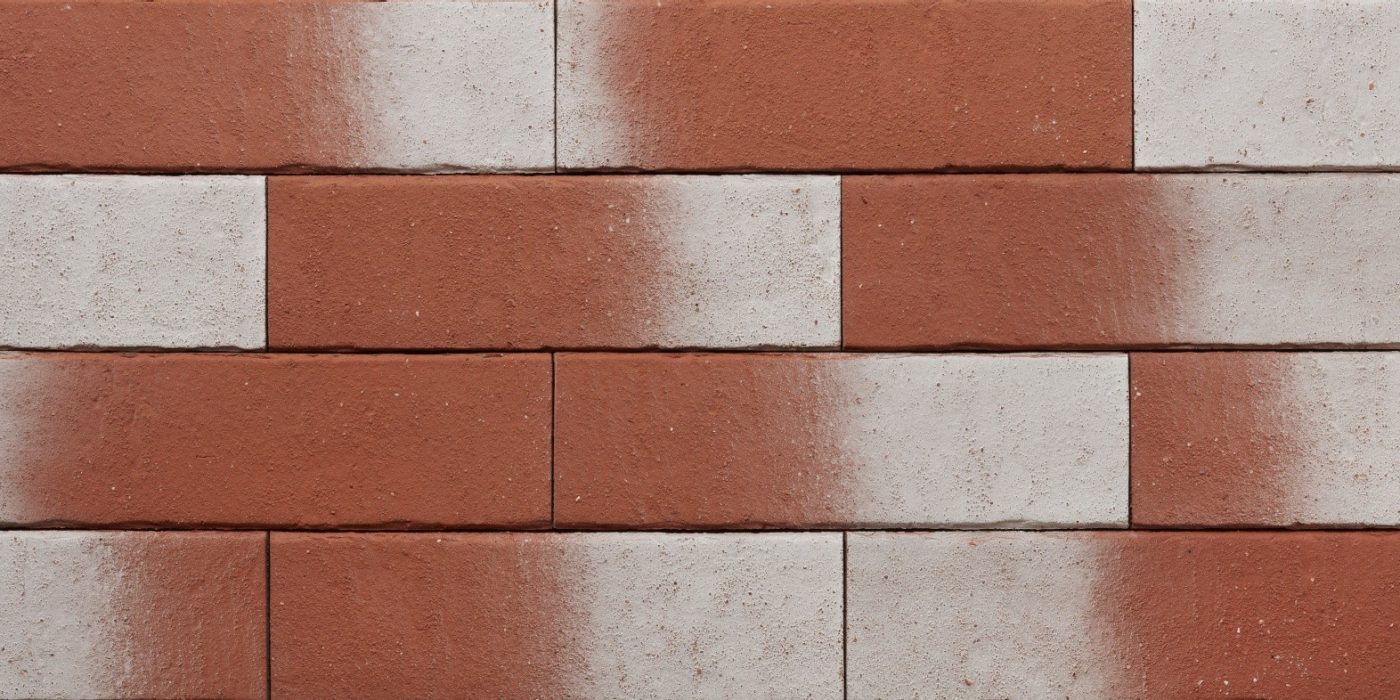

Maca Red

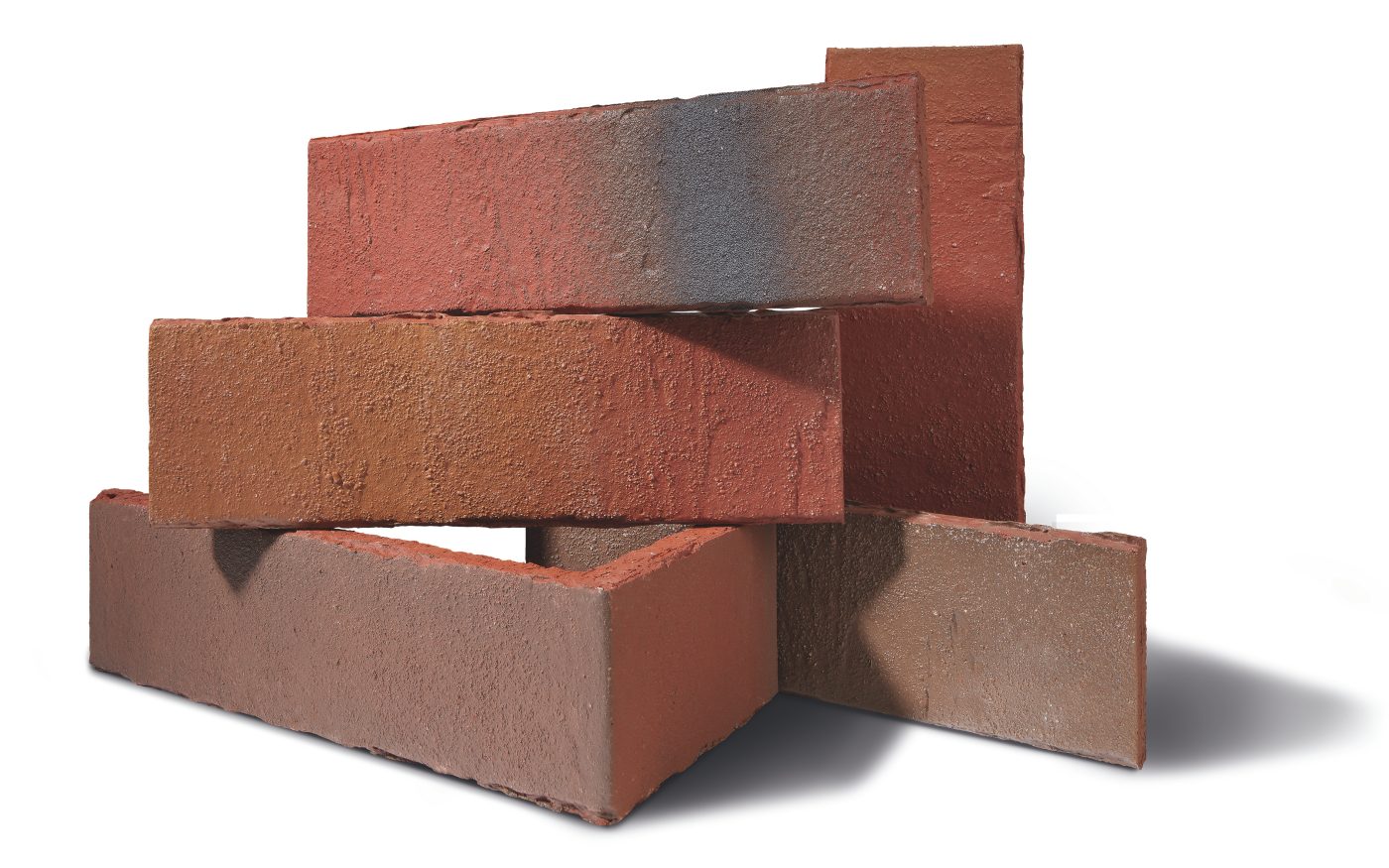

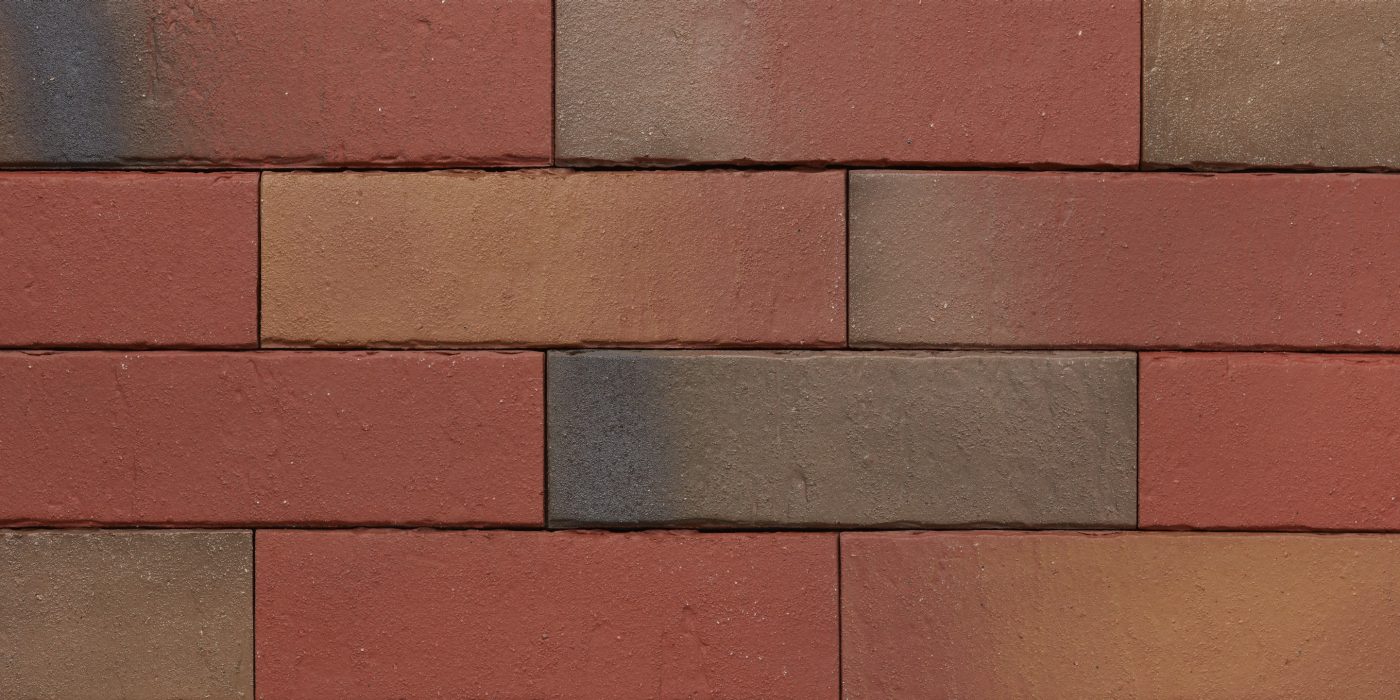

Peru Red

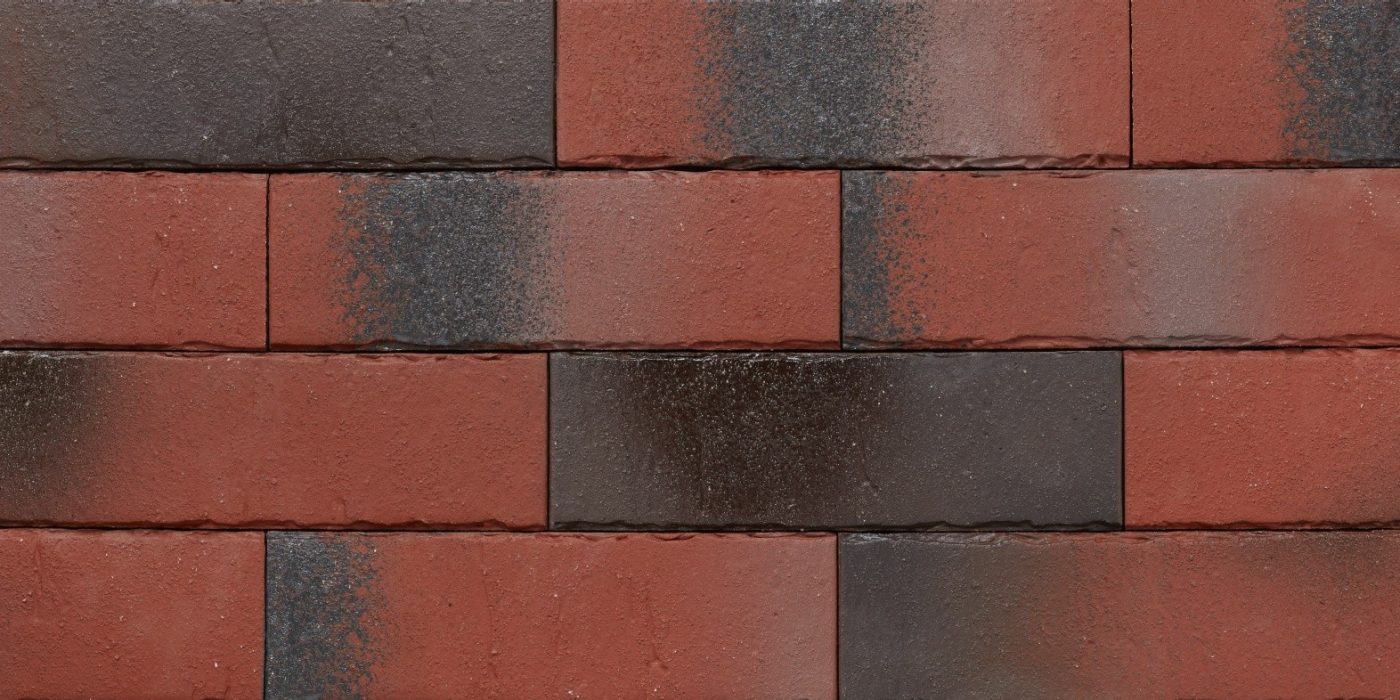

Vivid Red

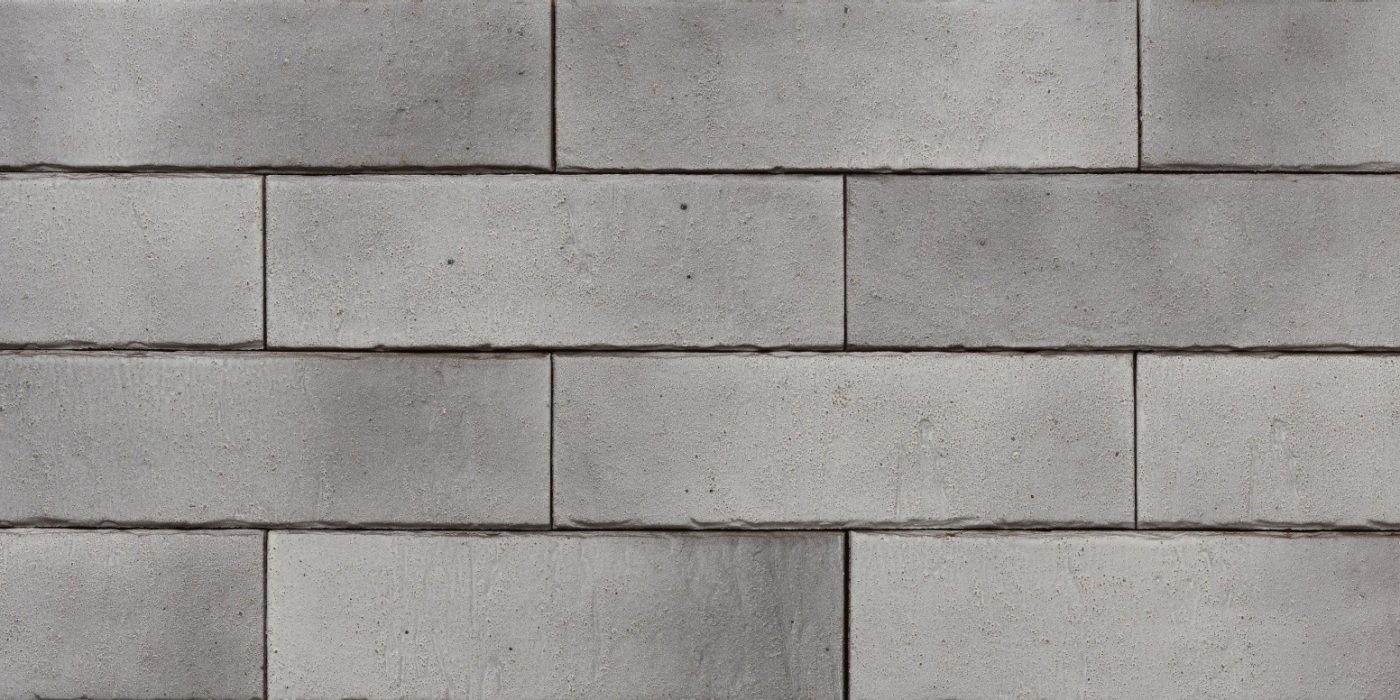

Dim Grey

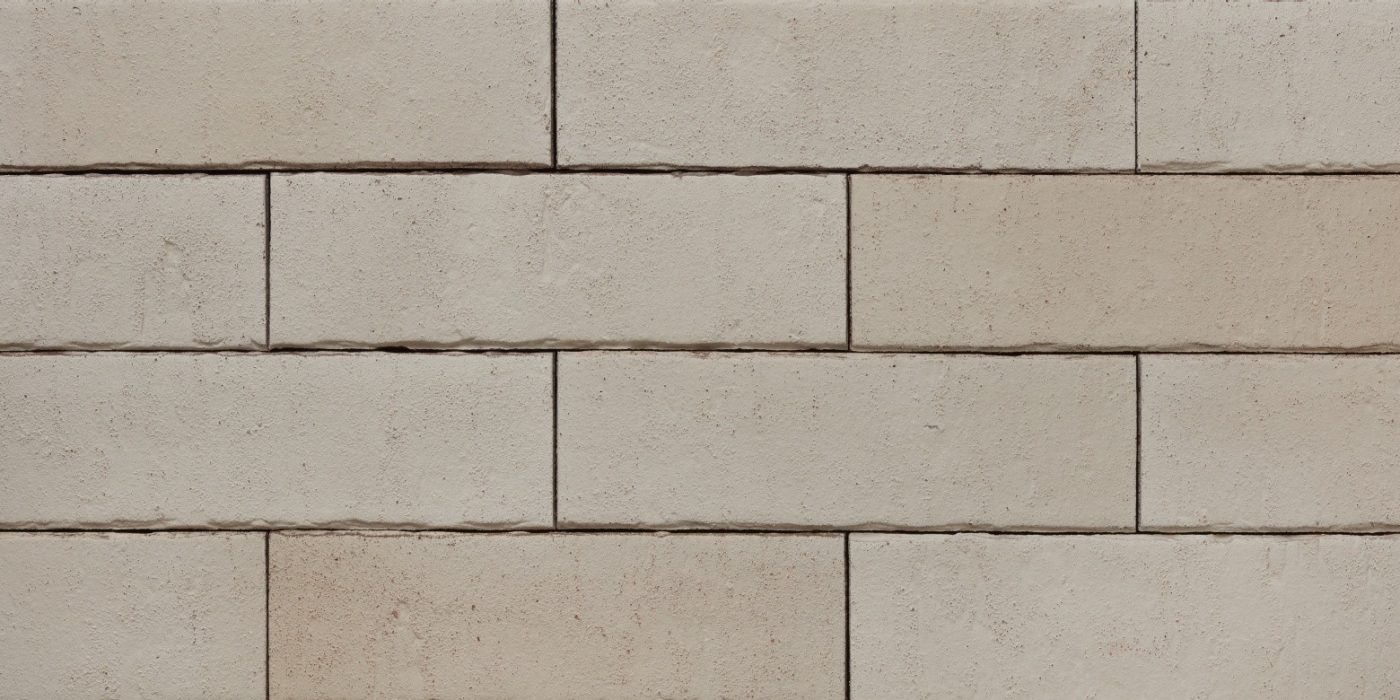

Mantis White/Cream



Fasanis – Sanded Finish

All products available in 9mm and 14mm thickness

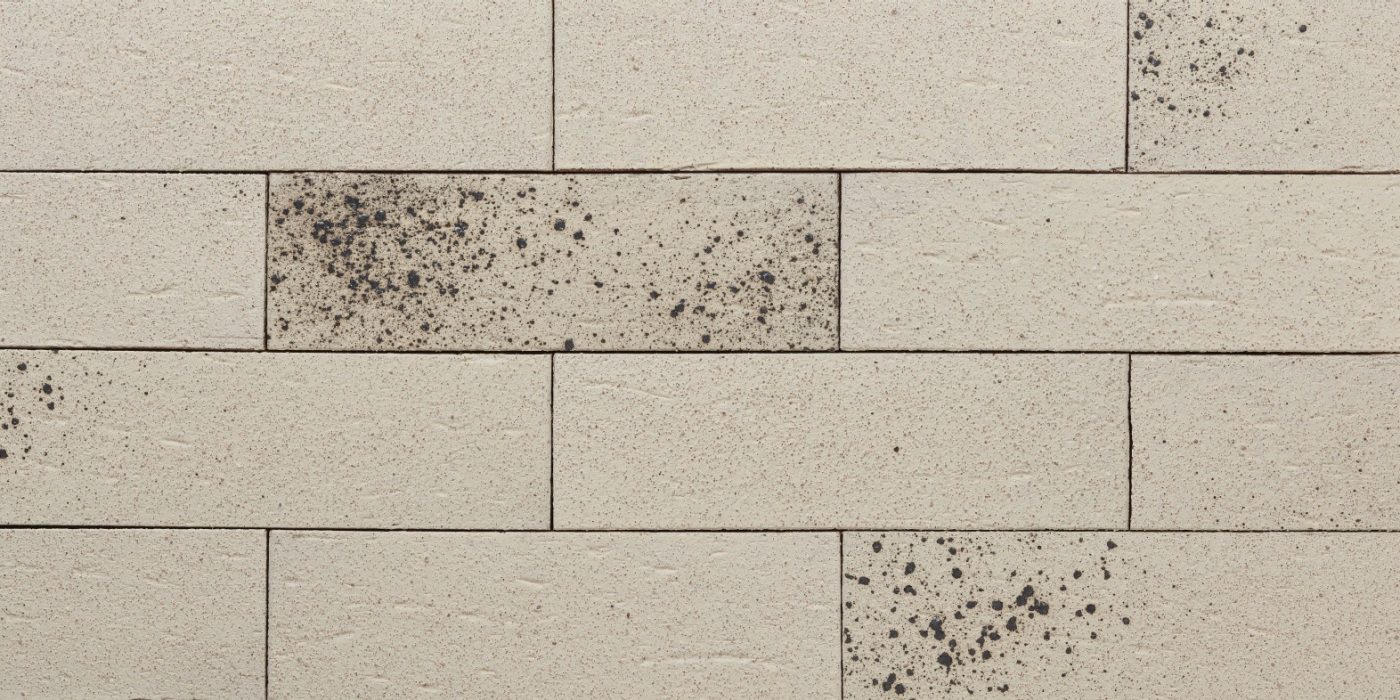

Zebra White

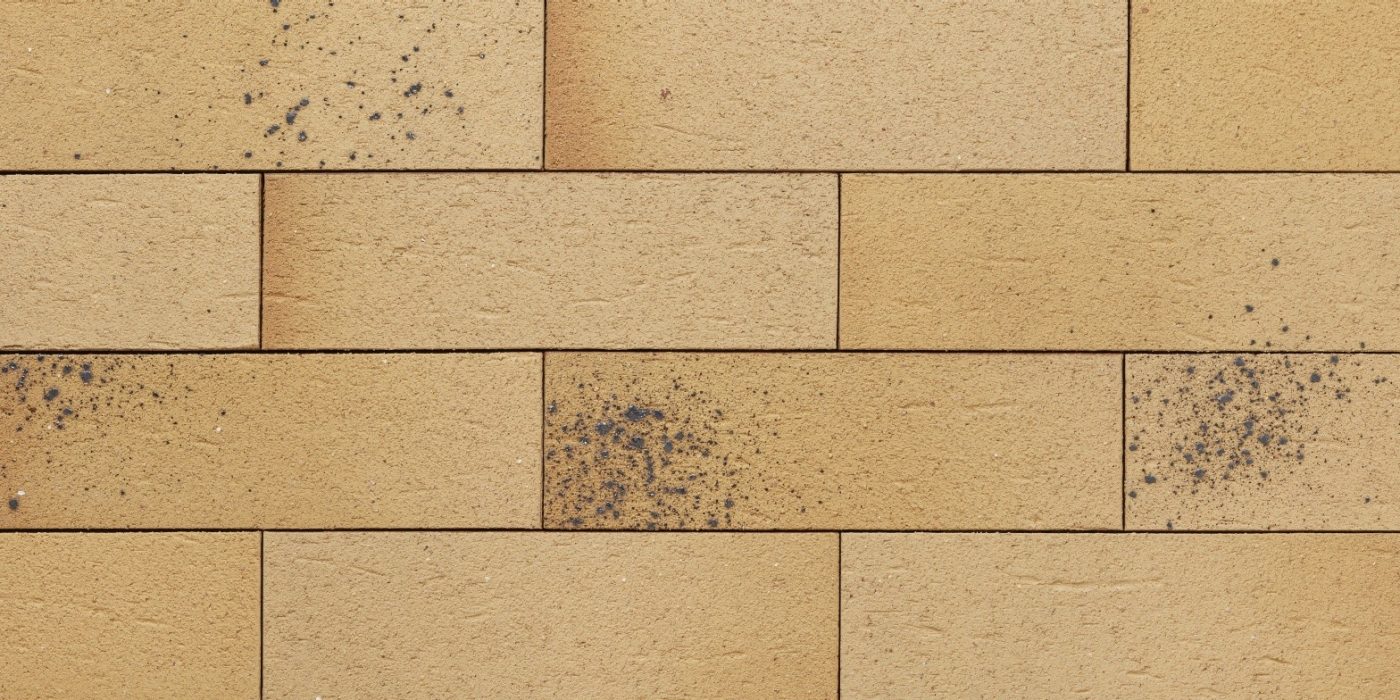

Papaya Yellow

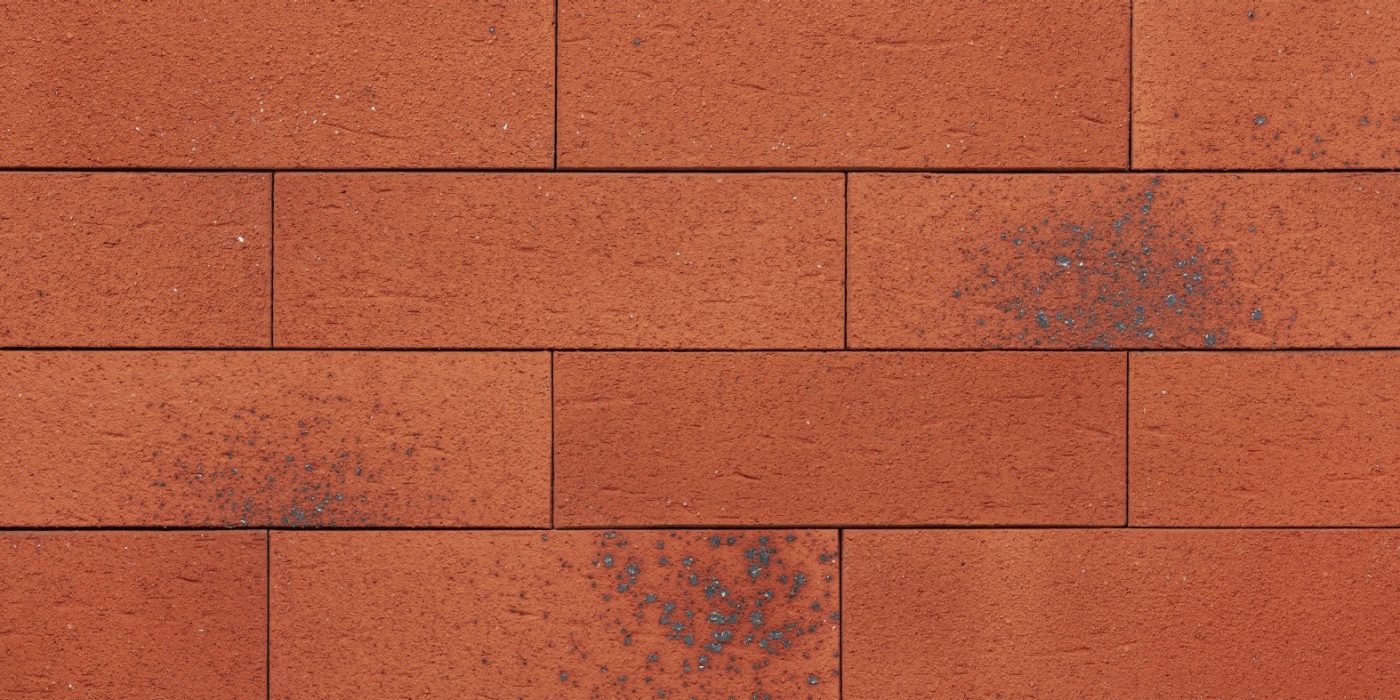

Spicy Red



Technical Data

Size and Weight Information

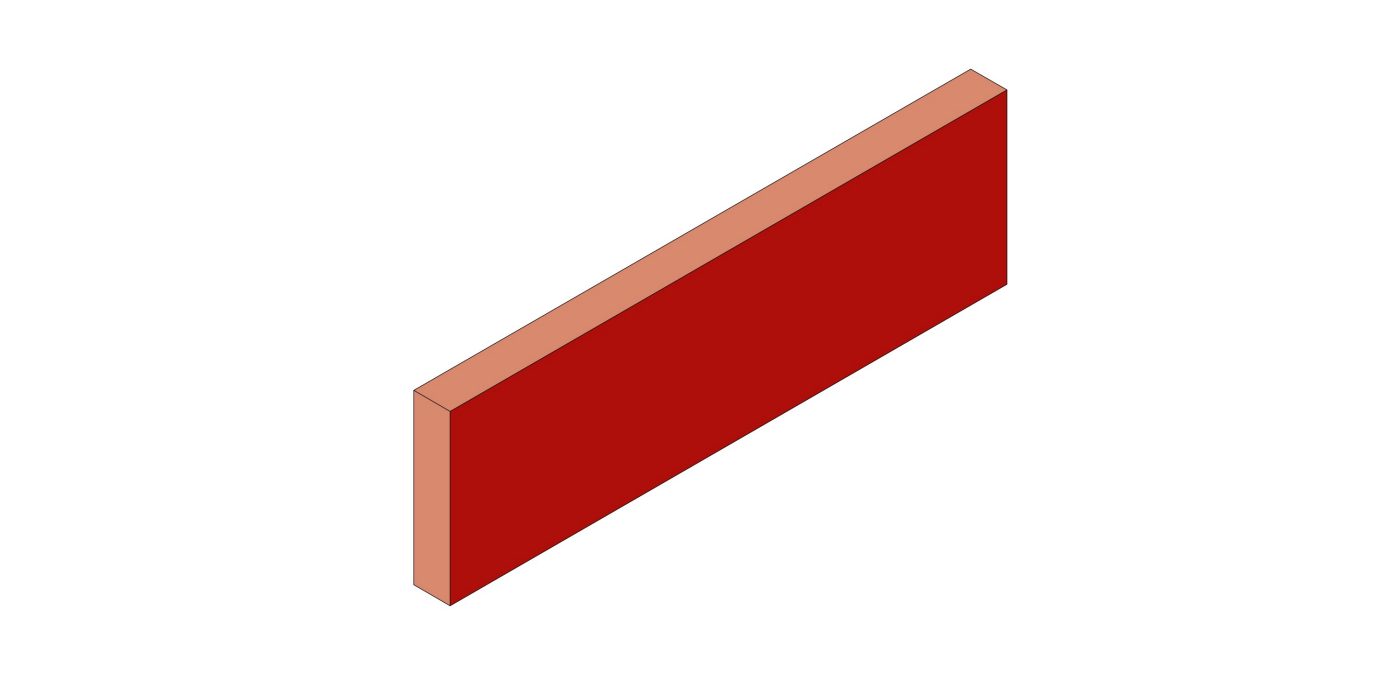

Brick Slip

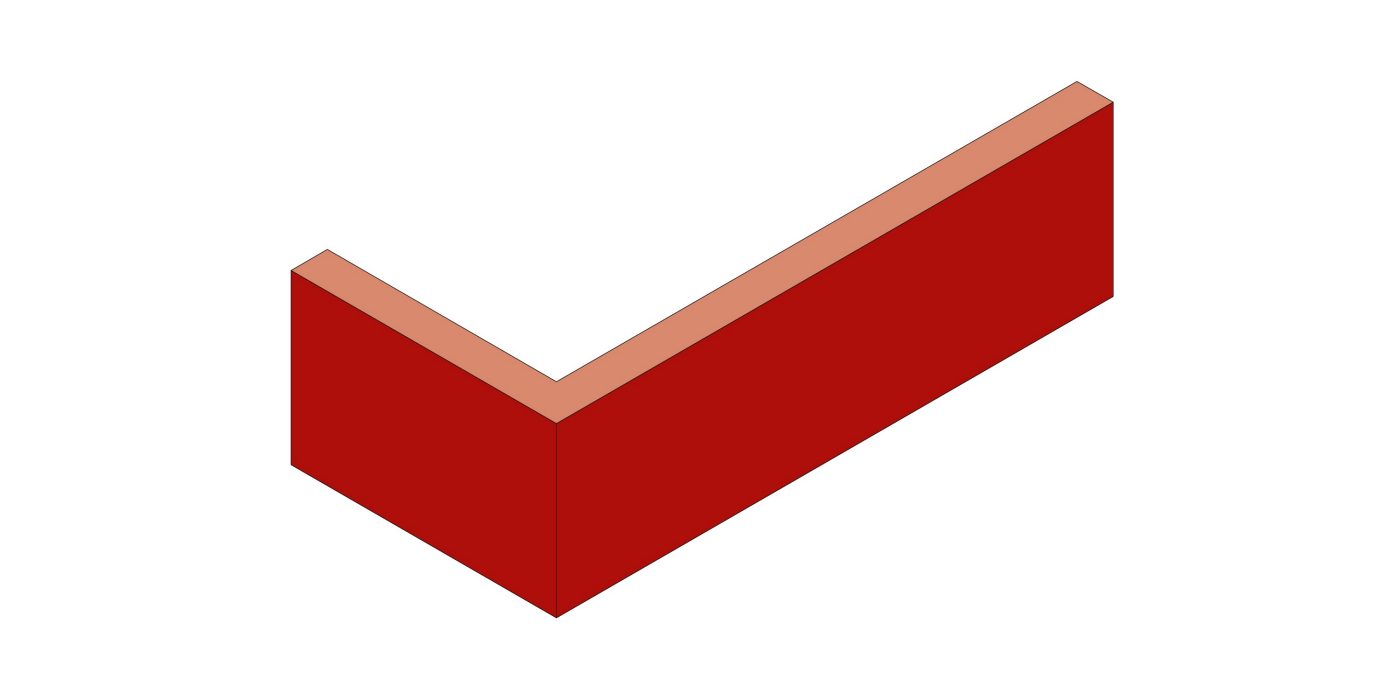

Corner Return

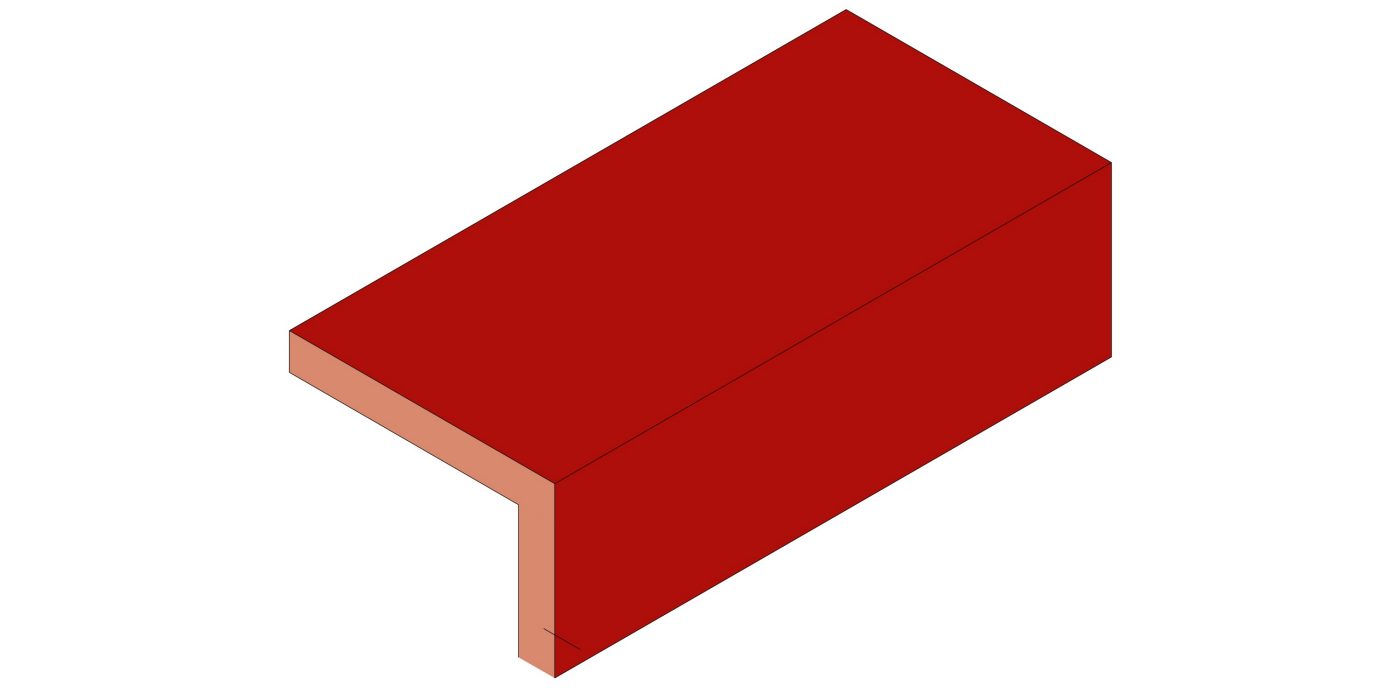

Soffit Return



Product Group

Brick Slip

Brick Slip

Corner Return

Corner Return

Soffit Return

Soffit Return

Thickness (mm)

9

14

9

14

9

14

Dimension (mm x mm)

215 x 65

215 x 65

215 x 65 / 102 x 65

215 x 65 / 102 x 65

215 x 102 / 215 x 65

215 x 102 / 215 x 65

Pieces (m2)

60

60

N/A

N/A

N/A

N/A

Weight (gr.)

300

440

460

650

590

820

Technical Data

Technical Properties

Reaction to Fire

Durability (Freeze/ Thaw)

Tolerance in Length and Height +/- 2 % to a Maximum of +/- 4 mm

Thermal Shock Resistance

Tolerance (Surface/Flatness) +/- 1.5 %

Water Absorption

Pore Radius

Pore Volume

Surface Quality

Performance

A1

Passed – EN ISO 10545-9

Passed – EN ISO 10545-2

Passed – EN ISO 10545-9

Passed – ISO 10545-2

< 3% - Passed EN ISO 10545-3

> 0,2 μm - Passed DIN 66 133:1993-06

> 20 mm3/g - Passed DIN 66 133:1993-06

A minimum of 95% of the brick slips shall be free from visible defects that would impair the appearance of a major area of brick slips

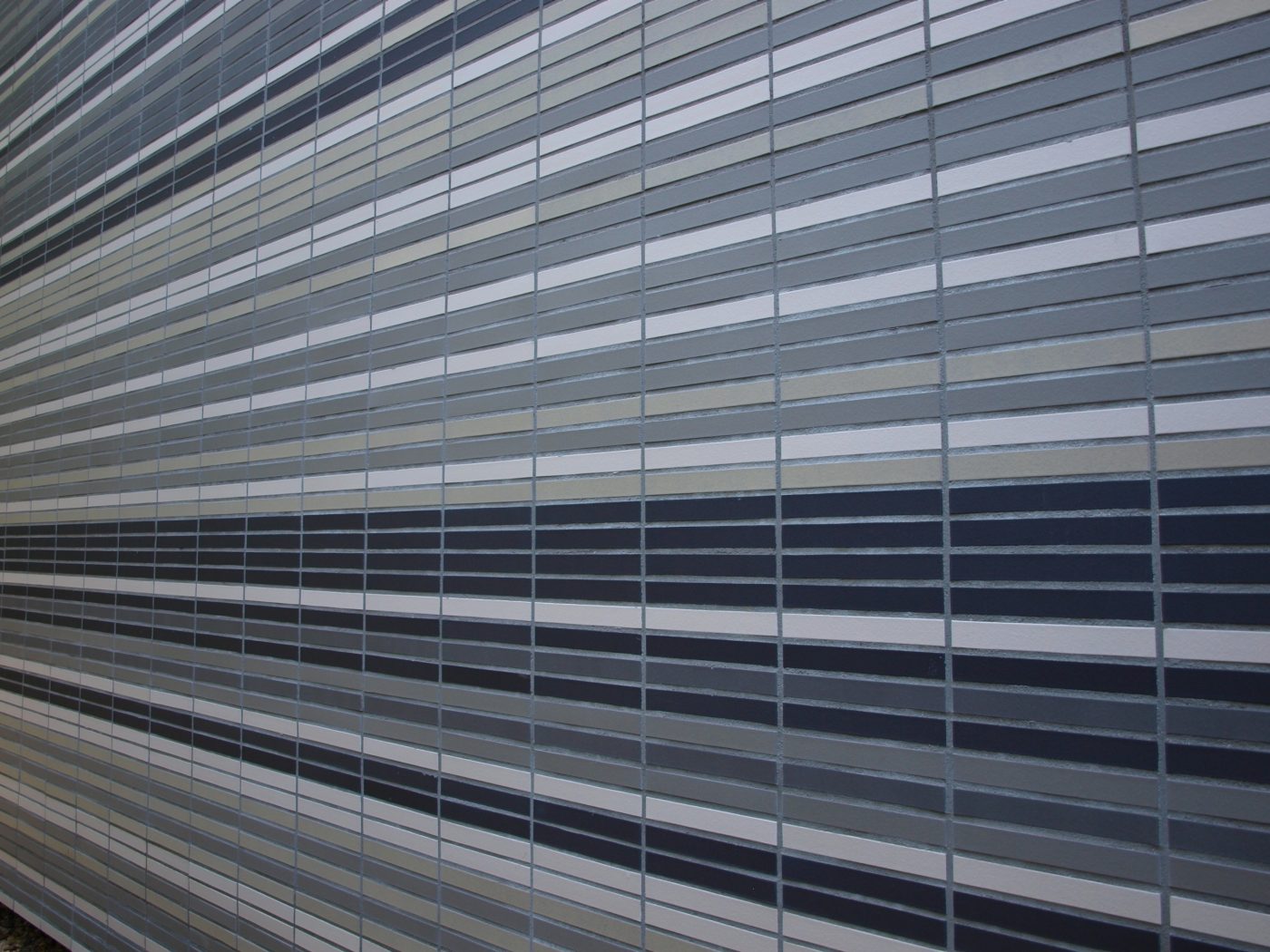

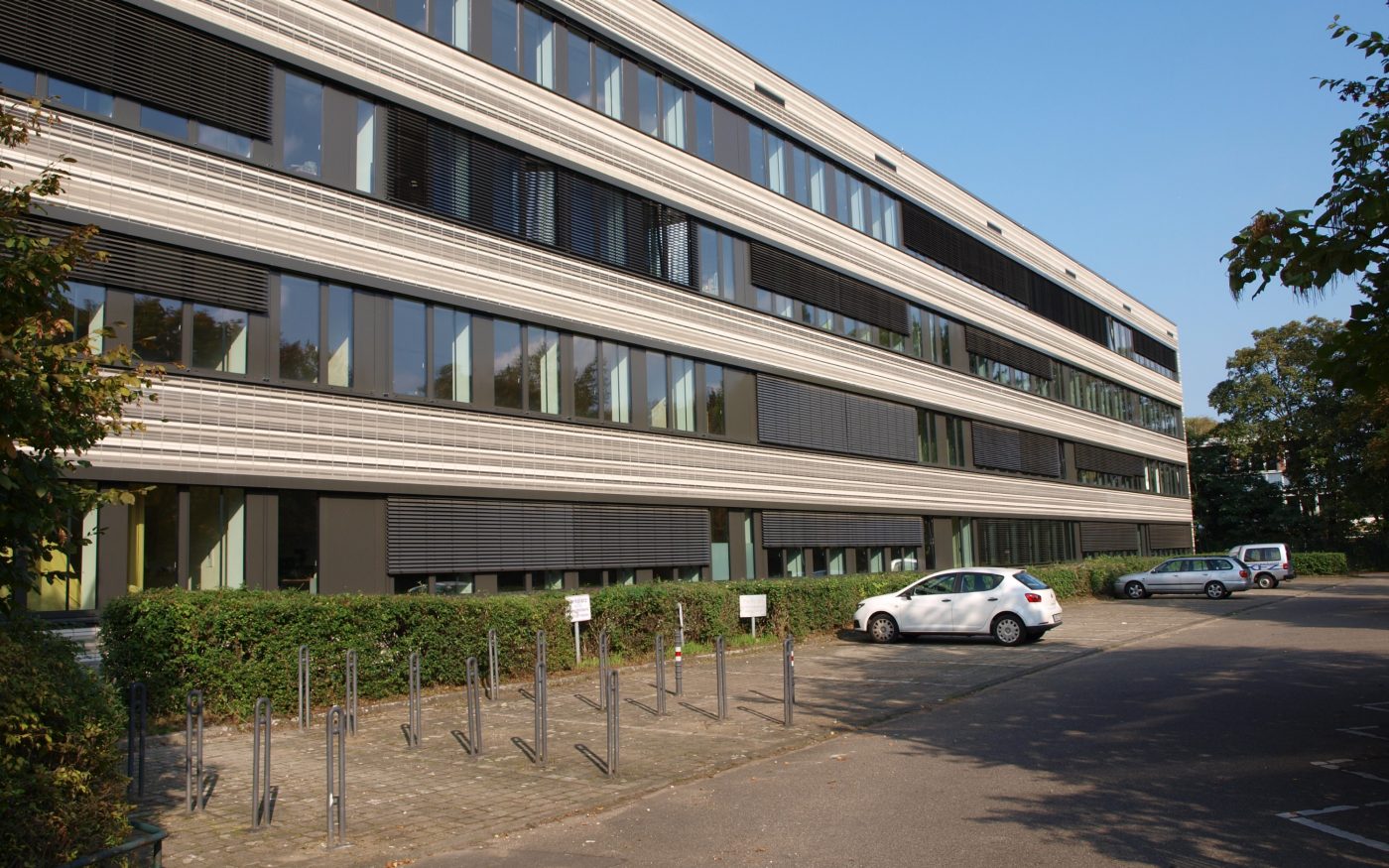

Featuring Ammonit tiles (not Corium)
