Dry Fix Systems

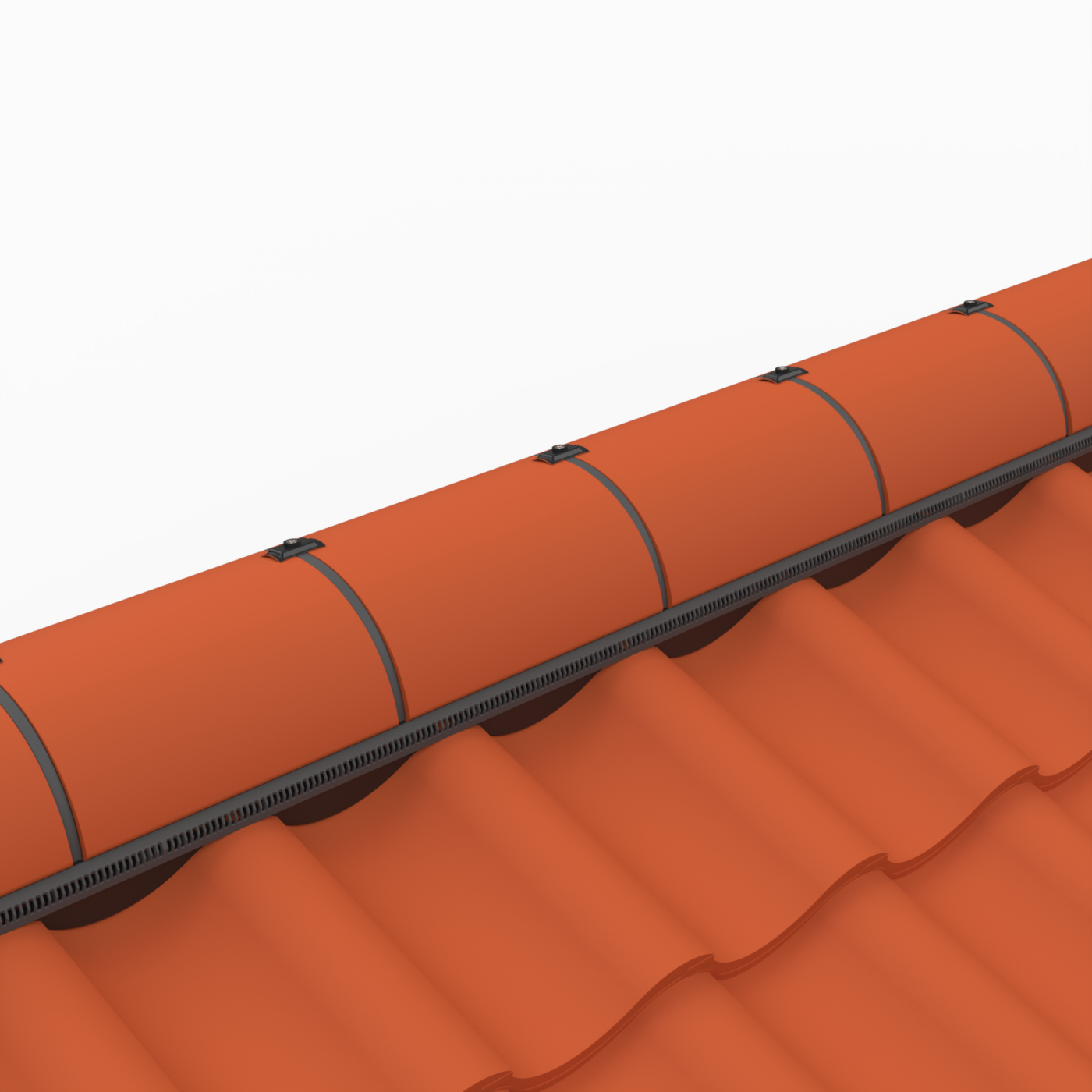

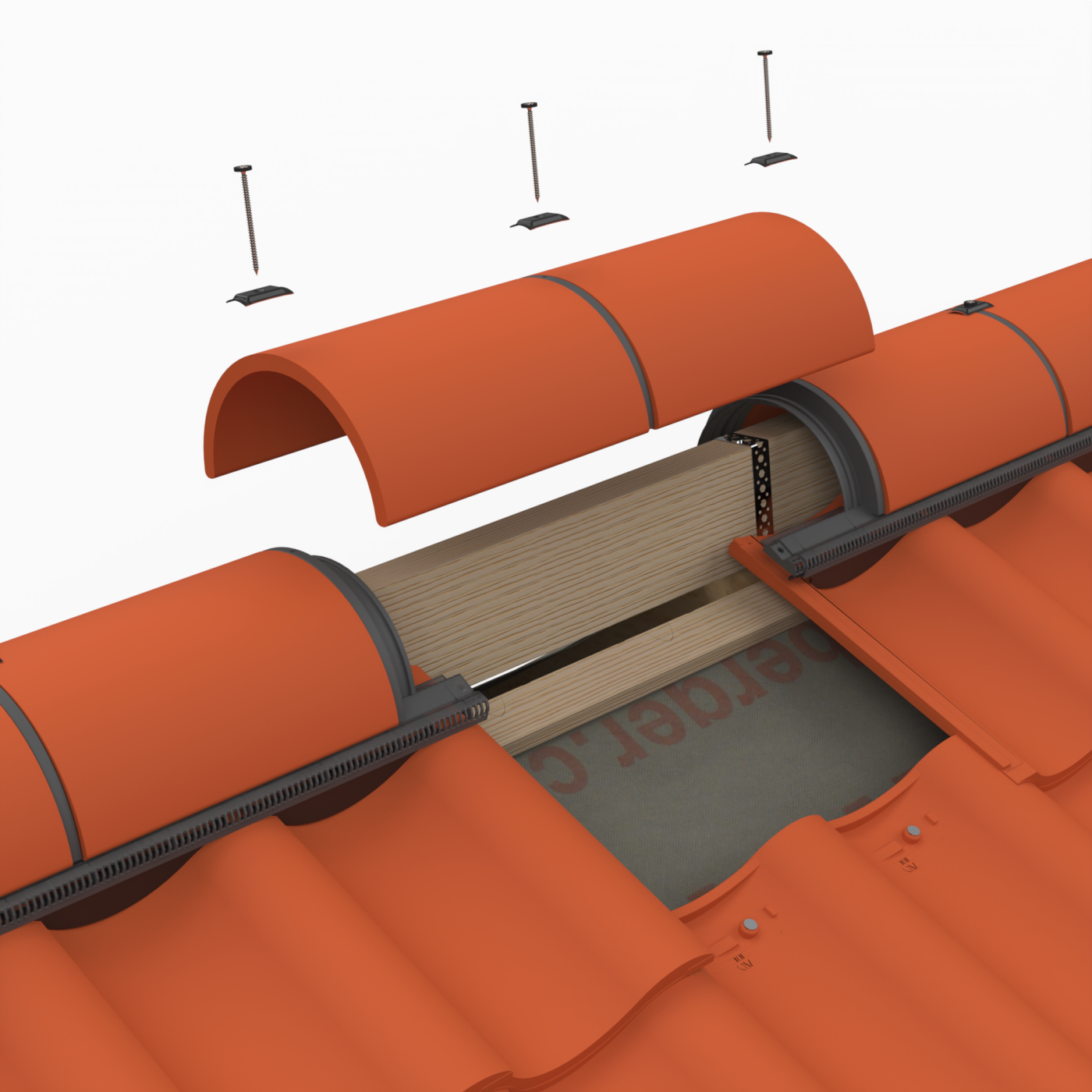

Our Profile Ridge system has been designed to provide mechanically fixed, continuous ventilated ridge detail that is aesthetically traditional in appearance.

Components: Kits to suit 6m of ridge

• Profile Dry Ridge Ventilation Strip
• Ridge Joint
• Batten Straps
• Screws, washers and fixing plates

Sold separately: Profile filler kits to suit 6m of ridge

• Profile fillers to suit profiled tiles

Performance: Profile Ridge provides 5000mm²/linear metre free vent area per side.

Compatibility: Available in four options for use with

• Concrete and Duracoat® Half Round Ridges 457mm
• Concrete and Duracoat® Multi Angle Ridges 457mm
• Clay Half Round Ridges 305mm
• Clay Koramic Half Round 325mm

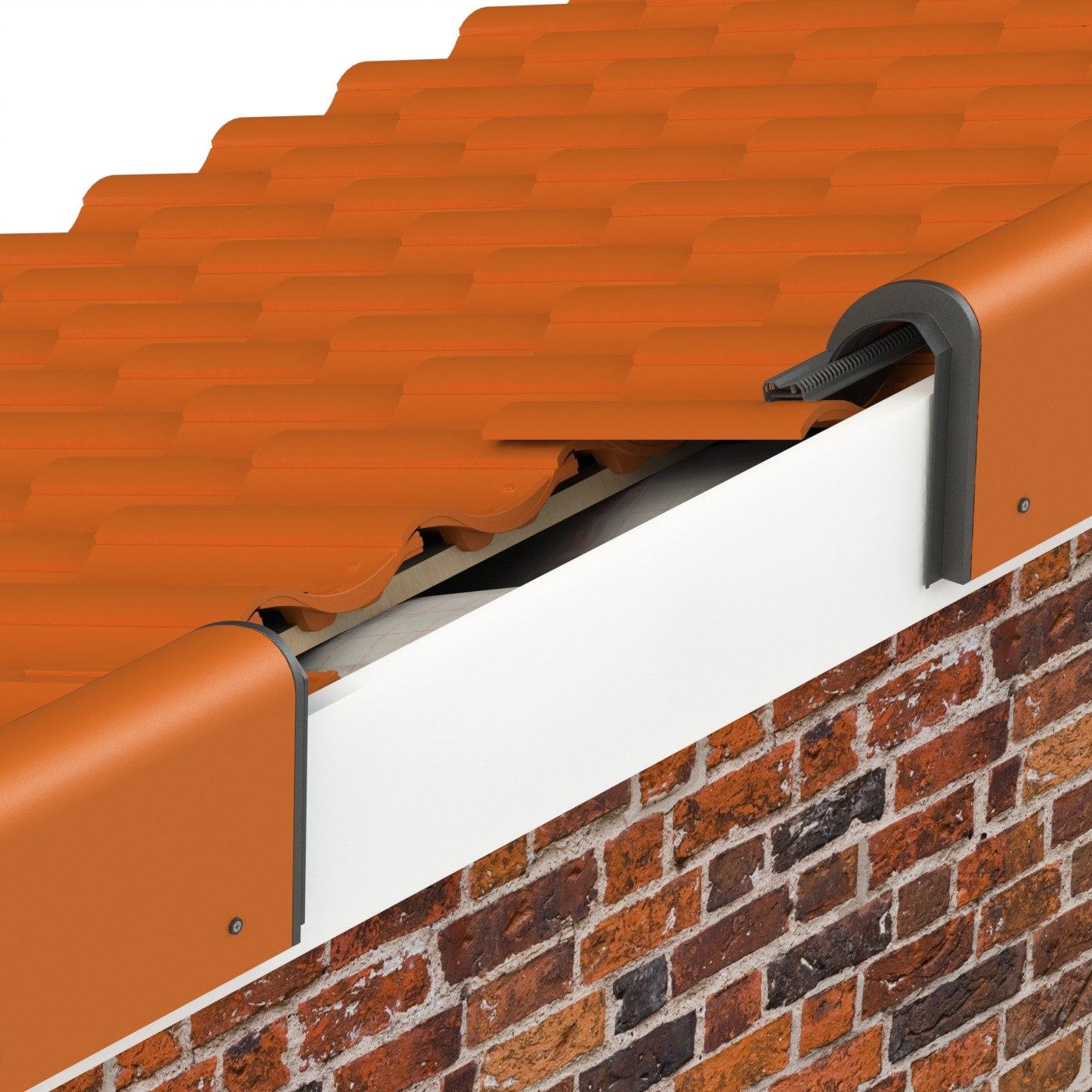

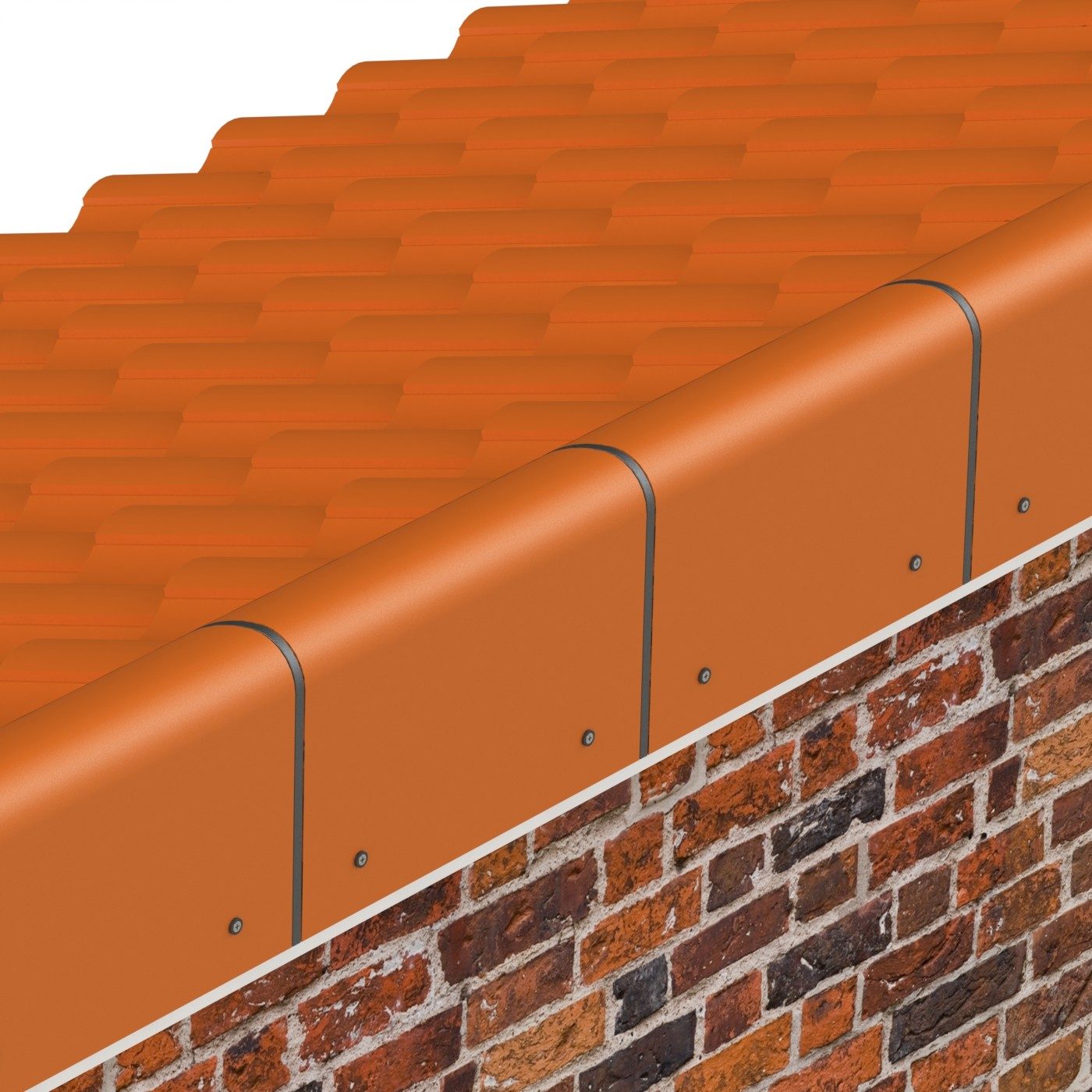

The Profile Mono Ridge system provides an efficient seal between each ridge, giving the appearance of a 10mm mortar joint.

Components: Kits to suit 6m of ridge

• Profile Dry Ridge Ventilation Strip
• Mono Ridge Joint
• Screws, washers and spacers

Sold separately: Profile filler kits to suit 12m of mono ridge

• Profile fillers to suit profiled tiles

Performance:
Profile Ridge provides 5000mm²/linear metre free vent area per side.

Compatibility:
Available in three options for use with:

• Concrete and Duracoat® Half Round Ridges 457mm
• Concrete and Duracoat® Multi Angle Ridges 457mm
• Clay Half Round Ridges 305mm

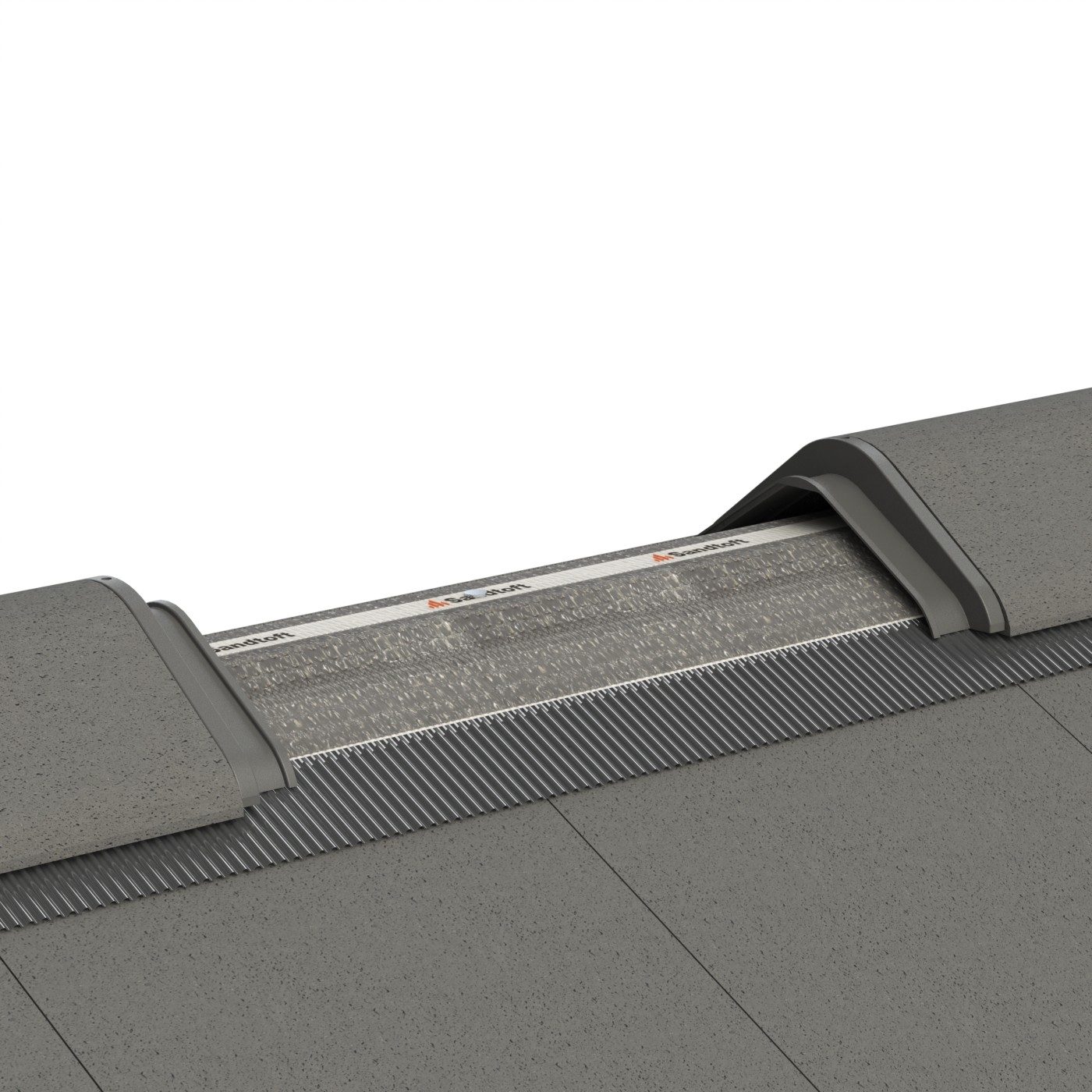

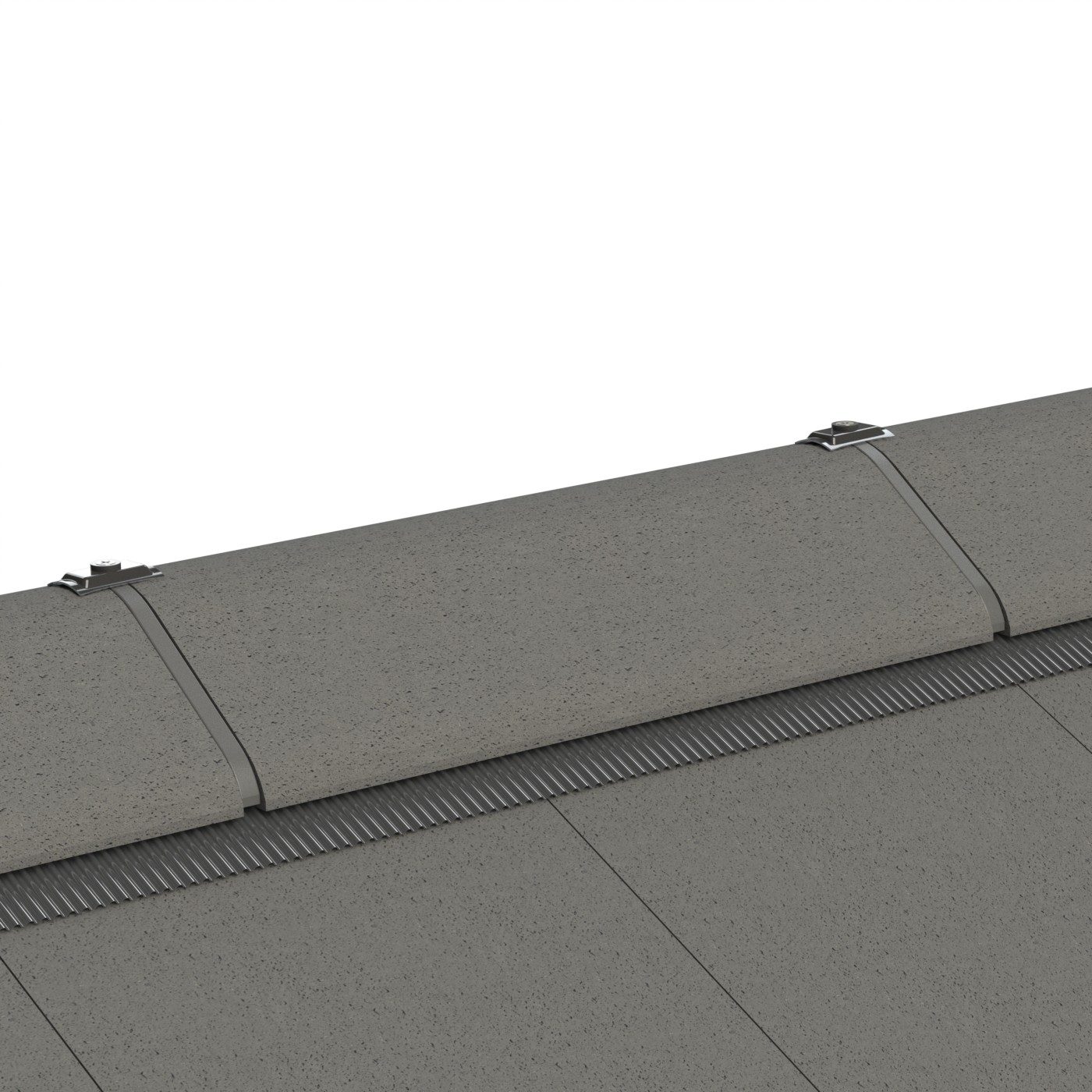

The Sandtoft Roll Ridge system is an extremely quick roll out system that uses a flexible roll to enable installation with varying tile profiles.

Components: Kits to suit 6m of ridge

• Ventilated ridge roll
• Ridge joints
• Batten straps
• Screws, washers and fixing plates

Performance:
Roll Ridge provides 5000mm²/linear metre free vent area per side.

Compatibility:
Roll ridge kits to suit 6m of ridge

Available in three options for use with:

• Concrete and Duracoat® Half Round Ridges 457mm
• Concrete and Duracoat® Multi Angle Ridges 457mm*
• Clay Half Round Ridges 305mm

Suitable for use with most clay, concrete tiles and slates (excluding sandfaced tiles).

*This kit suits both Ridge and Hip Systems

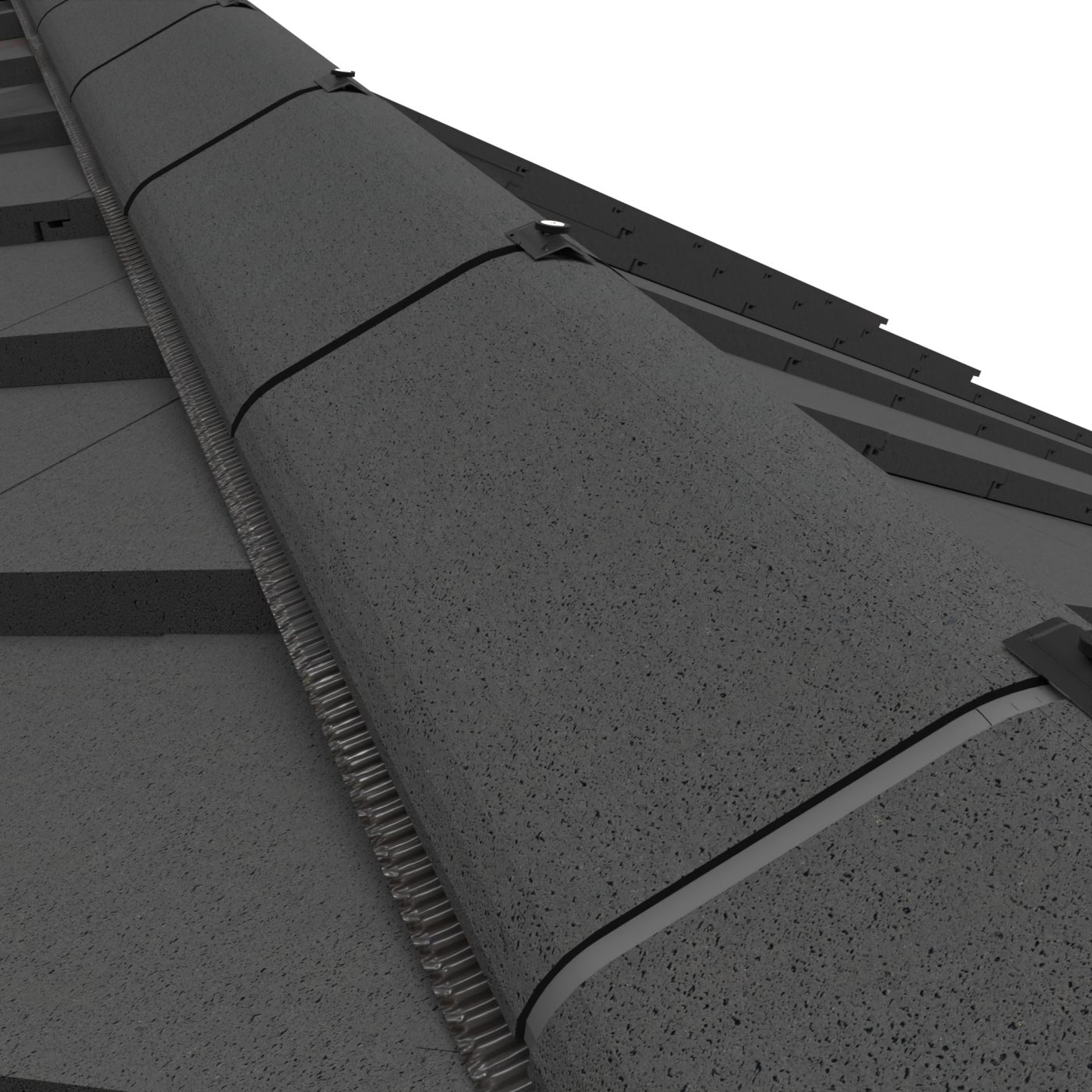

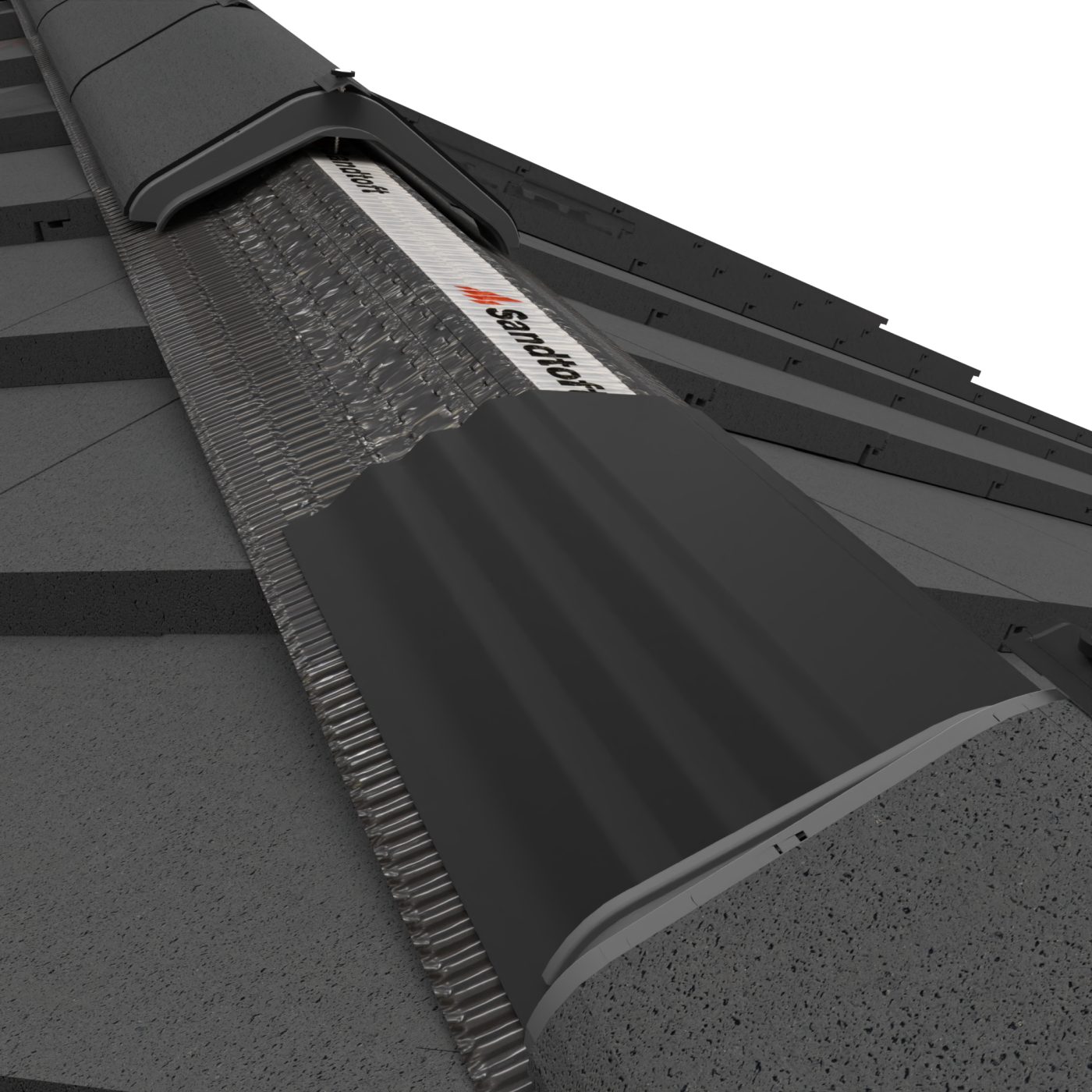

The Sandtoft Roll Hip system is an extremely quick rollout system. Hip joints are available to suit most Sandtoft concrete, Duracoat and clay hip profiles and provide an effective seal between each hip ridge, giving the appearance of a 10mm mortar joint.

Components: Kits to suit 6m of hip

• Ventilated Hip Roll
• Hip Joints
• Batten Straps
• Screws, Washers & Plates

Sold Separately:

• Hip Tray (1m)

Compatibility:
Available in three options for use with

• Concrete & Duracoat® Segmental Ridges 457mm
• Concrete & Duracoat® Multi Angle Ridges 457mm*
• Clay Third Round Ridges 305 – 355mm

Suitable for use with most clay, concrete tiles and slates (excluding sandfaced tiles).

*This kit suits both Ridge and Hip Systems

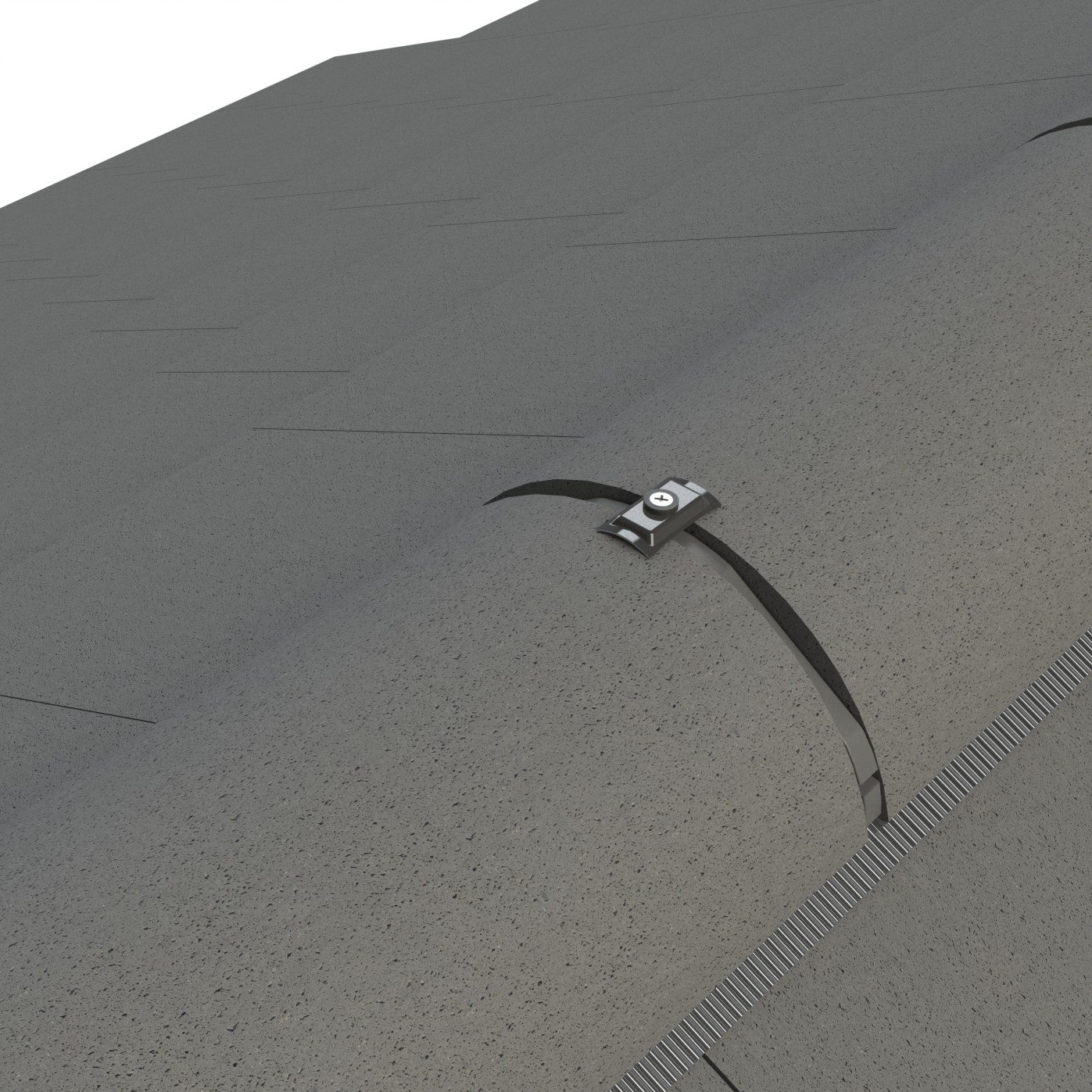

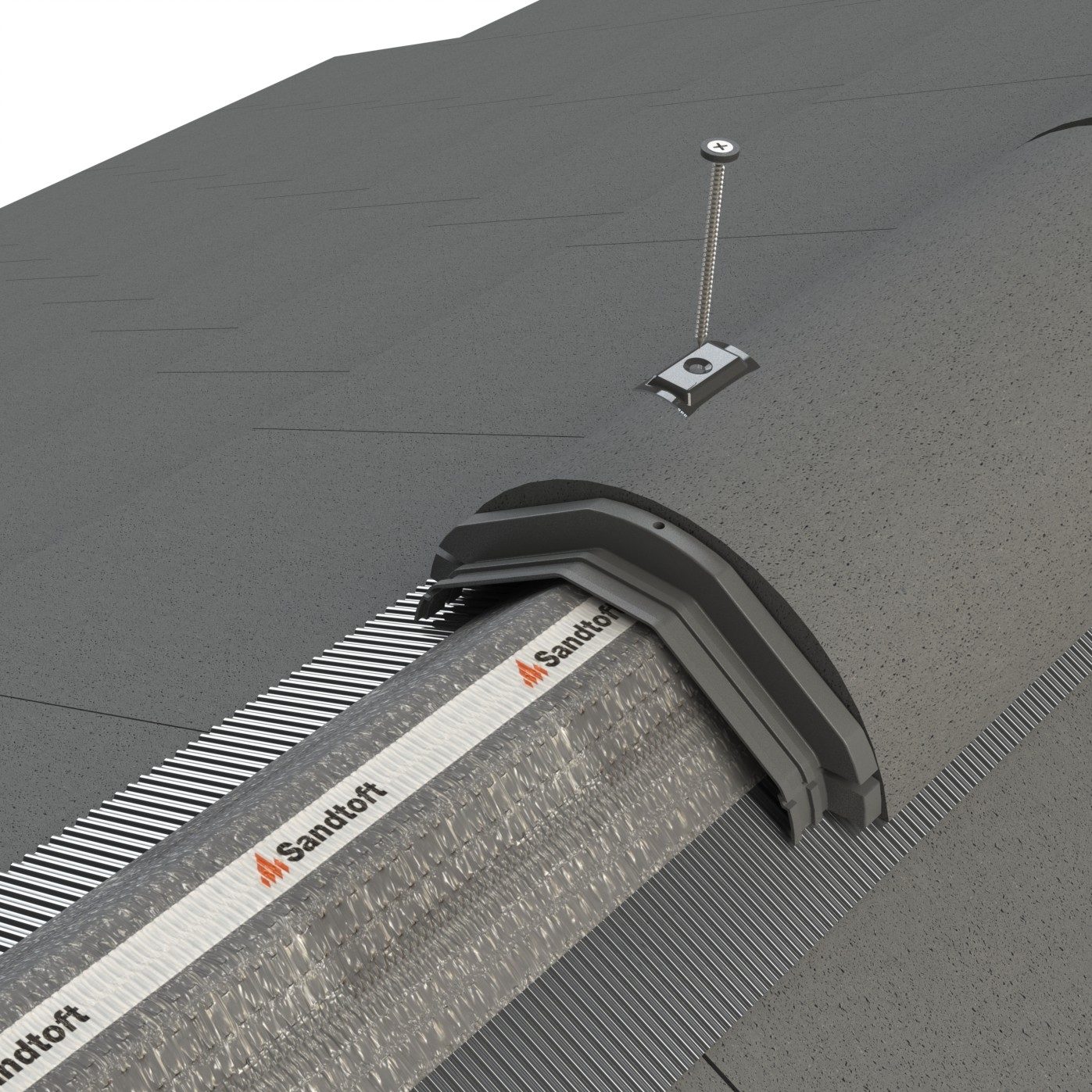

The Multiversal Ridge and Hip system is a low cost, easy and quick to install system providing a secure and mortar-free fix solution at ridge and hip.

Components: Kits to suit 6m of ridge/hip

• Ventilated ridge roll
• Ridge joints
• Batten straps
• Screws, washers and fixing plates

Sold separately:

• Hip Trays

Compatibility:

• Concrete and Duracoat® Half Round Ridges 457mm
• Concrete and Duracoat® Multi Angle Ridges 457mm *

*This kit suits both Ridge and Hip Systems
