Hip Systems

Dry hip systems are a modern alternative to mortar bedding

Our dry hip systems have been designed as an easy to install dry fix solution to complement the dry ridge systems.

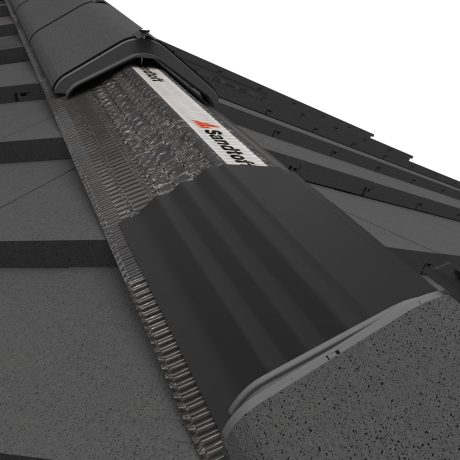

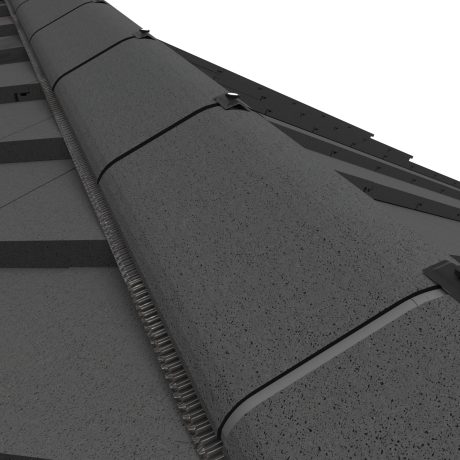

Sandtoft Roll Hip System

The Sandtoft Roll Hip system is an extremely quick rollout system. Hip joints are available to suit most Sandtoft concrete, Duracoat and clay hip profiles and provide an effective seal between each hip ridge, giving the appearance of a 10mm mortar joint.

Components: Kits to suit 6m of hip

  • Ventilated Hip Roll
  • Hip Joints
  • Batten Straps
  • Tail & Head Clips
  • Screws, Washers & Plates

Sold Separately:

  • Hip Tray (1m)

Compatibility:
Available in three options for use with

  • Concrete & Duracoat® Segmental Ridges 457mm
  • Concrete & Duracoat® Multi Angle Ridges 457mm
  • Clay Third Round Ridges 305 – 355mm

Suitable for use with most clay, concrete tiles and slates (excluding sandfaced tiles).

Britlock Mitred Hip

The Britlock mitred hip provides a neat and secure hip detail without the need for hip tiles. Slates, slate-and-a-half slates or double slates are cut to form a neat junction.

Components: Packs to suit 10 courses of tiles on one hip

  • Hip Soaker Unit
  • Clips
  • Screws

Compatibility:

The BritLock mitred hip system is suitable for roof pitches down to 22.5° and up to a maximum roof pitch of 55° on hips that are 90° on plan.

Download roof system selector guide

Preparing download ... Download (1)

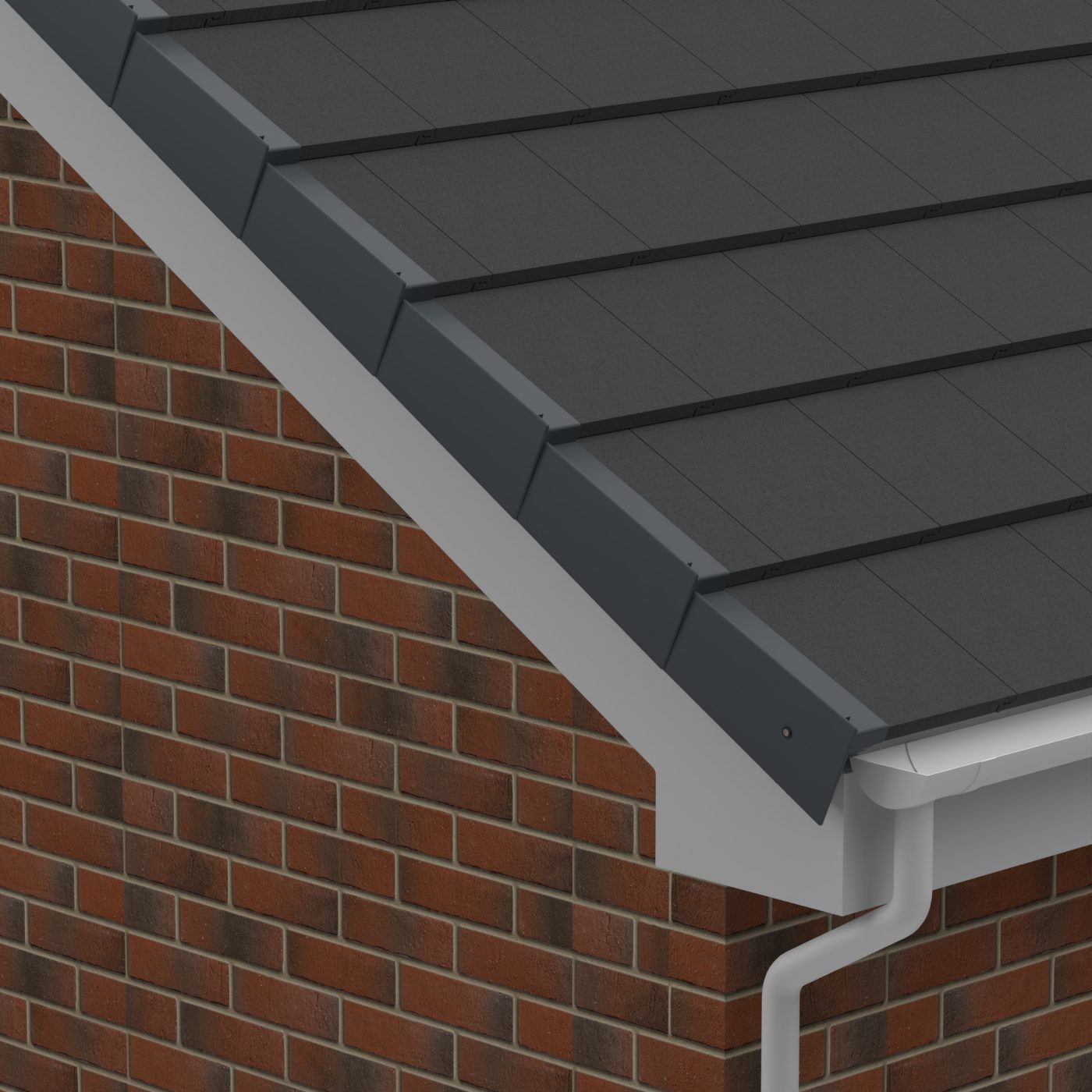

An image of a continuous dry verge product.
