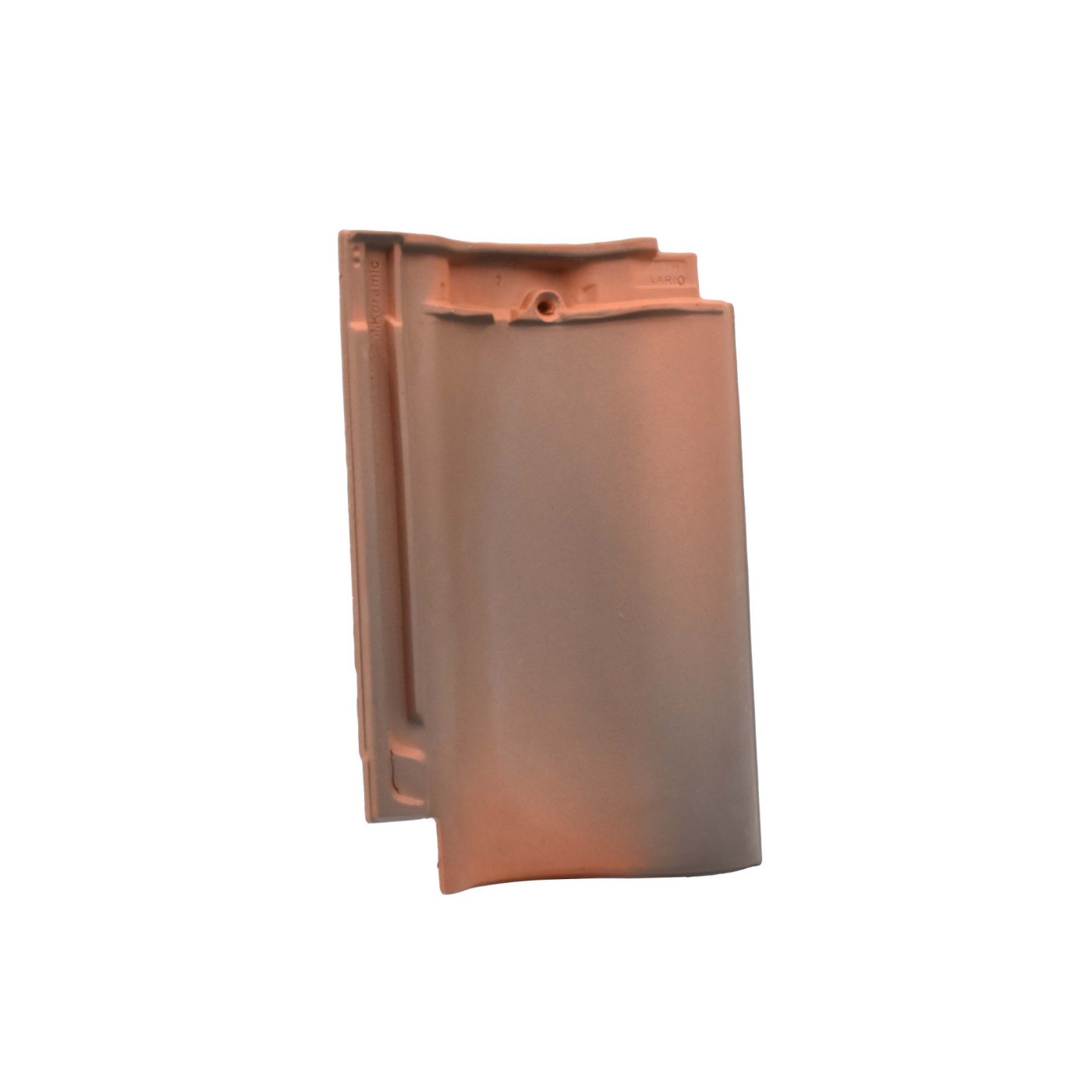

New County Pantile Mixed Russet

A classic pantile shape with the added performance benefit of interlocking weather bars.

Minimum Roof Pitch:
22.5 degrees

Headlap:
Minimum 62mm
Maximum 77mm

Covering Capacity:
15.5 tiles per m2 at 62mm headlap

Maximum Weight Per Sqm 39.7 kg
Quantity Per Pallet 378

Length x Width
Length x Width
382 x 256 mm
Cover Width
Cover Width
Hanging Length
Hanging Length
355 mm
Profile Depth
Profile Depth
65 mm
Minimal Batten Gauge
Minimal Batten Gauge
305 mm
Maximum Batten Gauge
Maximum Batten Gauge
320 mm

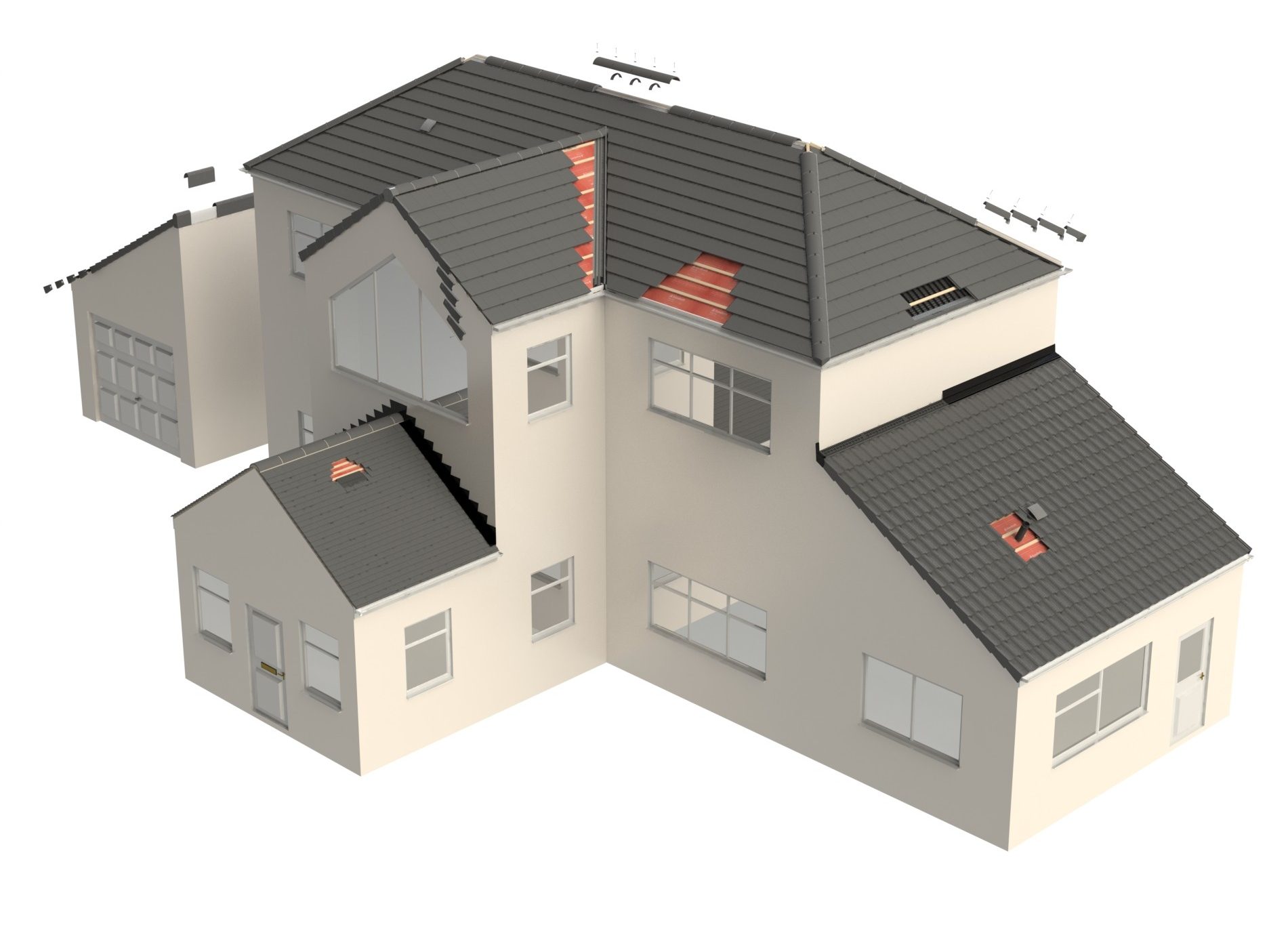

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

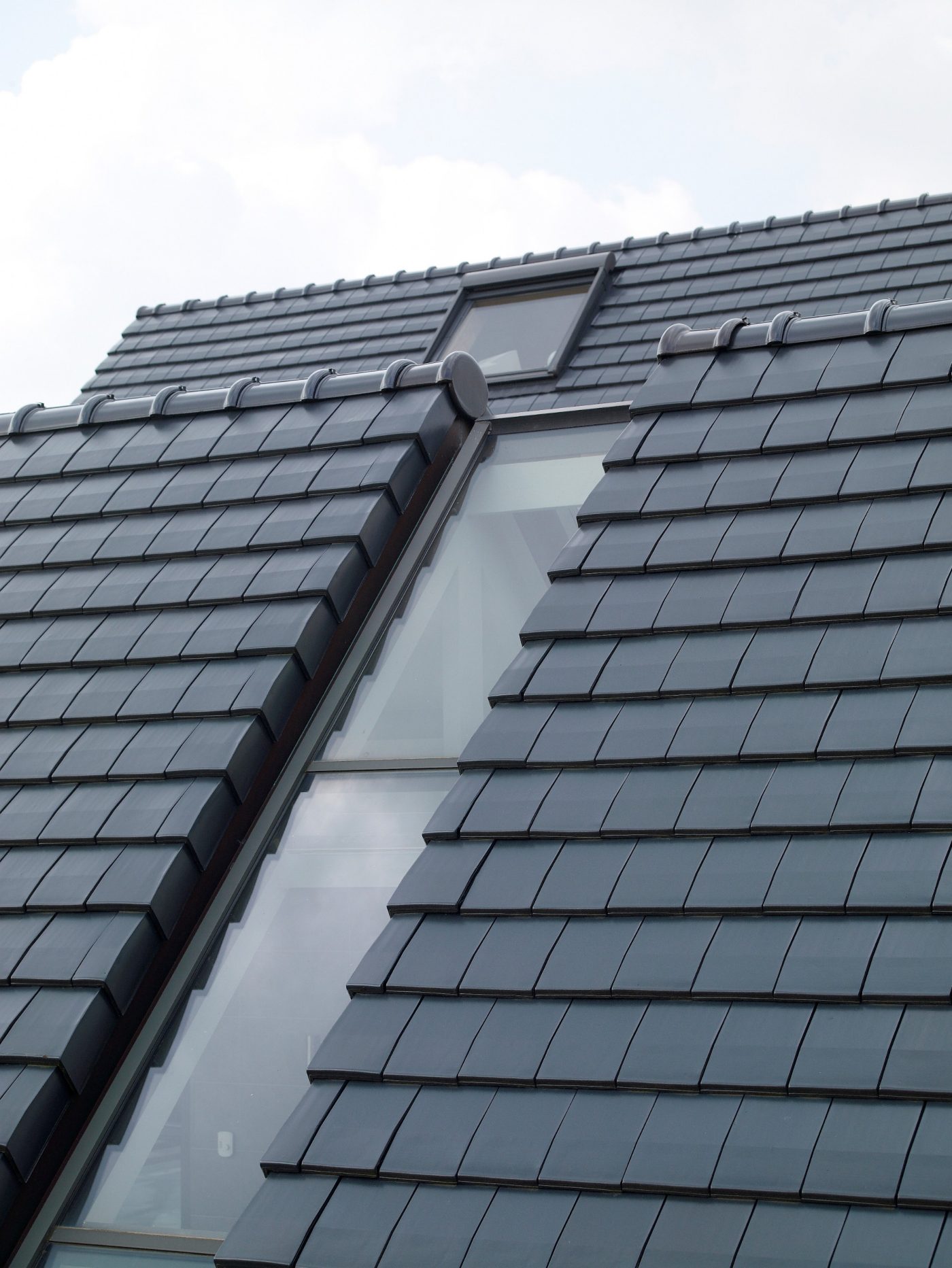

Reference photo new construction single family in De Pinte
