Understanding pieces per m² for roof tiles

When selecting a roof tile, whether for your own home or on behalf of a customer, the covering capacity, often referred to as pieces per square metre (pieces per m²), is an essential consideration. This factor influences aesthetics, cost, installation time, and may also have structural implications.

Every roof tile has a declared pieces per m² value, which indicates how many tiles are required to cover a 1m x 1m area. This figure is calculated using the tile’s batten gauge and cover width. Tiles with a fixed batten gauge have a set pieces per m², while tiles with a variable gauge will have a range depending on the gauge at which they are installed.

Most modern large-format tiles will require around 10 tiles per m² at their maximum batten gauge. At the opposite end of the spectrum, plain tiles typically require around 60 tiles per m². Across the market, various tile formats fall at different points between these two extremes.

A major implication of pieces per m² is the amount of labour required. Quite simply, the higher the number of tiles needed to cover a given area, the more time and effort is required for installation. This includes not only laying more tiles, but also fixing the additional battens required.

Tiles with a higher pieces per m² are therefore more labour intensive, take longer to install, and often lead to higher installation costs. It is no surprise, then, that large-format tiles such as Danum TLE, remain the most popular choice in the UK for both new‑build and RMI projects. However, tile formats with higher pieces per m² also have their own advantages and characteristics, so covering capacity should never be the sole deciding factor.

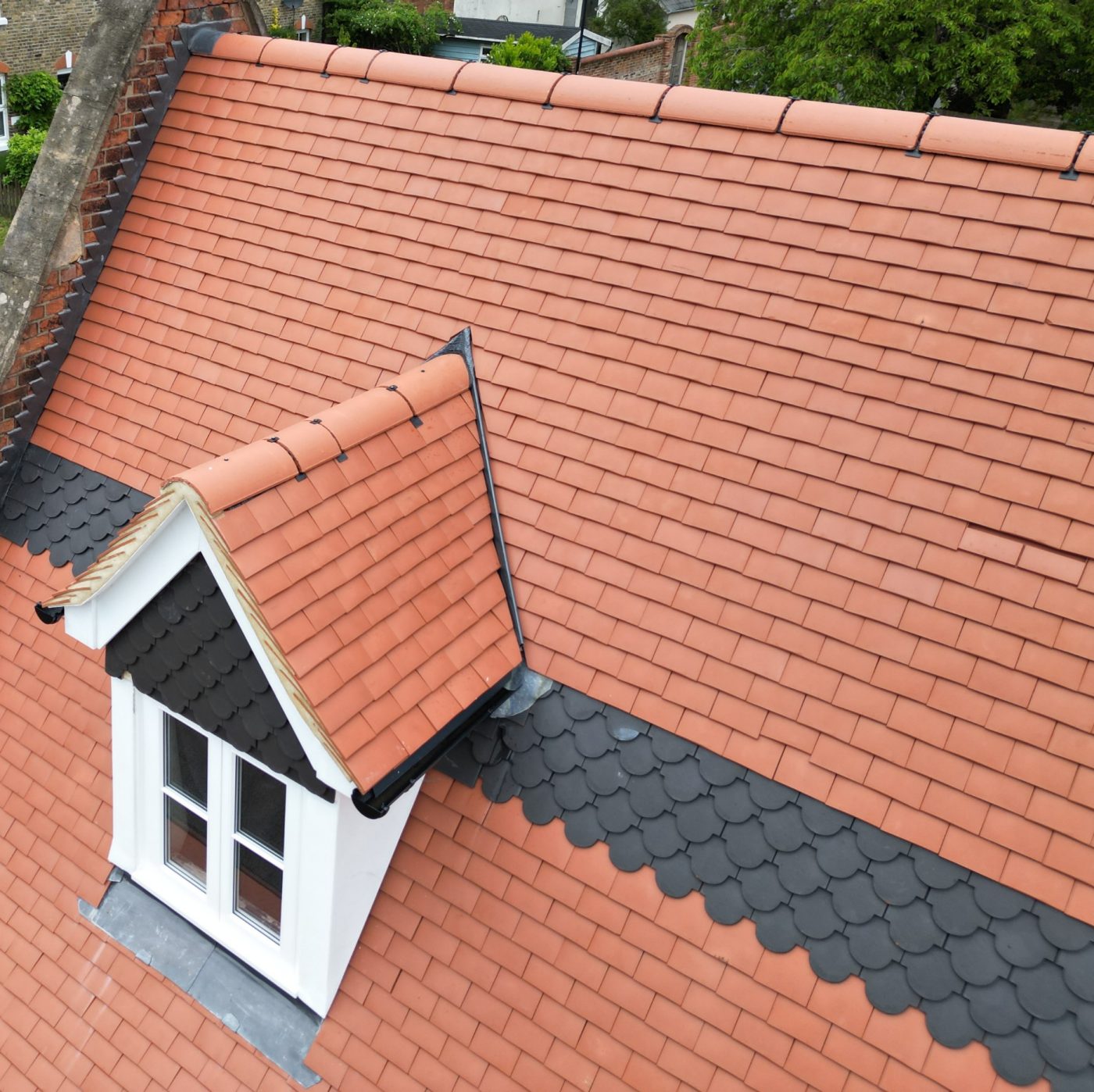

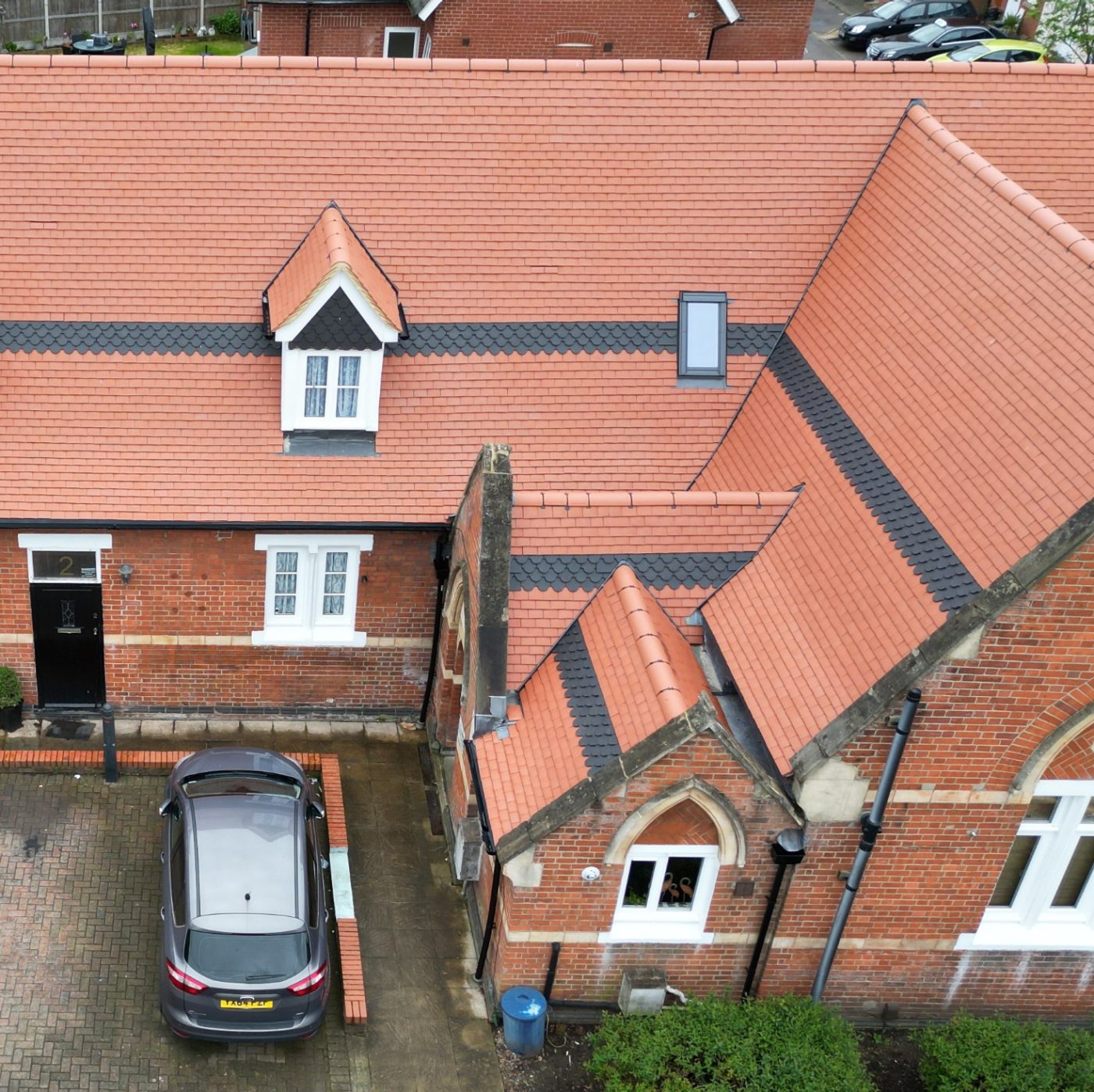

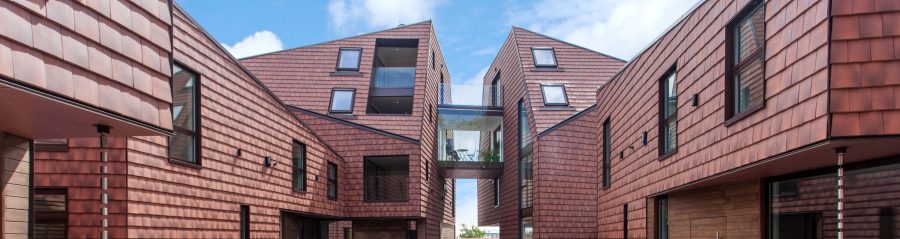

Pieces per m² greatly influence the overall appearance of a roof. For example, compare our Cassius large-format tile with our Humber Natural Red plain medium-format tile. Both are clay, available in the same colours, and have a flat finish—yet once installed, they create distinctly different visual outcomes.

Additionally, the batten gauge at which a tile is laid affects its final look. A tile installed at maximum gauge can present a noticeably different appearance on the roof compared with the very same tile laid at minimum gauge.

Pieces per m² also affect overall roof load. Although there may be a 6:1 difference in the number of plain tiles versus large-format tiles required per square metre, the weight of individual products varies significantly. For this reason, calculations should always focus on weight per m², the weight of a single tile multiplied by the number of tiles per m², rather than the weight of a tile in isolation.

New build

In new-build projects, the roof structure is designed specifically for the chosen tile. This is typically determined by the architect, housebuilder, and structural engineer to ensure compliance with required load‑bearing capacities.

Remedial and refurbishment work

For remedial work, further checks are essential. A structural engineer should always be consulted to ensure that the proposed roof covering is suitable for the existing roof structure. Although the industry often refers to a “like‑for‑like” principle or a ±15% rule of thumb for the load difference*, the most reliable method is to obtain professional structural calculations. These will confirm whether the chosen tile, its individual weight and pieces per m², is appropriate for the existing roof design.

^{*Reference: Building Regulations Approved Document A:2013 clauses: 4.3, 4.4 and 4.7}
